Test E: DTC B1365 - Ignition Start Circuit Short to Battery

PINPOINT TEST E: DTC B1365 IGNITION START CIRCUIT SHORT TO BATTERY Refer to Vehicle/Diagrams, Power Distribution/SJB for schematic and connector information.

Normal Operation
The ignition switch START circuit provides fused battery voltage along circuits 1522 (DG) to the smart junction box (SJB) when the key is in the START position.

Possible Causes
^ Circuit shorted
^ Ignition switch
^ SJB

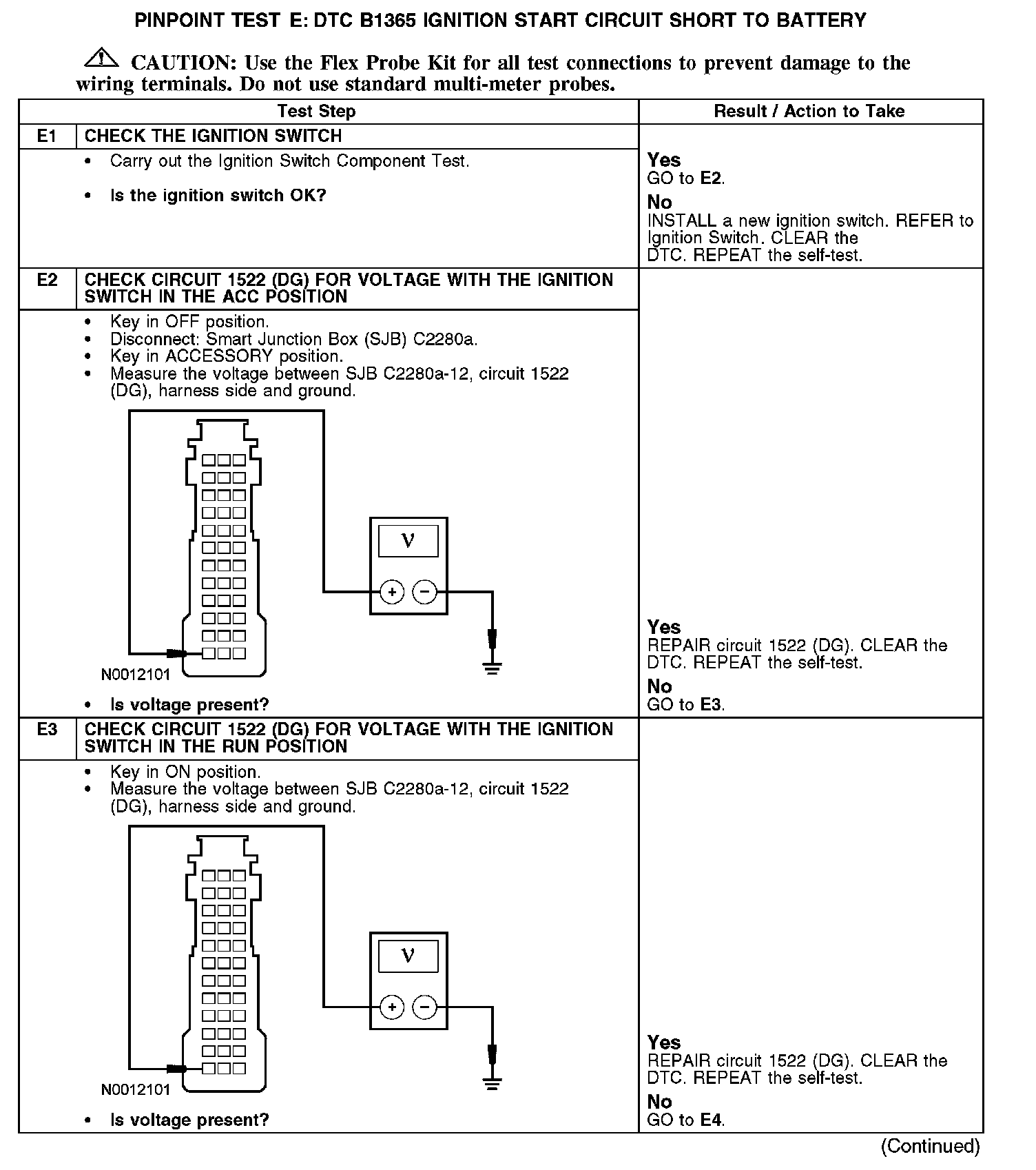

E1-E3:

E4:
