Power Steering Fluid Reservoir: Service and Repair

Power Steering Fluid Reservoir

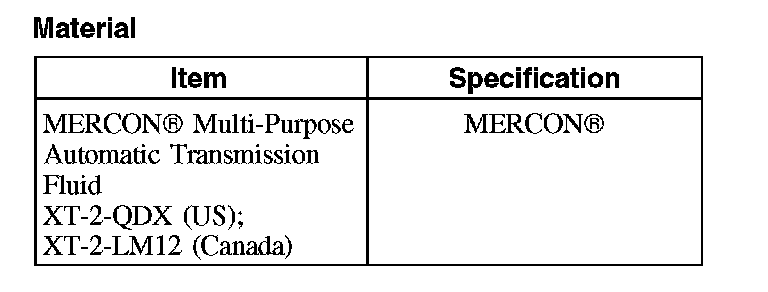

Material:

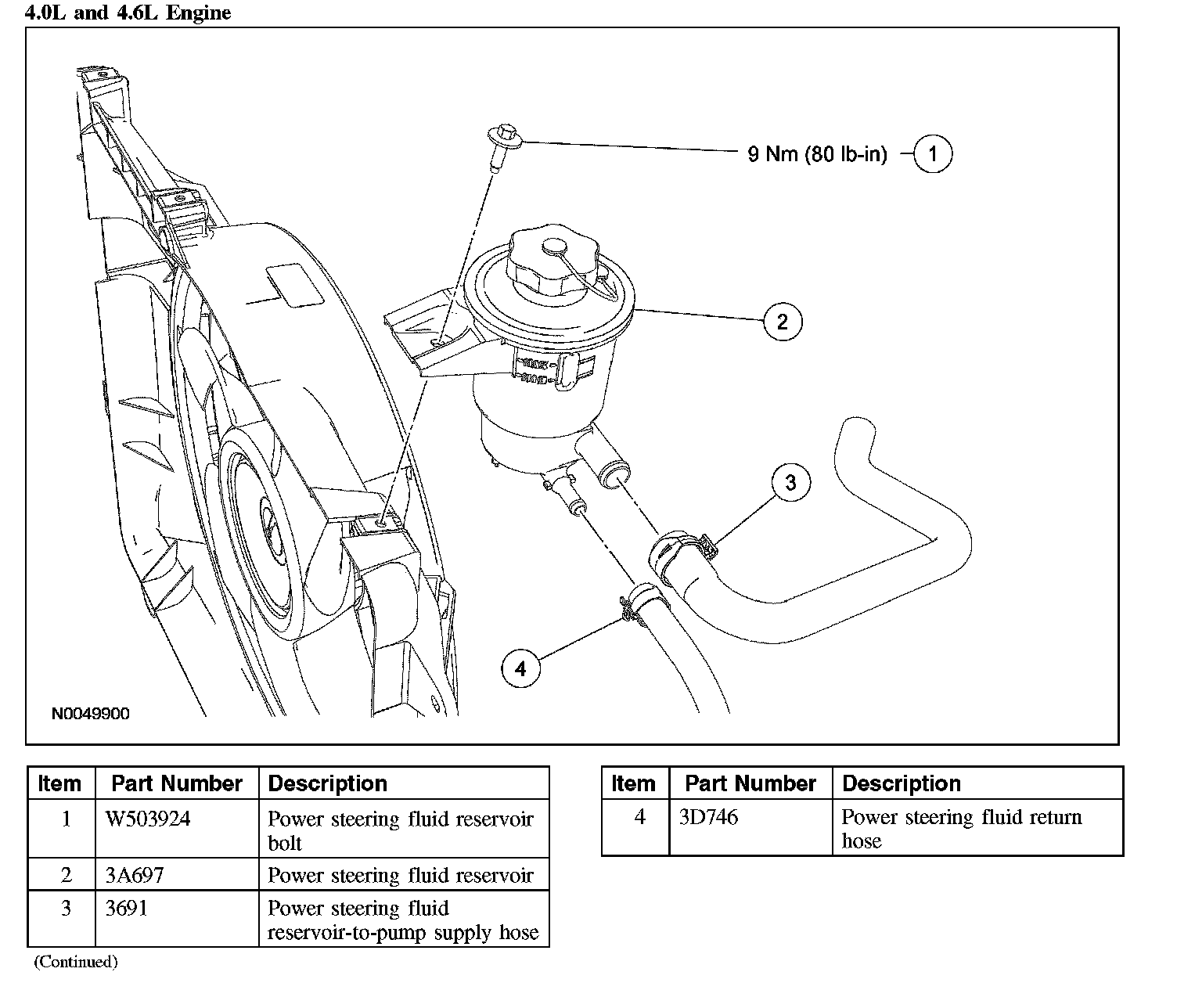

4.0L and 4.6L Engine:

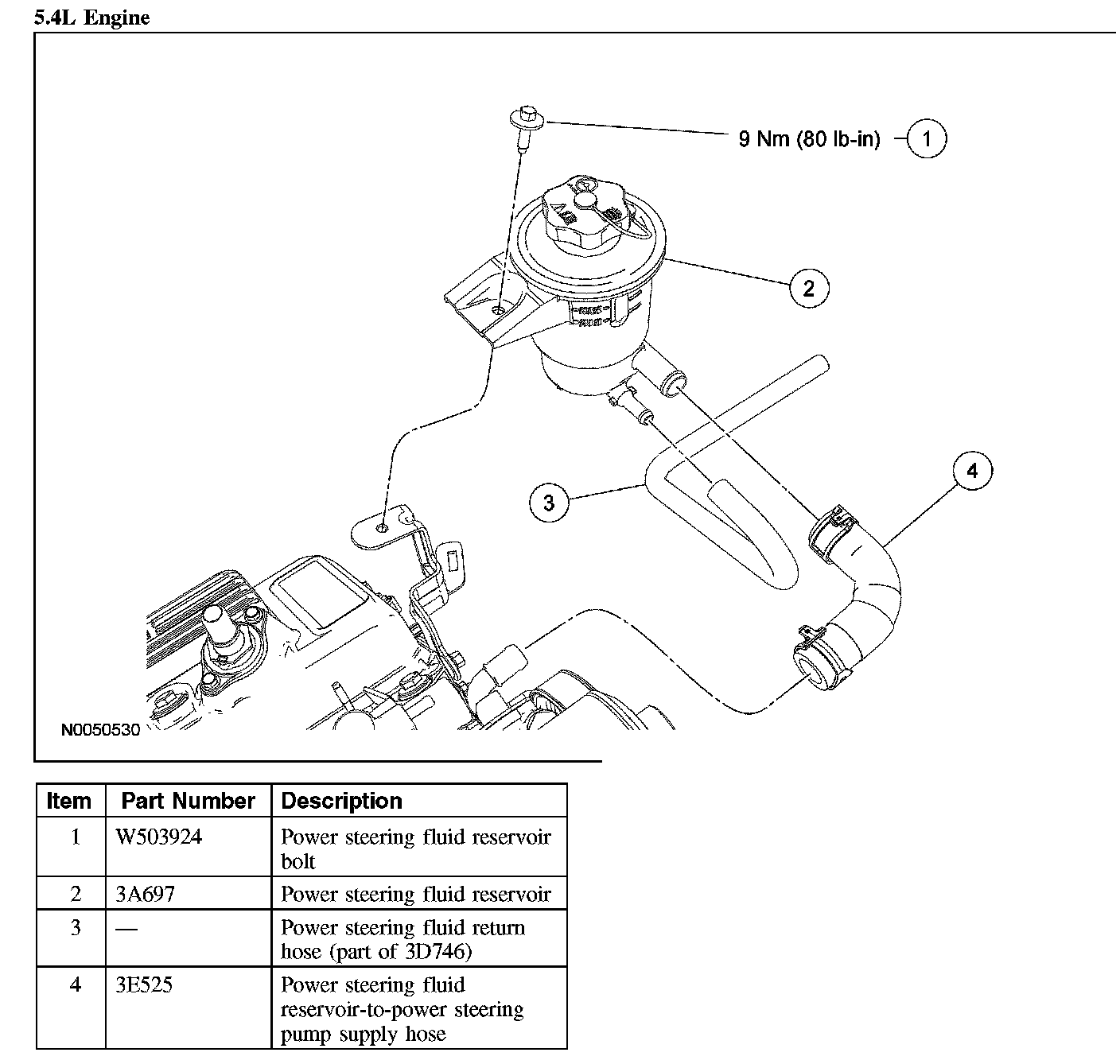

5.4L Engine:

Removal and Installation

CAUTION: When repairing the power steering system, care should be taken to prevent the entry of contaminants or premature failure of the power steering components can result.

1. Using a suitable suction device, drain the power steering fluid reservoir.
2. Remove the power steering fluid reservoir bolt.
^ To install, tighten to 9 Nm (80 inch lbs).
3. Release the clamp and disconnect the power steering pump supply hose from the power steering reservoir.
4. Release the clamp, disconnect the fluid return hose and remove the power steering fluid reservoir.
5. To install, reverse the removal procedure.
^ Fill the power steering system.
