Home >> Ford >> 2007 >> Mustang V8-5.4L SC VIN S >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Band Adjustment and Torque Chart

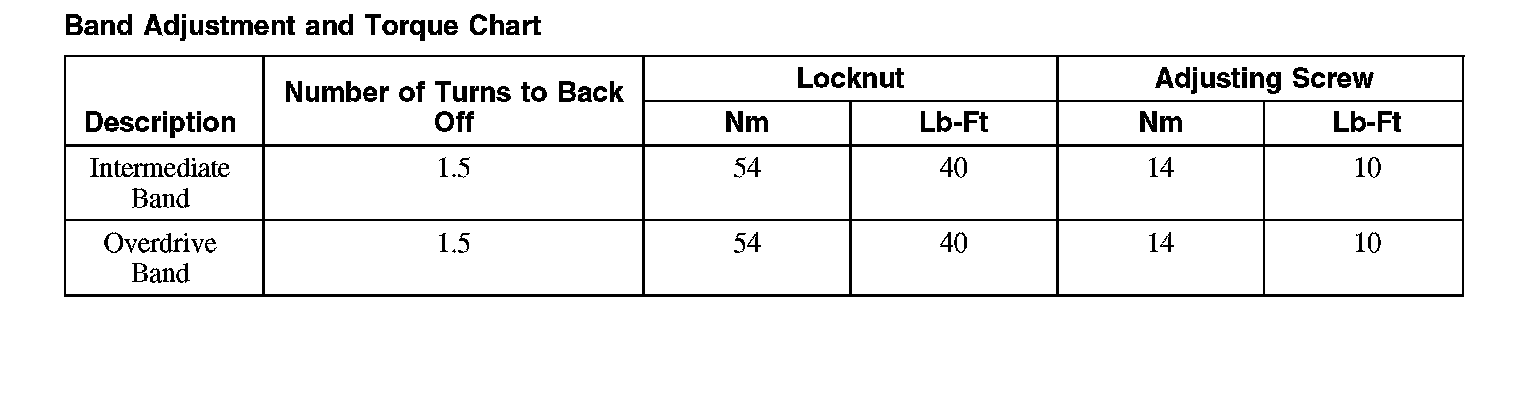

Band Adjustment and Torque Chart

Band Adjustment and Torque Chart

Band Adjustment and Torque Chart:
