Brake Light Switch: Service and Repair

STOPLAMP SWITCH







Removal and Installation

CAUTION: Do not service the brake pedal, brake booster, or master cylinder without first removing the stoplamp switch. Do not install the stoplamp switch without the brake pedal arm secured to the brake booster push rod. Do not press or pull on brake pedal when installing or removing the stoplamp switch otherwise misadjustment or damage to the stoplamp switch could occur.

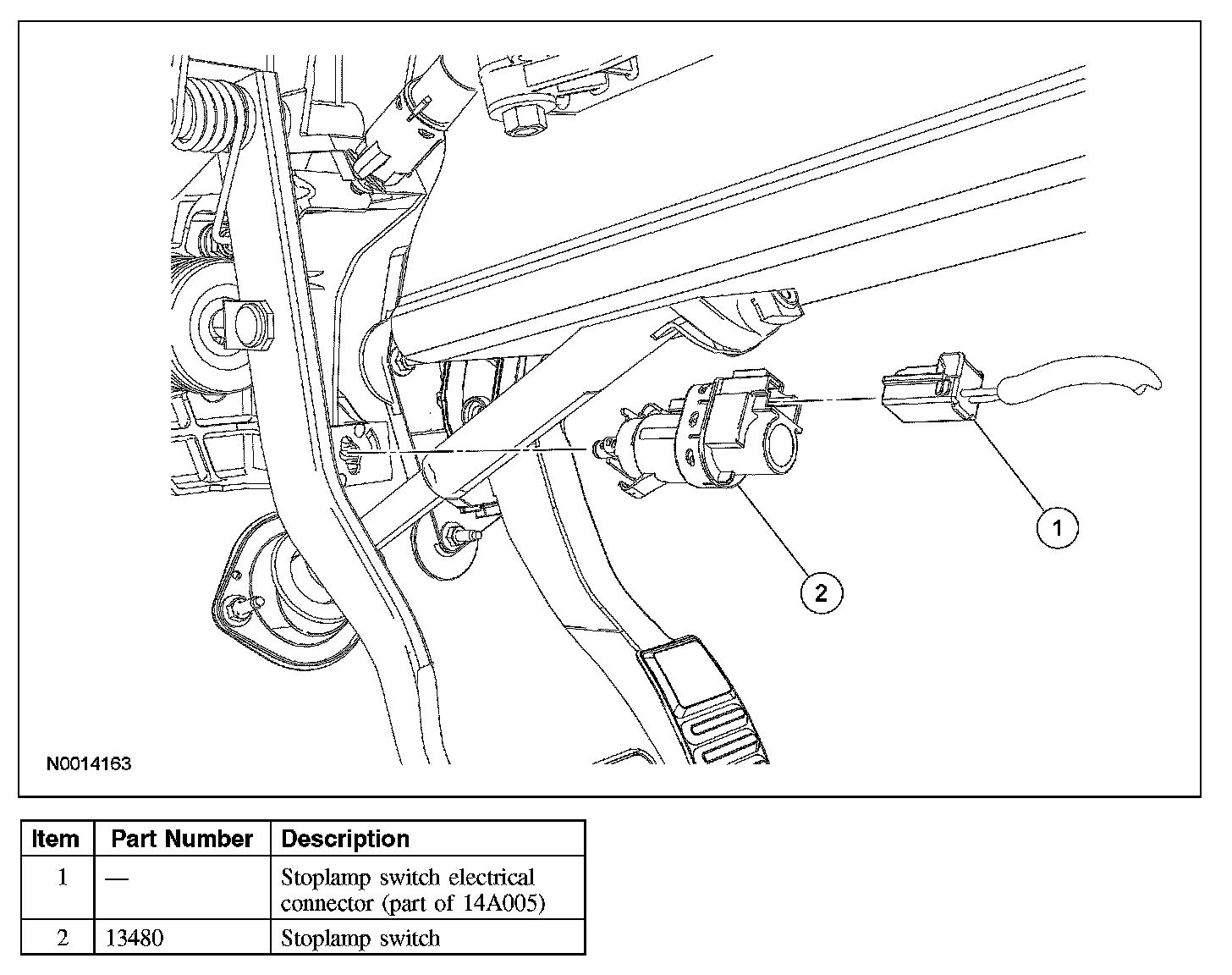

1. NOTE: Rotate the stoplamp switch clockwise approximately 1/8 turn to remove.

Remove the stoplamp switch.
- Disconnect the electrical connector.

2. To install, reverse the removal procedure.
