Traction Control Switch: Service and Repair

Traction Control Switch

Removal and Installation
1. Remove the instrument panel center finish panel.

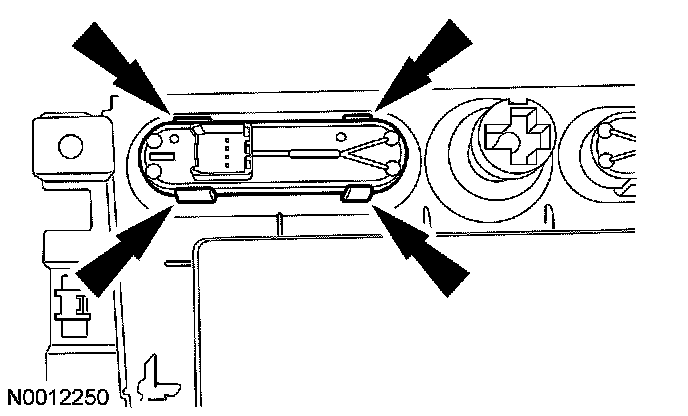

2. Press the retaining tabs and remove the switchblock.





3. To install, reverse the removal procedure.
