Engine Temperature Sensor: Locations

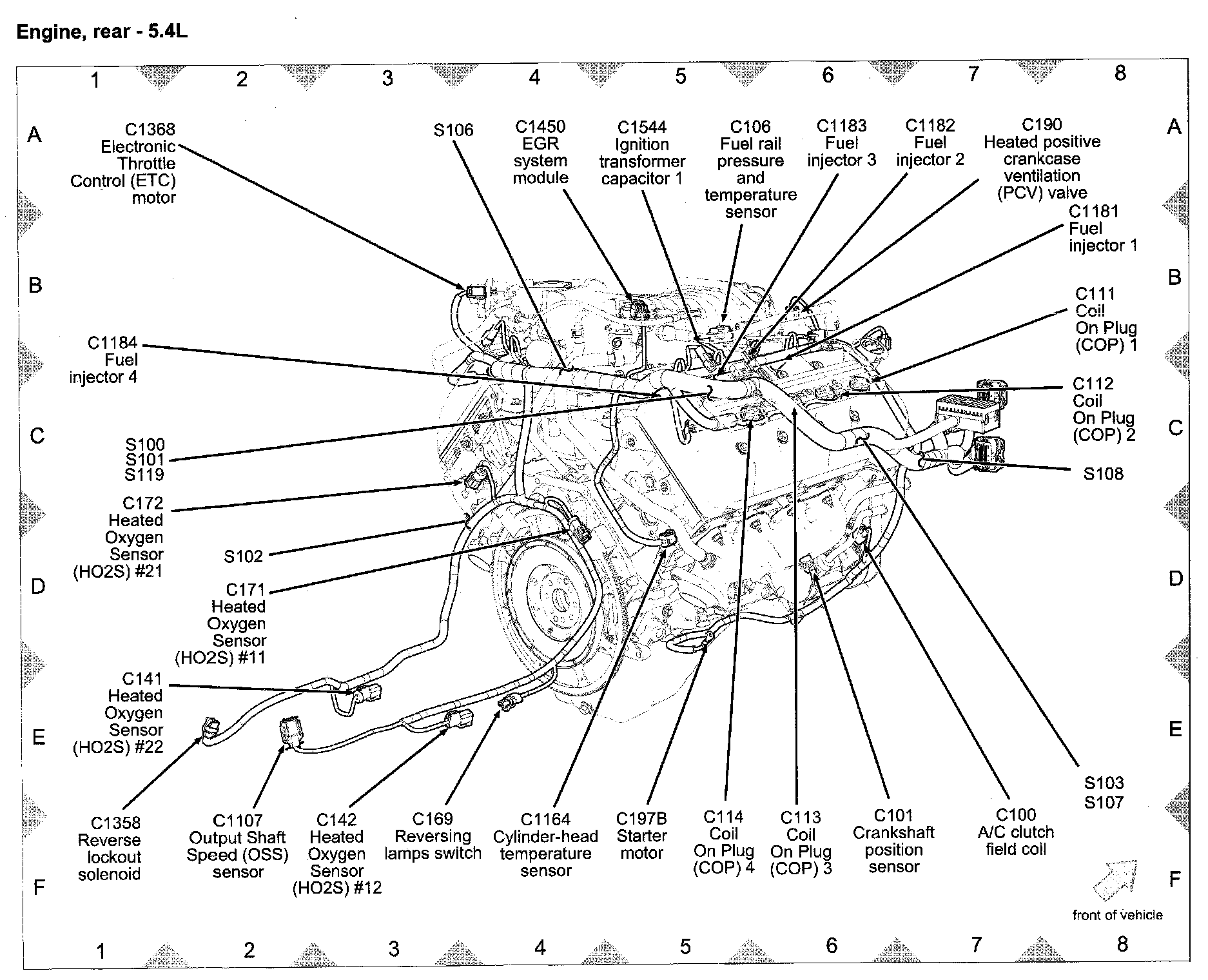

View 151-9 (Engine, Rear - 5.4L):



View 151-10 (Automatic Transmission):



View 151-11 (Manual Transmission - T5):



View 151-12 (Manual Transmission - TR3650):
