Supercharger Cooling System Draining, Filling and Bleeding

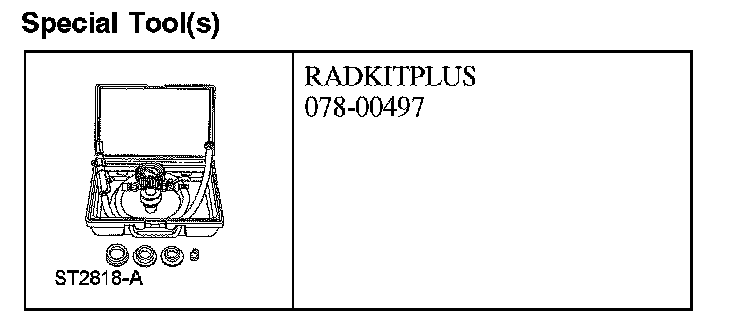

Supercharger Cooling System Draining, Filling and BleedingSpecial Tool(s):
Material:
Draining
WARNING: Never remove the pressure relief cap while the engine is operating or when the cooling system is hot. Failure to follow these instructions can result in damage to the cooling system or engine or personal injury. To avoid having scalding hot coolant or steam blow out of the degas bottle when removing the pressure relief cap, wait until the engine has cooled, then wrap a thick cloth around the pressure relief cap and turn it slowly. Step back while the pressure is released from the cooling system. When certain all the pressure has been released, (still with a cloth) turn and remove the pressure relief cap.
CAUTION: The coolant must be recovered in a suitable, clean container for reuse. If the coolant is contaminated, it must be recycled or disposed of correctly and replaced.
CAUTION: Vehicle cooling systems are filled with Motorcraft Premium Gold Engine Coolant with Bittering Agent (US only) VC-7-B (US); CVC-7-A (Canada); or equivalent meeting Ford specification WSS-M97B51-A1 (yellow color). Always fill the cooling system with the same coolant that is present in the system. Do not mix coolant types.
NOTE: Less than 80% of coolant capacity can be recovered with the engine in the vehicle. Dirty, rusty or contaminated coolant requires replacement.
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the 6 bolts and the lower splash shield.
3. Disconnect the radiator-to-charge air cooler (CAC) hose from the radiator and allow the coolant to drain in a suitable container.
- Connect the hose.
4. Install the lower splash shield and the 6 bolts.
- Tighten the bolts to 5 Nm (44 inch lbs.).
Filling and Bleeding with RADKITPLUS
1. Using the special tool, install the RADKITPLUS and follow the manufacturer's instructions to fill and bleed the cooling system.
Filling and Bleeding without RADKITPLUS
CAUTION: Engine coolant provides freeze protection, boil protection, cooling efficiency and corrosion protection to the engine and cooling components. In order to obtain these protections, the engine coolant must be maintained at the correct concentration and fluid level in the degas bottle.
CAUTION: Vehicle cooling systems are filled with Motorcraft Premium Gold Engine Coolant with Bittering Agent (US only) VC-7-B (US); CVC-7-A (Canada); or equivalent meeting Ford specification WSS-M97B51-A1 (yellow color). Always fill the cooling system with the same coolant that is present in the system. Do not mix coolant types.
NOTE: When adding engine coolant, use a 50/50 mixture of engine coolant and clean, drinkable water.
1. To maintain the integrity of the coolant and the cooling system:
1. Add Motorcraft Premium Gold Engine Coolant with Bittering Agent (US only) VC-7-B (US); CVC-7-A (Canada); or equivalent meeting Ford specification WSS-M97B51-A1 (yellow color). Use the same coolant that was drained from the cooling system. Do not mix coolant types.
2. Do not add/mix orange-colored Motorcraft Speciality Orange Engine Coolant VC-2 or equivalent meeting Ford specification WSS-M97B44-D. Mixing coolants may degrade the coolant's corrosion protection.
3. Do not add alcohol, methanol, brine or any engine coolants mixed with alcohol or methanol antifreeze. These can cause engine damage from overheating or freezing.
4. Do not mix with recycled coolant. Use of such coolants can harm the engine and cooling system components.
2. Fill the degas bottle.
3. Start the engine and allow to run until coolant circulation is observed in the degas bottle. Absence of circulation indicates air is trapped in the system.
- Turn the engine off.
4. Add coolant as needed.
5. Repeat the above procedure to make sure all entrapped air is released.
