Front

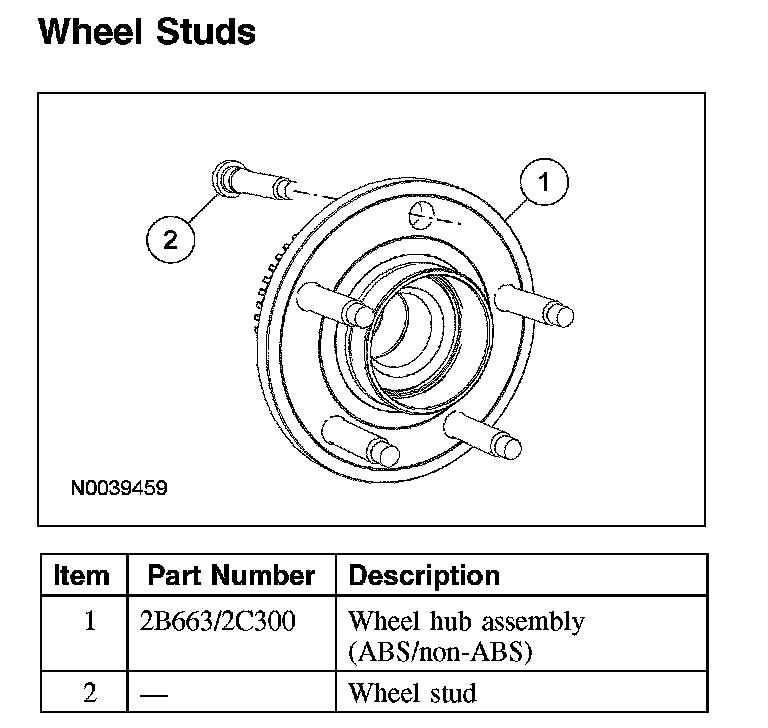

Wheel Studs

Wheel Studs:





Removal
1. Remove the wheel bearing and hub assembly.

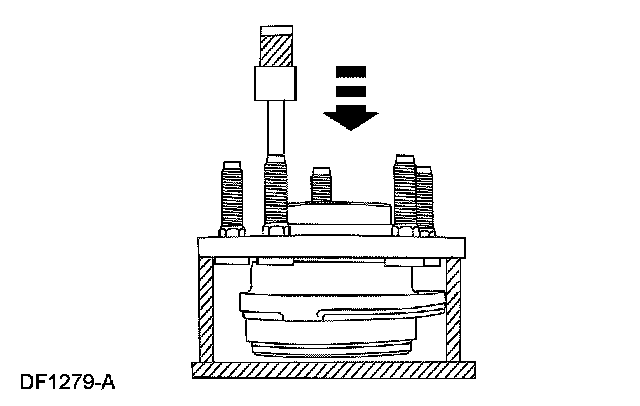

2. Using a press, remove the wheel stud from the wheel bearing and hub assembly.





Installation
1. Using a press, install a new wheel stud.





2. Install the wheel bearing and hub assembly.
