Turn Signal Bulb: Service and Repair

SIDE LAMP/FRONT TURN SIGNAL LAMP BULB







Removal and Installation

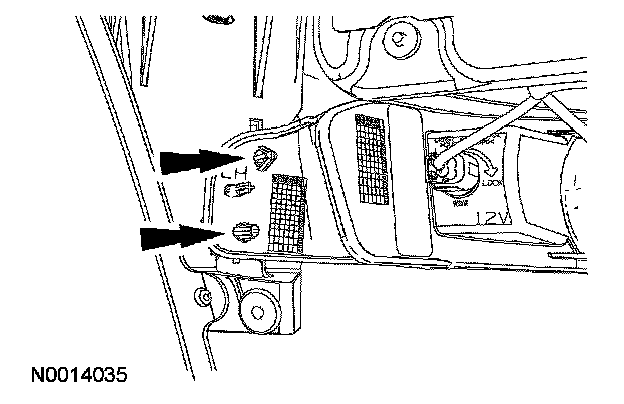

1. Remove the front fender splash shield.

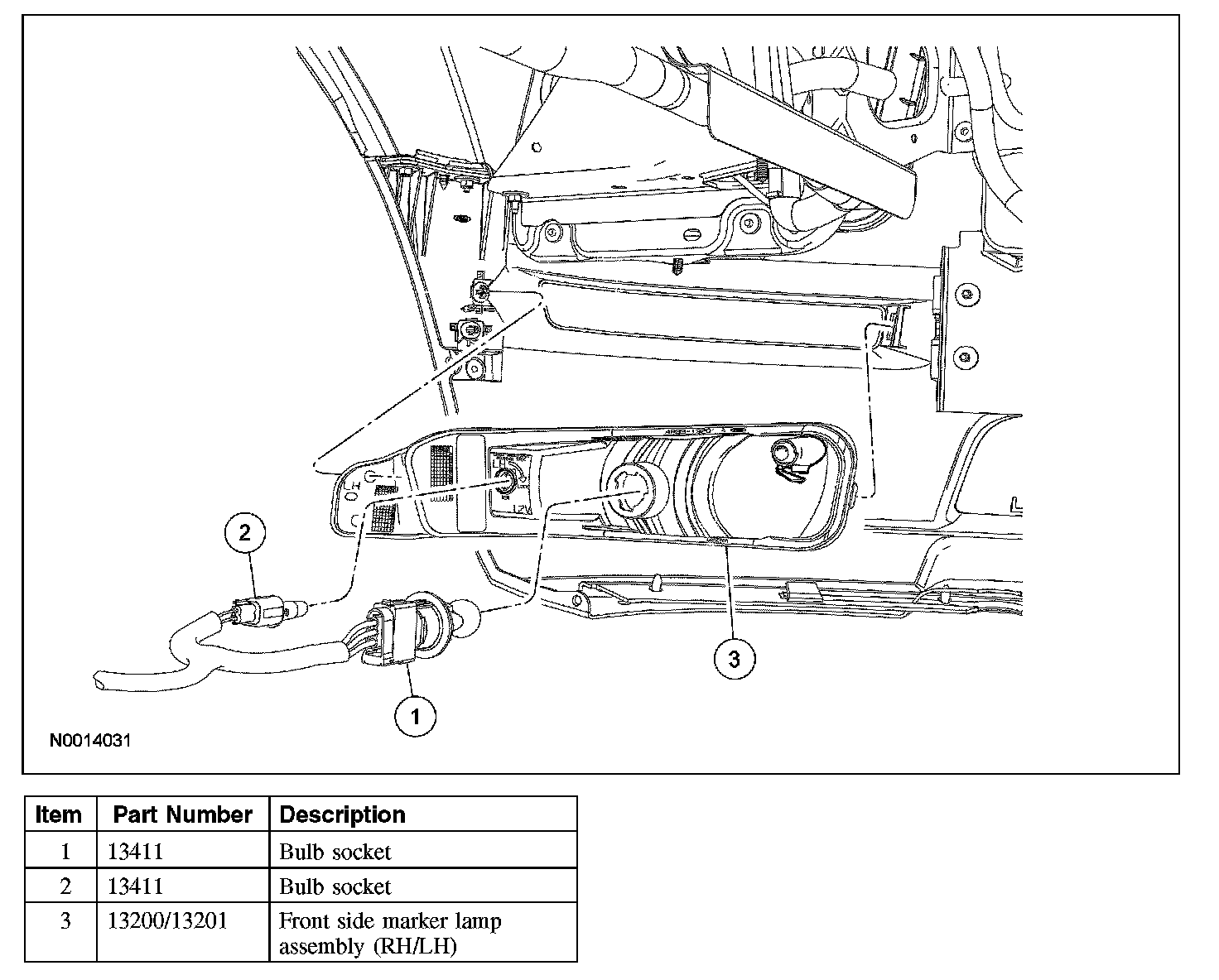

2. Release the 2 locking tabs and remove the front side marker lamp assembly.
- Disconnect the electrical connectors.

3. To install, reverse the removal procedure.
