Horn: Service and Repair

HORN

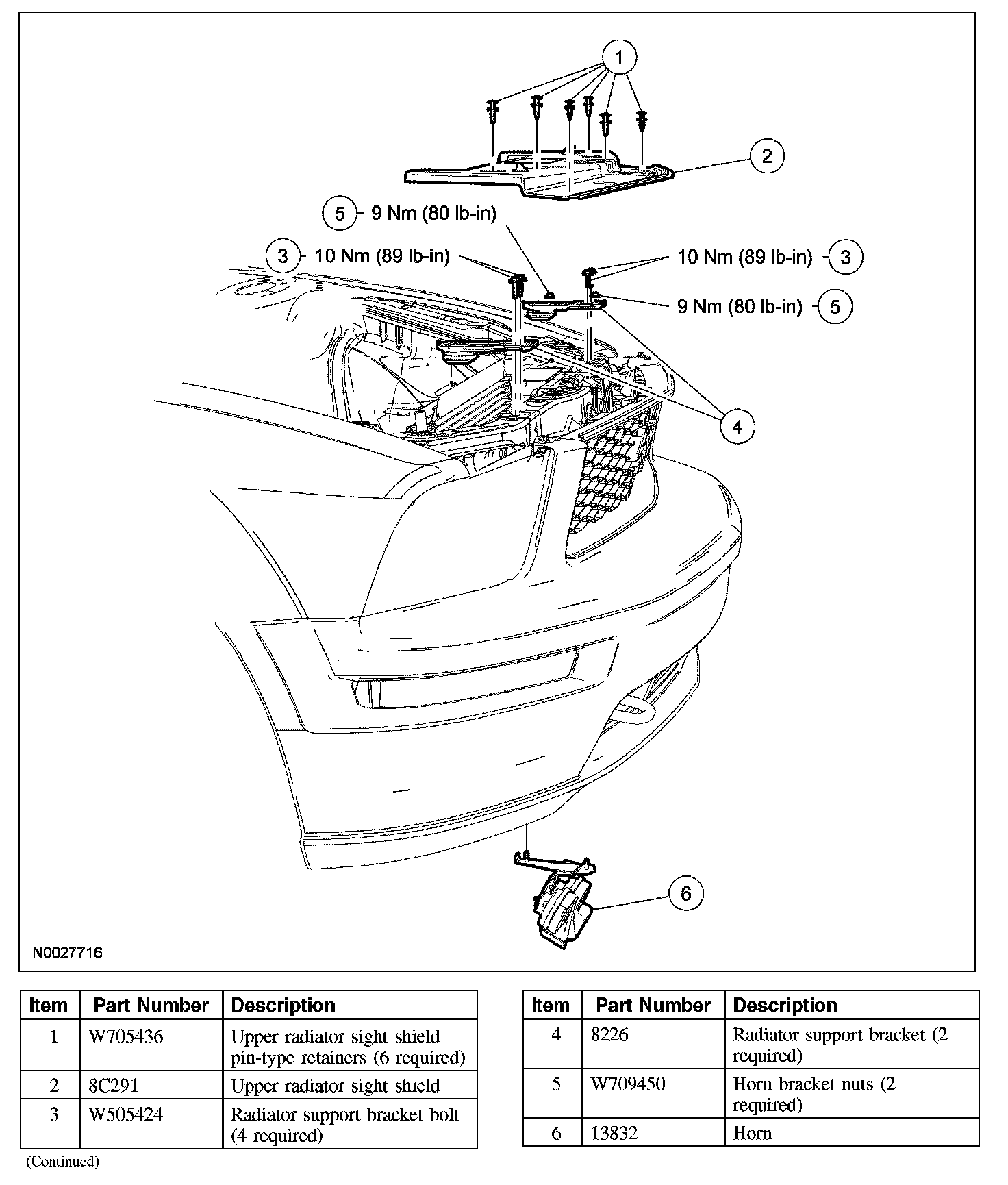

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the 6 pin-type retainers and the upper radiator sight shield.
3. Remove the 4 bolts and the 2 radiator support brackets.
- To install, tighten to 10 Nm (89 lb-in).

4. Position the top of the radiator and condenser assembly toward the engine.
5. Remove the 2 horn bracket nuts.
- To install, tighten to 9 Nm (80 lb-in).

6. If equipped, remove the 6 front bumper cover-to-valance panel screws and remove the valence panel.
7. Disconnect the electrical connector and remove the horn.
8. To install, reverse the removal procedure.
