Headlamp: Service and Repair

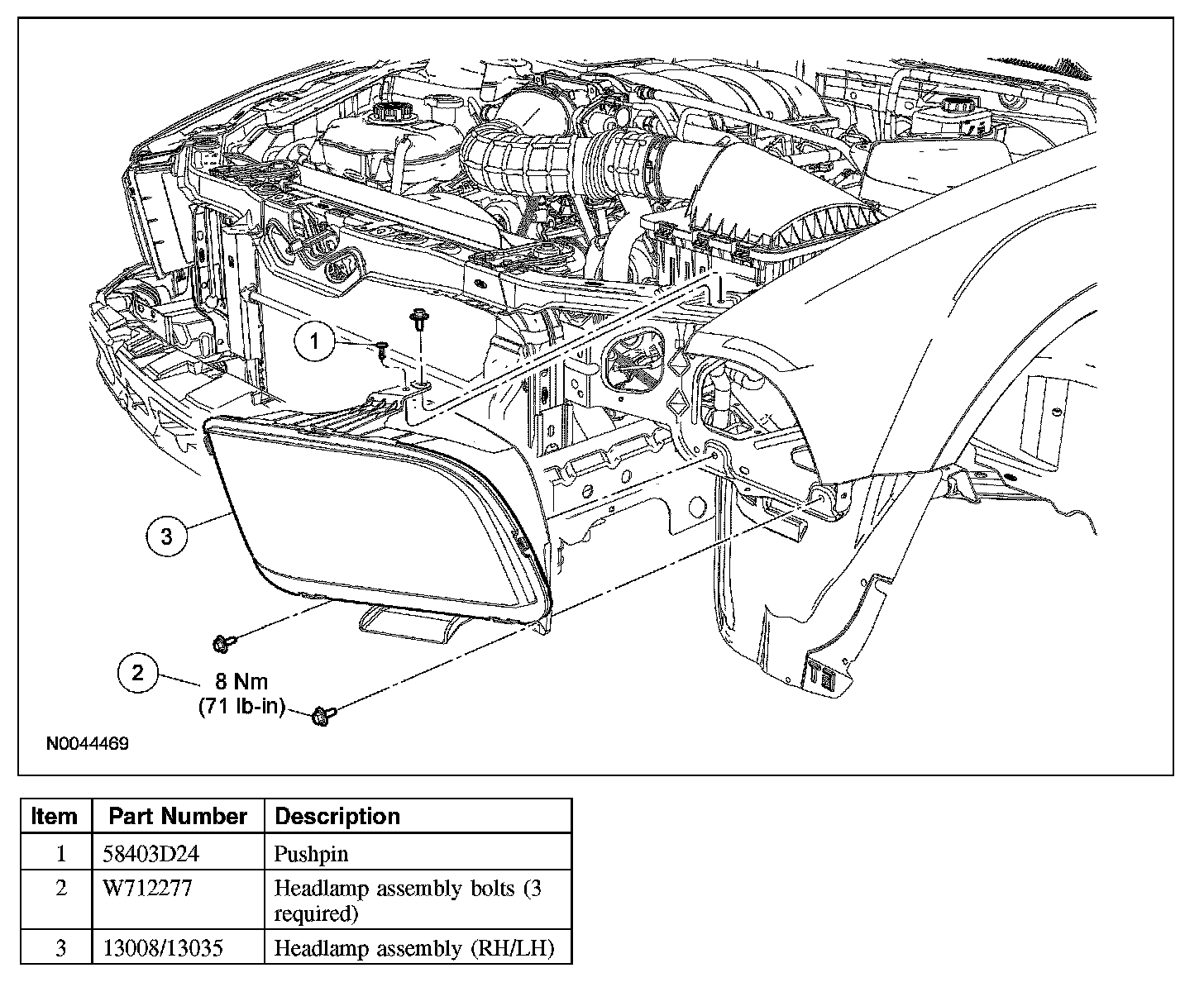

HEADLAMP ASSEMBLY







Removal and Installation
1. Remove the front bumper cover.
2. Remove the pushpin.
3. Remove the 3 bolts and the headlamp assembly.
- Disconnect the electrical connector.
- To install, tighten the bolts to 8 Nm (71 lb-in).

4. To install, reverse the removal procedure.
