Test R: The Fog Lamp On Indicator Is Inoperative

PINPOINT TEST R: THE FOG LAMP ON INDICATOR IS INOPERATIVE

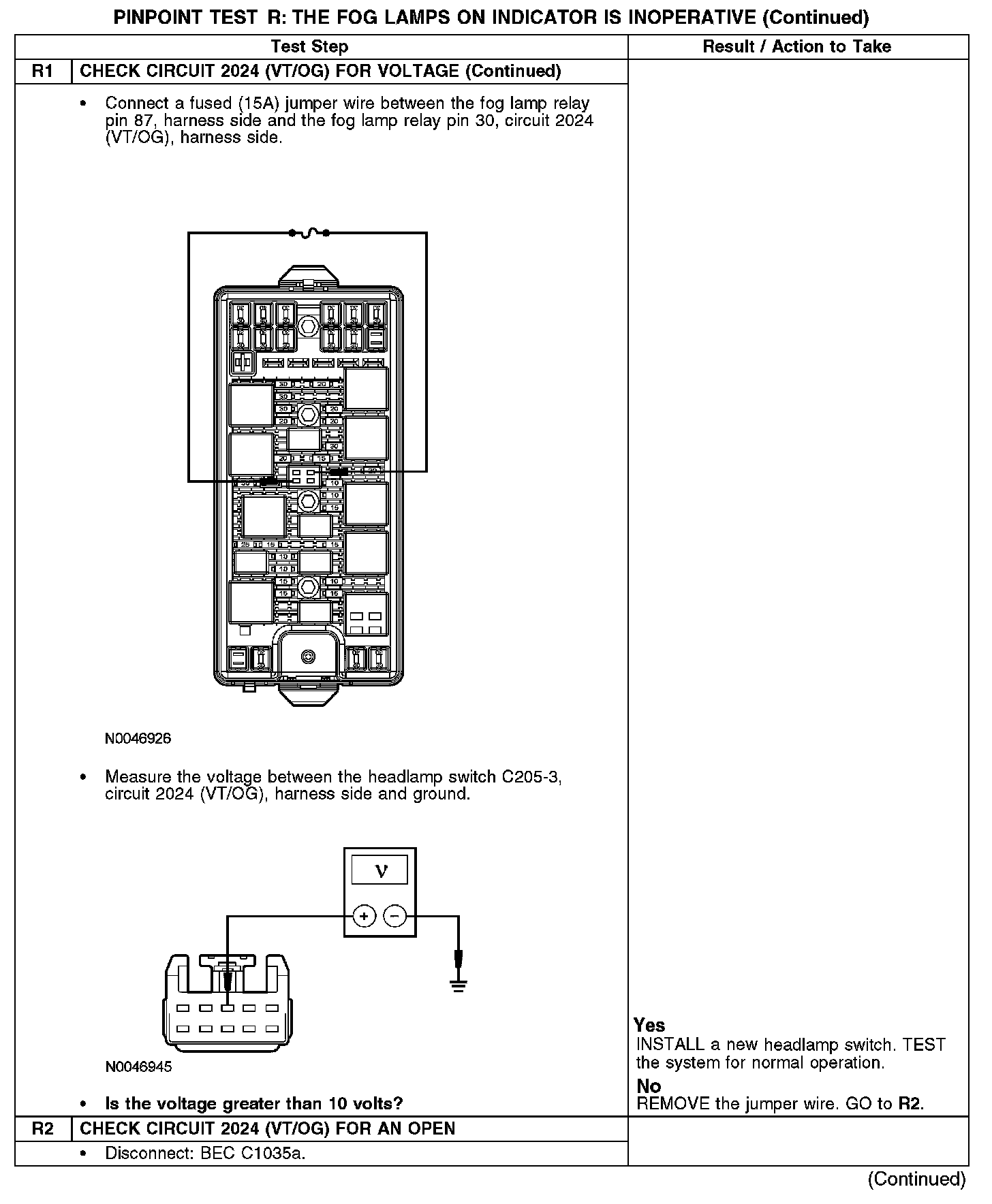

R1:

R1-R2:

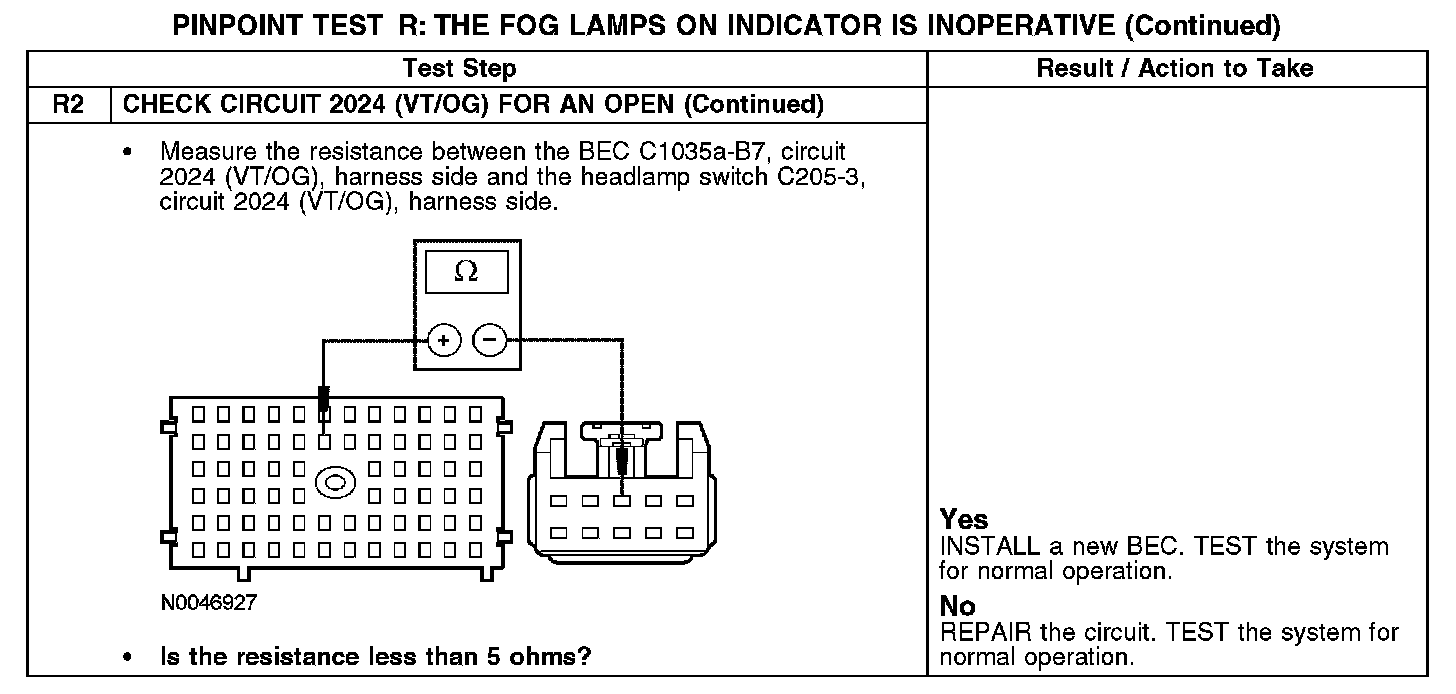

R2 Continued:

Normal Operation
When the fog lamp relay is energized, the bussed electrical center (BEC) routes voltage through circuit 2024 (VT/OG) to the headlamp switch.

Possible Causes
- Circuit 2024 (VT/OG) open
- Headlamp switch
- BEC
