Test P: An Individual Fog Lamp Is Inoperative

PINPOINT TEST P: AN INDIVIDUAL FOG LAMP IS INOPERATIVE

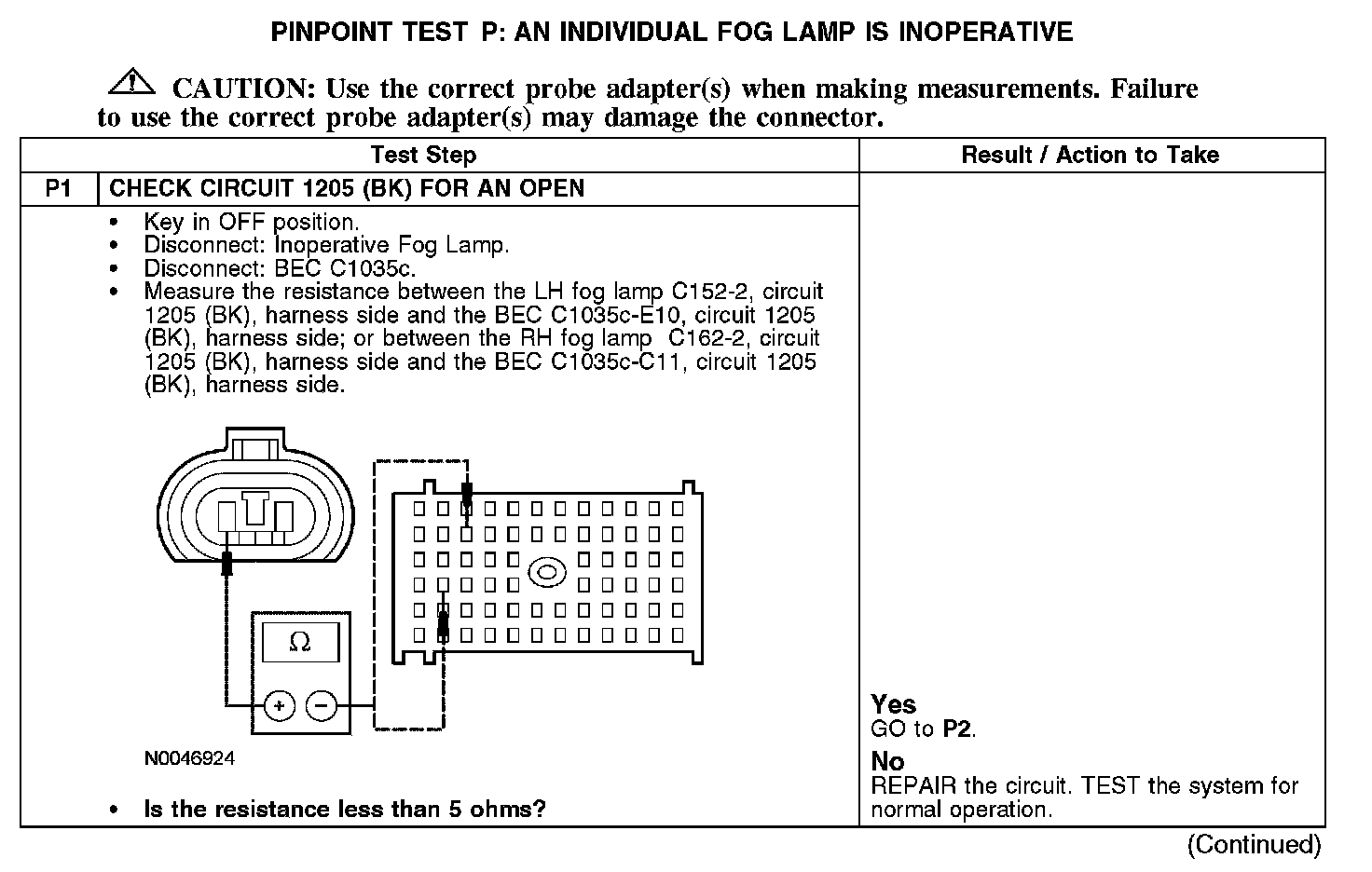

P1:

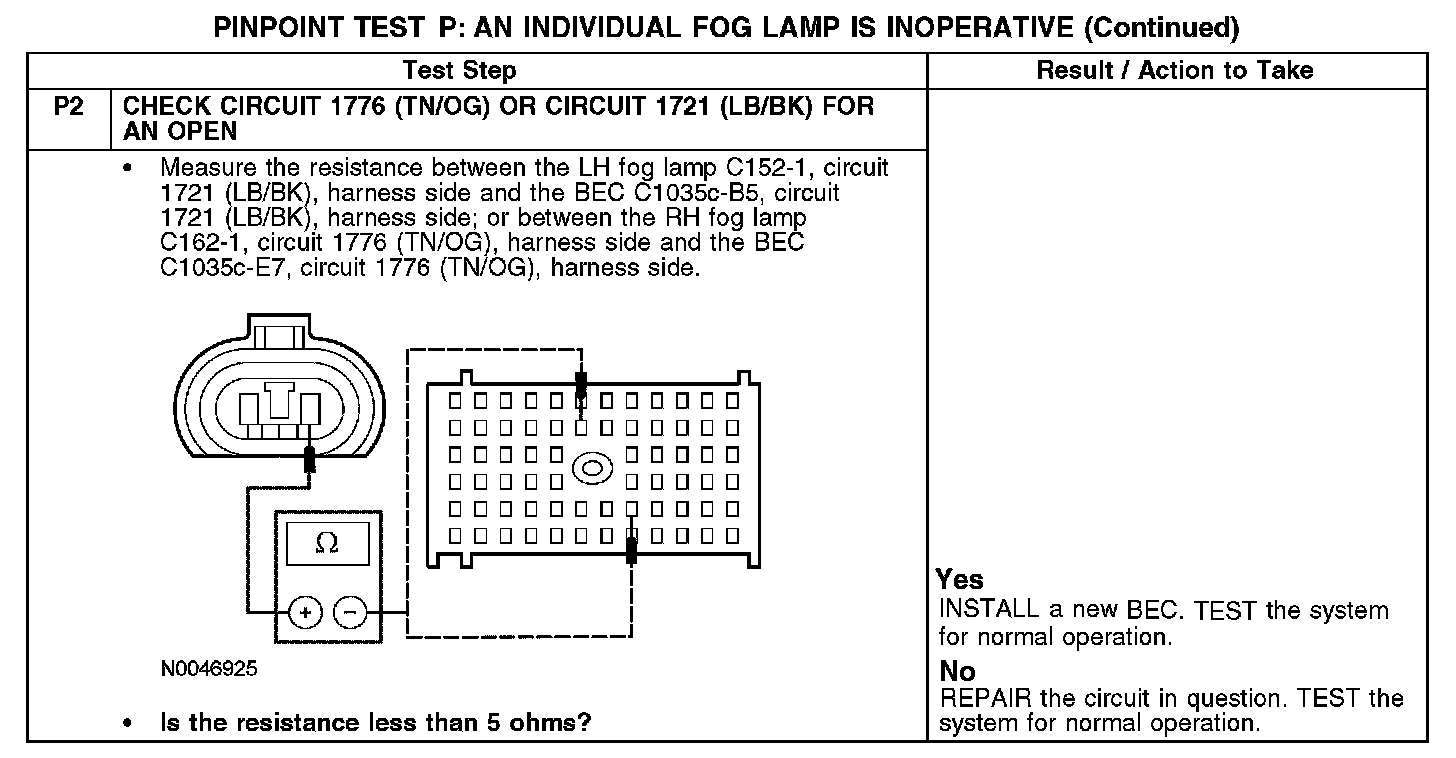

P2:

Normal Operation
When the fog lamp relay is energized, voltage is routed through circuits 1721 (LB/BK) and 1776 (TN/OG) to the LH and RH fog lamps, respectively. The fog lamps are provided ground through circuit 1205 (BK).

Possible Causes
- Circuit 1205 (BK) open
- Circuit 1721 (LB/BK) open
- Circuit 1776 (TN/OG) open
- BEC
