Fog/Driving Lamp Bulb: Service and Repair
FOG LAMP BULB4.0L and 4.6L Vehicles:
5.4L Vehicles:
Removal and Installation
WARNING: The fog lamp bulb contains gas under pressure. The bulb may shatter if the glass envelope is scratched or if the bulb is dropped. Handle the bulb carefully. Grasp the bulb only by its base. Avoid touching the glass envelope. Failure to follow these instructions may result in personal injury.
NOTE:
- The fog lamp bulb should not be removed from the fog lamp until just before a new bulb is installed. Removing the bulb for an extended period of time may affect fog lamp bulb performance. Contaminants may enter the fog lamp where they can settle on the lens and reflector. Never turn on the fog lamps with the bulb removed.
- Make sure the headlamp switch and the ignition switch are in the OFF position.

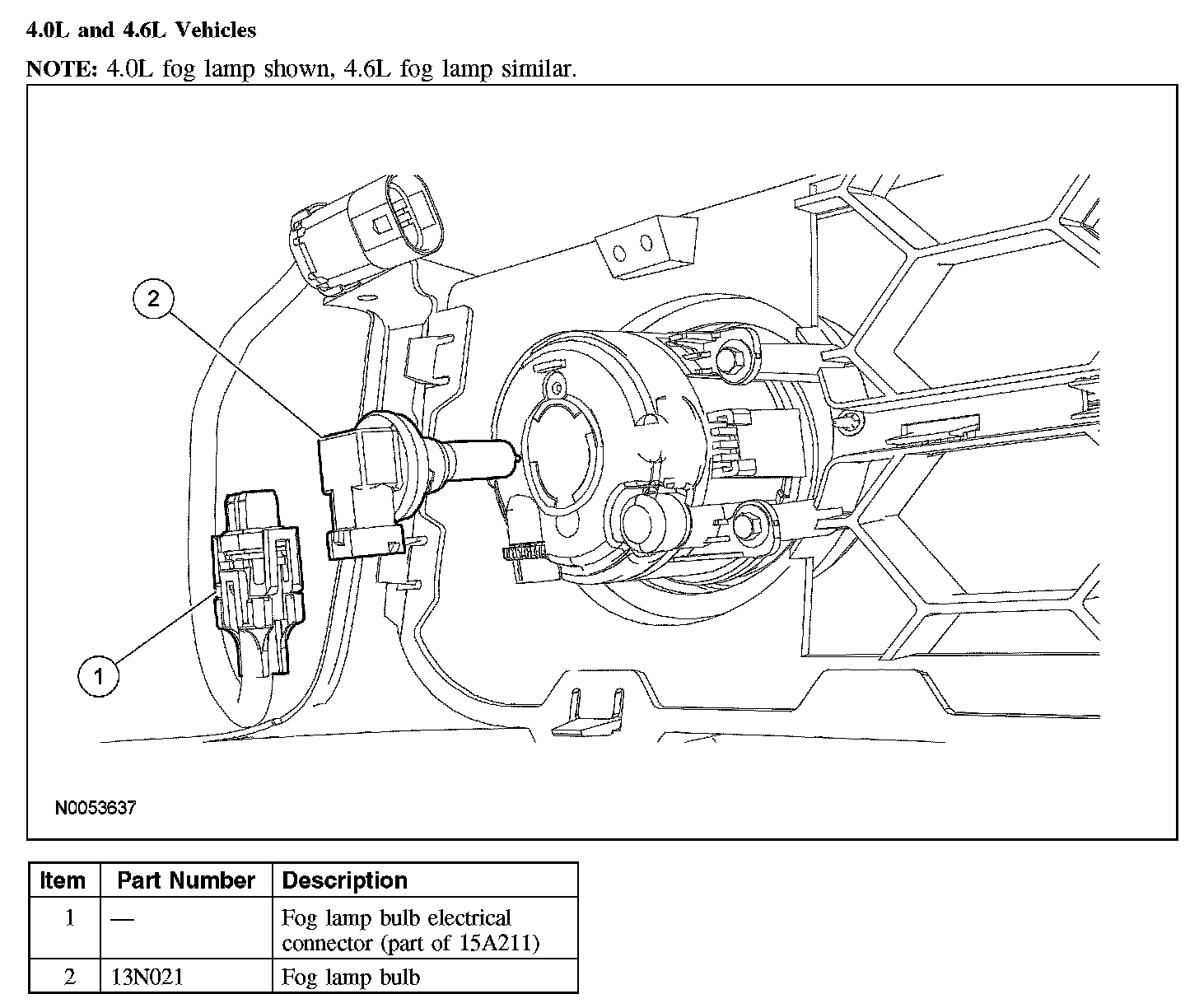

4.0L and 4.6L vehicles
1. Remove the front bumper cover.
2. Disconnect the electrical connector and remove the fog lamp bulb.

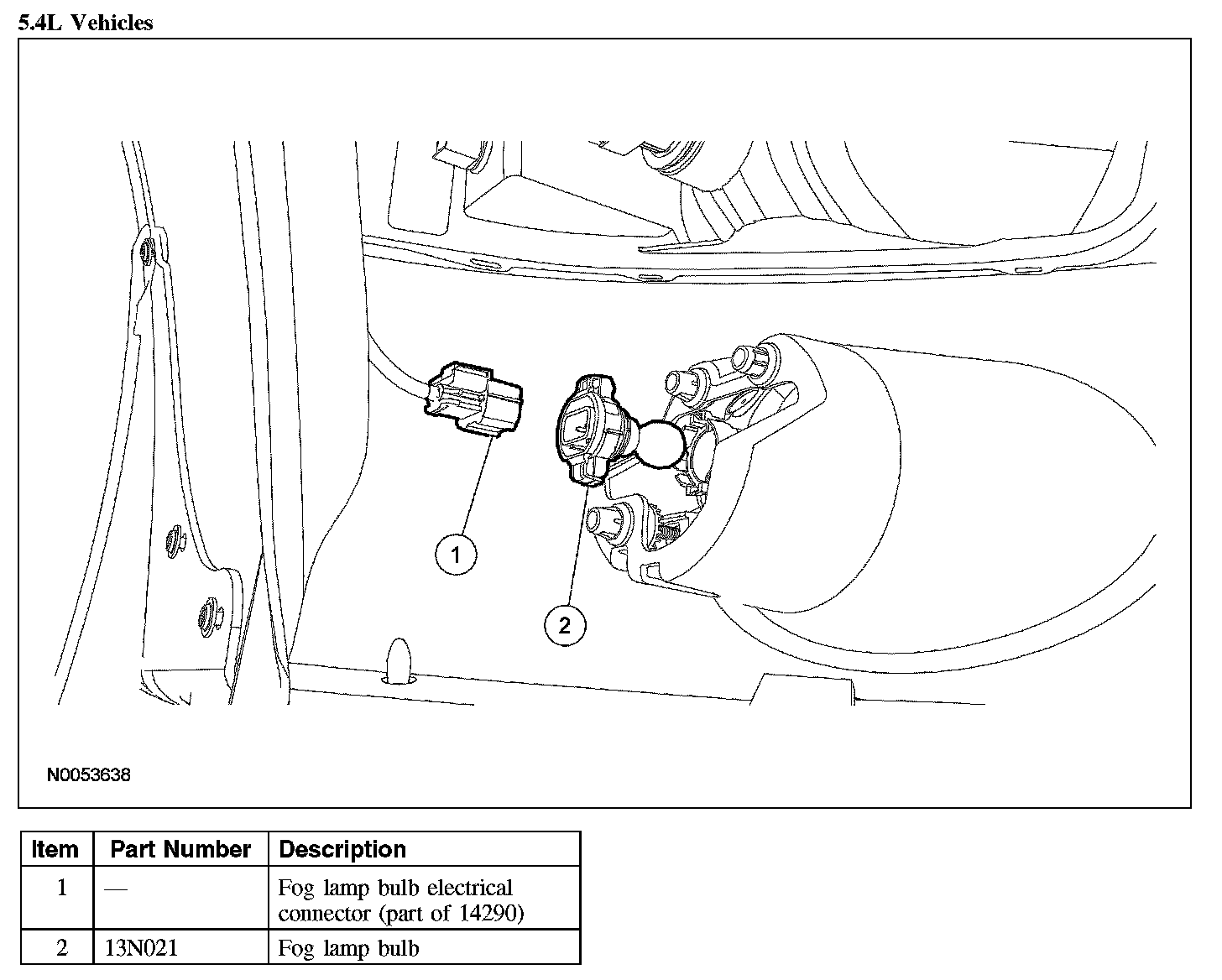

5.4L vehicles
3. With the vehicle in NEUTRAL, position it on a hoist.
4. Release (squeeze) the tabs and remove the fog lamp bulb.
- Disconnect the electrical connector.
All vehicles
5. To install, reverse the removal procedure.
