Instrument Cluster (IC)

INSTRUMENT CLUSTER

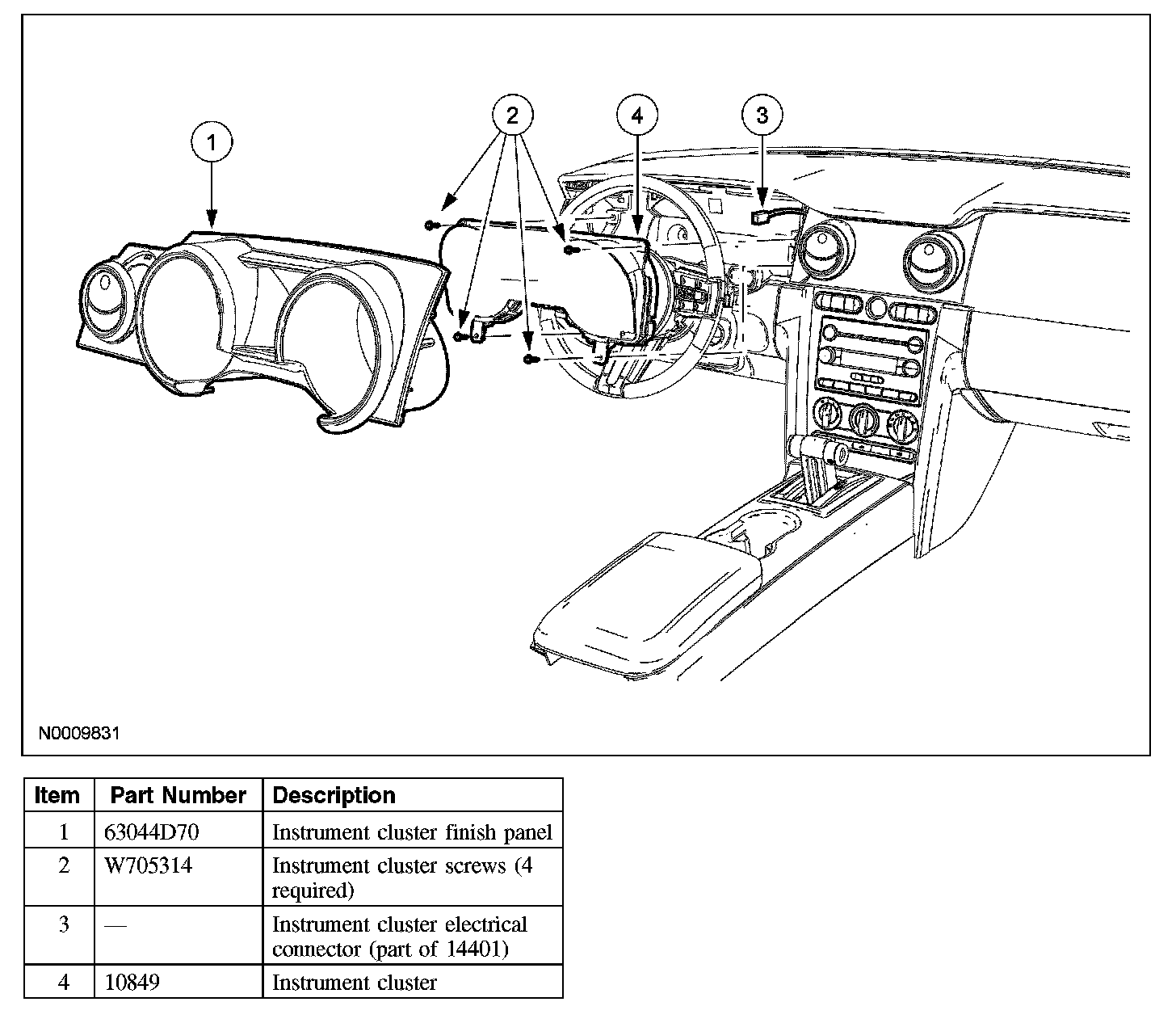

Removal and Installation

1. NOTE: If installing a new instrument cluster, it is necessary to upload the instrument cluster configuration information to the diagnostic tool.

Depower the supplemental restraint system (SRS).

2. NOTE: The instrument cluster finish panel is held in place with retaining clips that are attached to the bezel.

Remove the instrument cluster finish panel.

3. Remove the 4 screws and the instrument cluster.
- Disconnect the electrical connector.

4. To install, reverse the removal procedure.
- If a new instrument cluster was installed, download the instrument cluster configuration information from the diagnostic tool into the new instrument cluster.
