Compass Zone Adjustment

COMPASS ZONE ADJUSTMENT

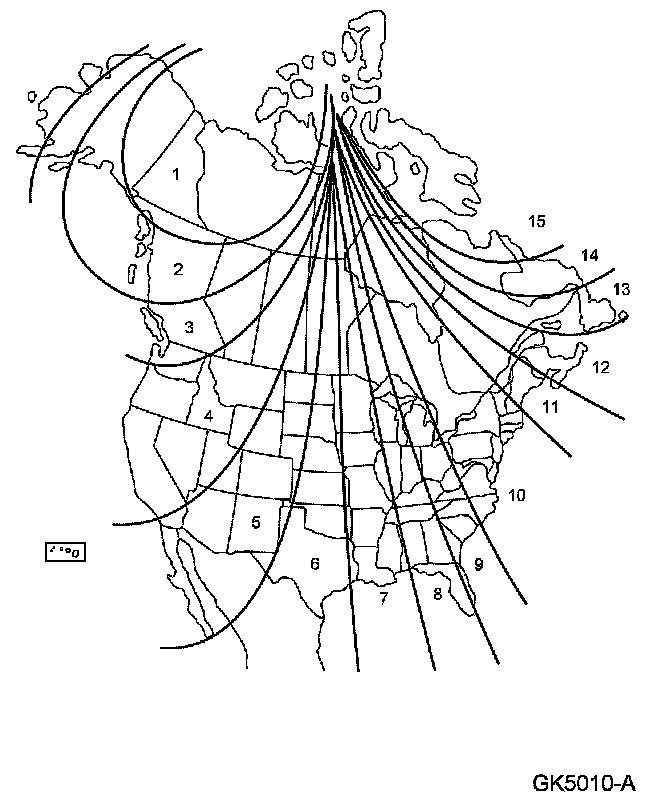

1. Refer to the compass calibration zone map to select the correct compass zone setting for the geographic location of the vehicle. Compass Calibration

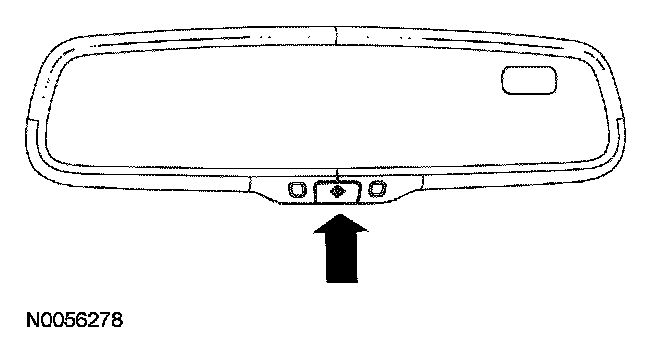

2. With the compass display turned on, press and hold the switch (for 3 seconds) until the display shows the current zone setting.
3. Momentarily press and release the switch to increase the zone increment by one. Set the zone display number to match the vehicle location on the compass calibration zone map.
4. Release the switch for 10 seconds to exit the zone setting mode.
