Blower Motor: Service and Repair

BLOWER MOTOR

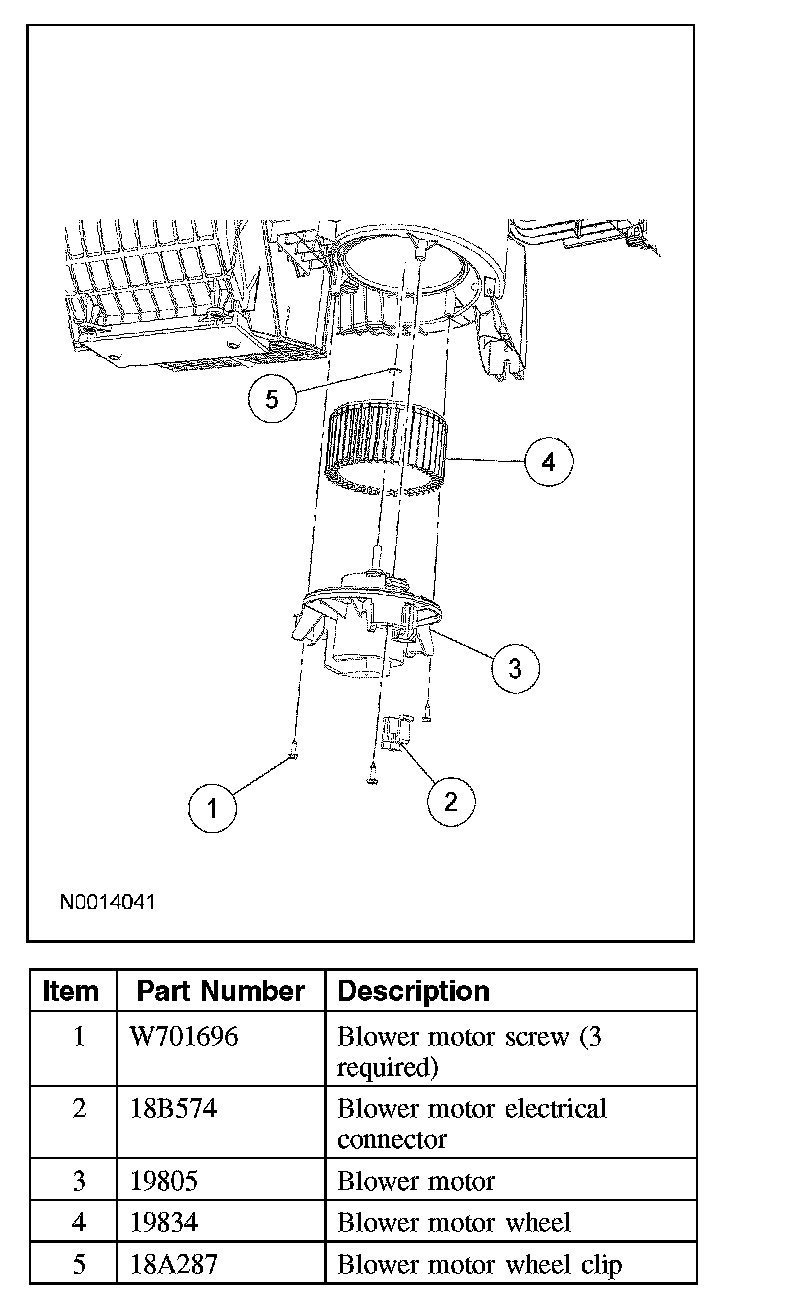

Removal and Installation
1. Disconnect the blower motor electrical connector.
2. Remove the 3 blower motor screws.
3. Remove the blower motor.
4. Remove the blower motor wheel clip.
5. Remove the blower motor wheel.
6. To install, reverse the removal procedure.
