Crankshaft Rear Seal With Retainer Plate

Crankshaft Rear Seal with Retainer Plate

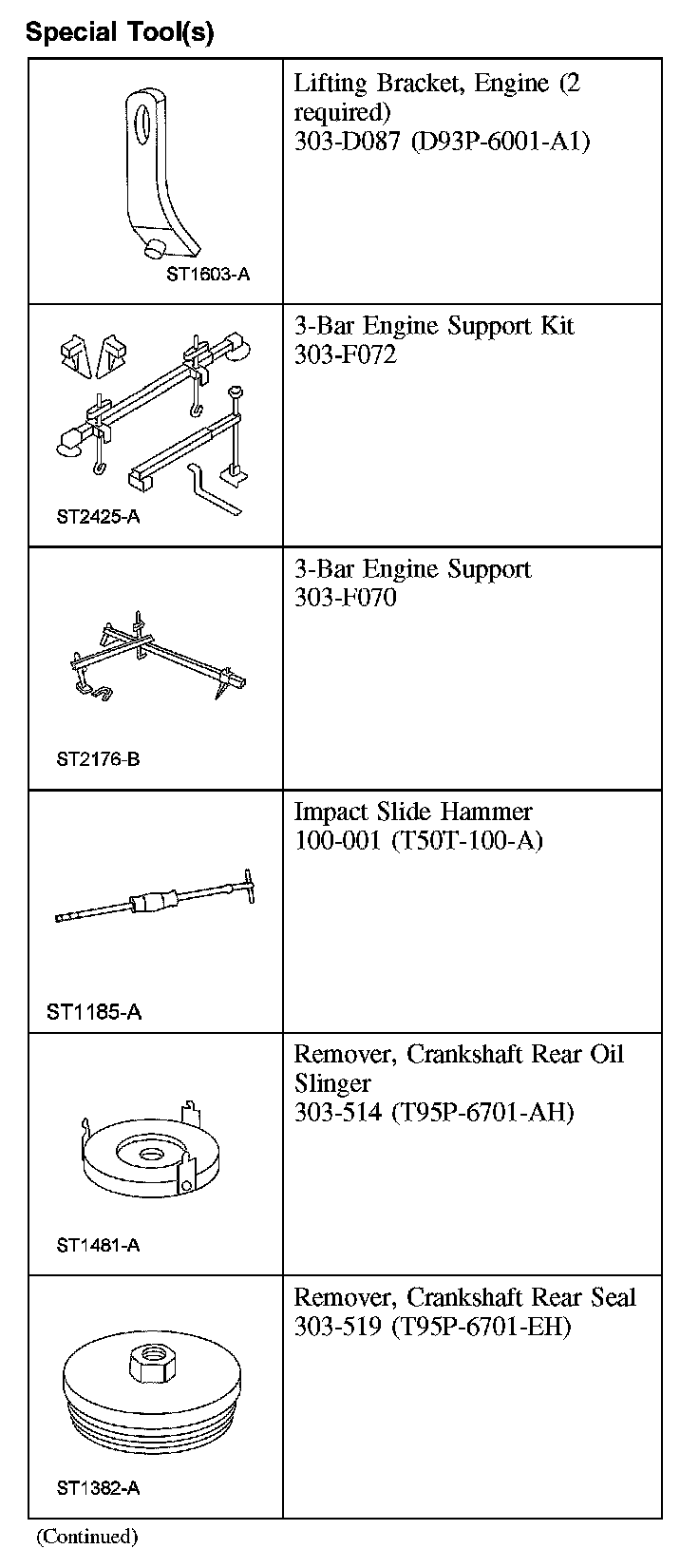

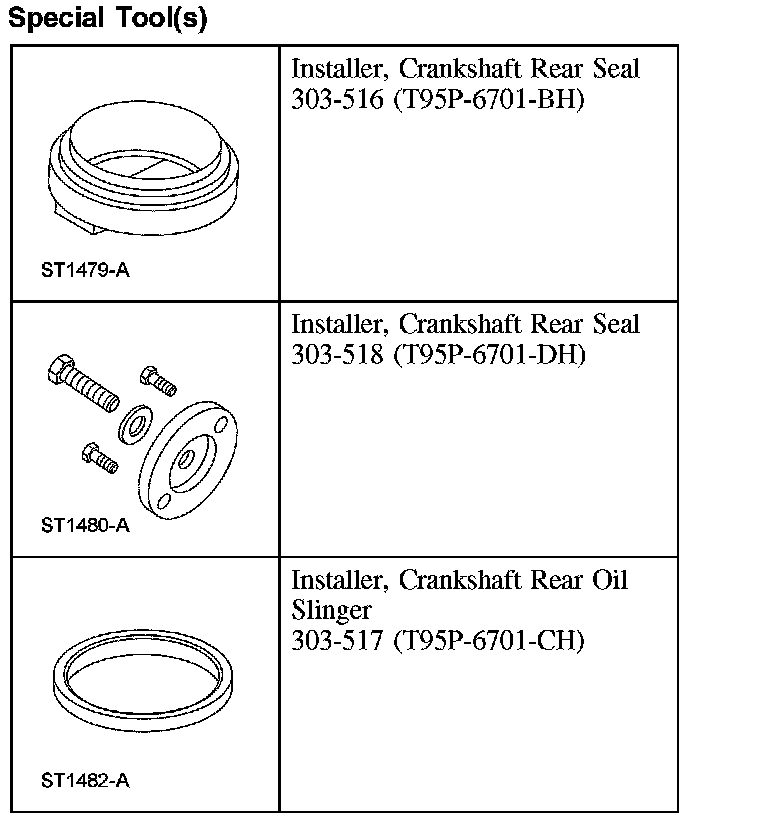

Special Tool(s):

Special Tool(s):

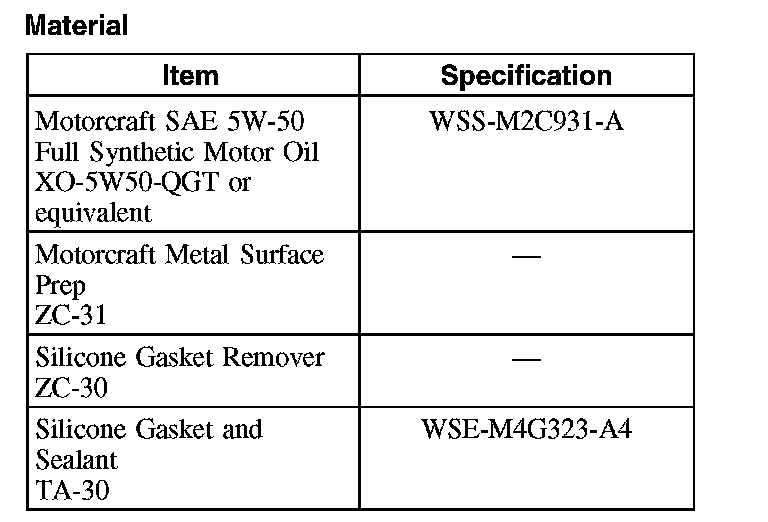

Materials:

Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Remove the 4 nuts and the strut tower cross brace.





3. Remove the battery and tray.
4. Remove the air cleaner outlet pipe.
5. Install the special tool.





6. Install the special tool.





7. Remove the flywheel.
8. Remove the engine-to-transmission spacer plate.
9. Remove the LH and RH engine support insulator nuts.

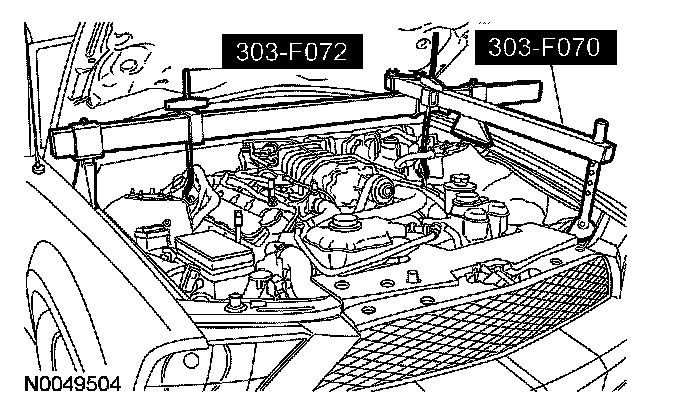

10. NOTE: The heavy duty 3-bar support (303-F070) must be used with the draw screws from the light duty 3-bar support (303-F072). This will provide enough clearance between the supercharger (SC) and the 3-bar support, and enough clearance between the draw screw and the vehicle hood.

Install the special tools and raise the engine.





11. Drain the engine oil.
- Tighten the drain plug to 26 Nm (19 ft. lbs.).
12. Detach the 2 wiring harness retainers from the oil pan.
13. Detach the wiring harness retainer from the oil pan stud bolt.
14. Remove the nut and the wire harness retainer bracket from the oil pan stud bolt.
15. Remove the 14 bolts, 2 stud bolts and the oil pan.
- Discard the gasket.

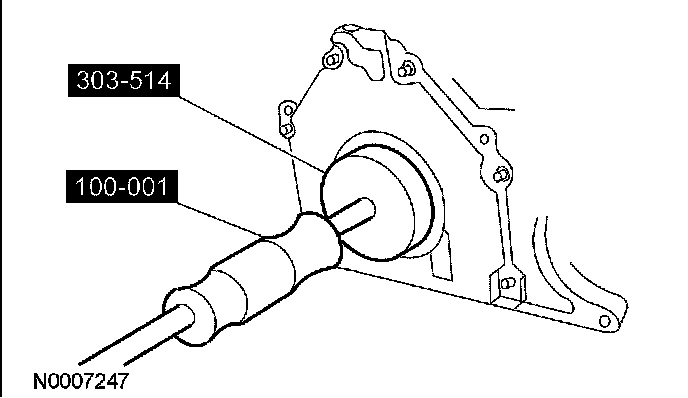

16. Using the special tools, remove the crankshaft rear seal oil slinger.

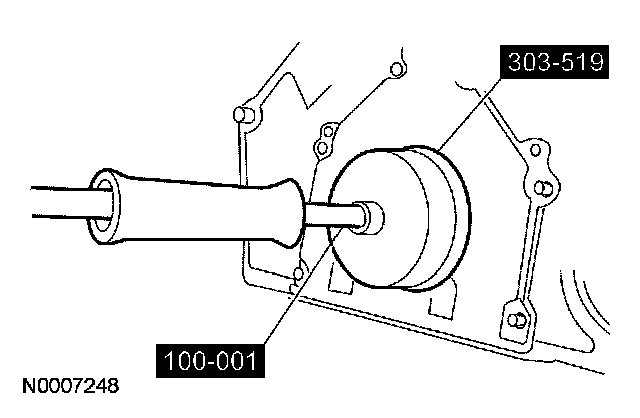

17. Using the special tools, remove the crankshaft rear seal.





18. Remove the 6 bolts and the crankshaft rear seal retainer plate.

Installation

1. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

NOTE: Clean the sealing surfaces with silicone gasket remover and metal surface prep. Follow the directions on the packaging. Failure to follow this procedure can cause future oil leakage.

Clean and inspect the mating surfaces of the engine block, rear seal retainer plate and oil pan.

2. CAUTION: If not secured within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Follow the directions on the
packaging. Failure to follow this procedure can cause future oil leakage.

Apply a 4 mm (0.15 inch) bead of silicone gasket and sealant to the rear crankshaft seal retainer mating surface on the engine block.

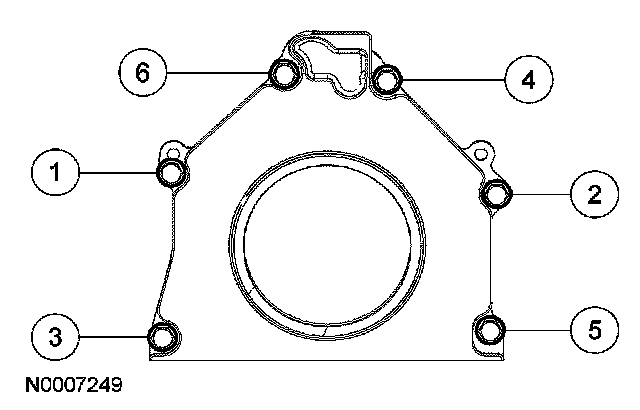

3. Install the crankshaft rear seal retainer plate and the 6 bolts.
- Tighten in the sequence shown to 10 Nm (89 inch lbs.).





4. NOTE: Lubricate the inner lip of the crankshaft rear seal with clean engine oil.

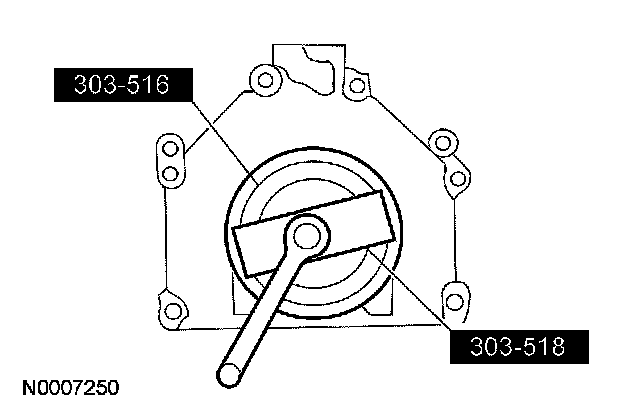

Using the special tools, install the crankshaft rear seal.





5. Using the special tools, install the crankshaft rear oil slinger.





6. CAUTION: If not secured within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Follow the directions on the packaging. Failure to follow this procedure can cause future oil leakage.

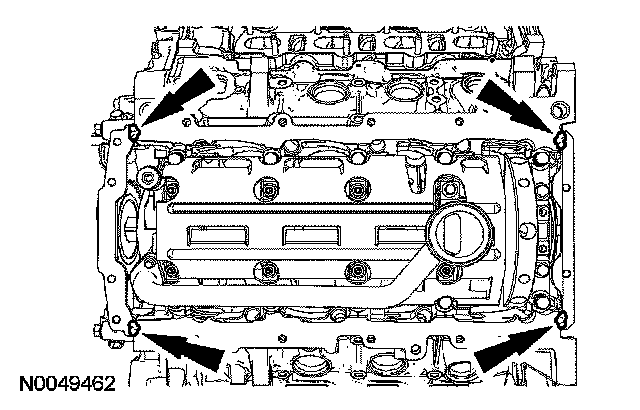

Apply silicone gasket and sealant at the engine front cover-to-cylinder block sealing joints and the crankshaft rear seal retainer plate-to-cylinder block sealing joints.

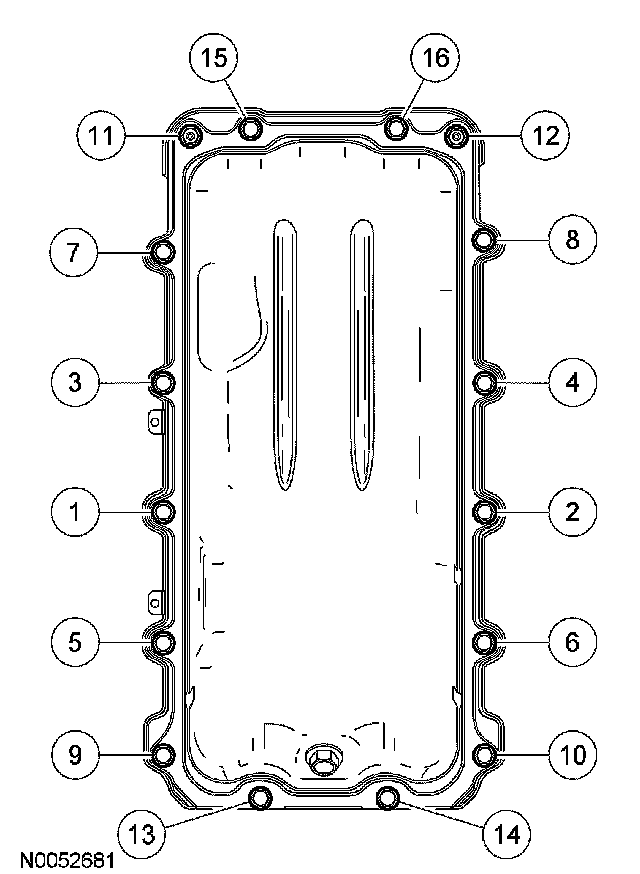

7. Using a new gasket, install the oil pan, 14 bolts and 2 stud bolts.
- Tighten in the sequence shown to 25 Nm (18 ft. lbs.).





8. Install the wire harness retainer bracket on the oil pan stud bolt and install the nut.
- Tighten to 10 Nm (89 inch lbs.).
9. Attach the wiring harness retainer to the oil pan stud bolt.
10. Attach the 2 wiring harness retainers to the oil pan.

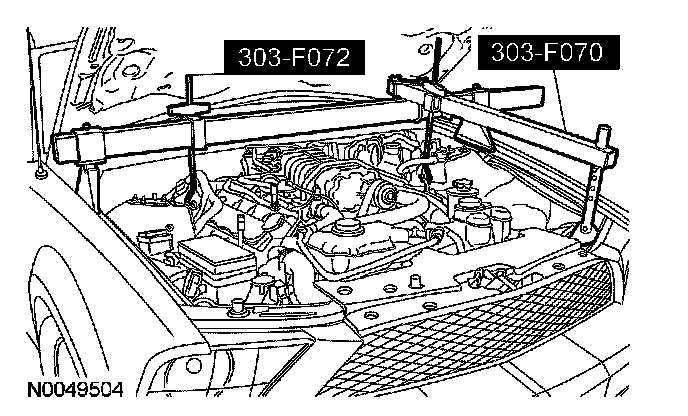

11. Using the special tools, lower the engine onto the engine support insulators.





12. Install the LH and RH engine support insulator nuts.
- Tighten to 63 Nm (46 ft. lbs.).
13. Install the engine-to-transmission spacer plate.
14. Install the flywheel.
15. Install the air cleaner outlet pipe.
16. Install the battery and tray.
17. Install the strut tower cross brace and the 4 nuts.
- Tighten to 35 Nm (26 ft. lbs.).





18. Fill the engine with clean engine oil.
