Crankshaft Rear Seal

Crankshaft Rear Seal

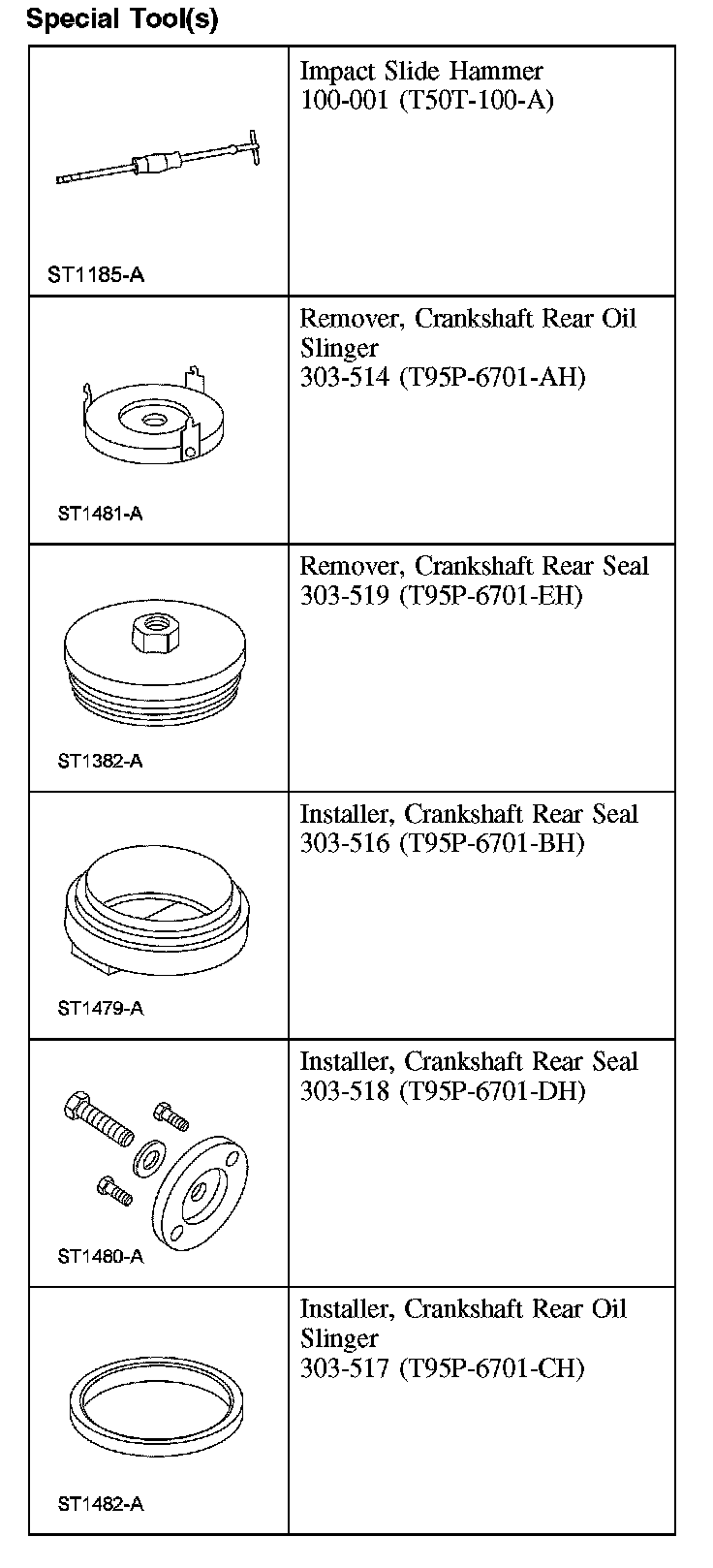

Special Tool(s):

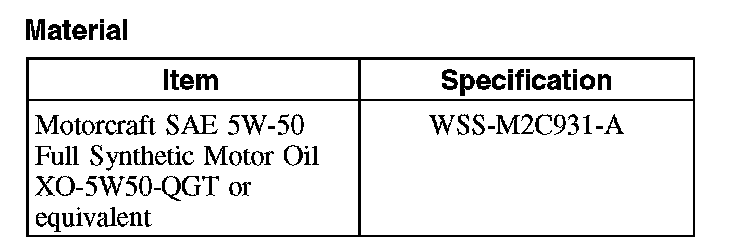

Material:

Removal
1. Remove the flywheel.

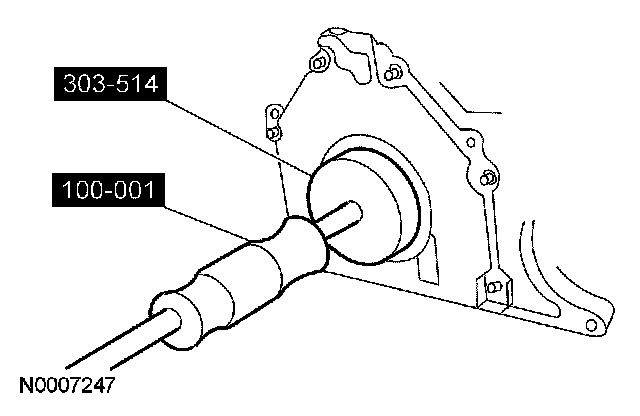

2. Using the special tools, remove the crankshaft rear seal oil slinger.

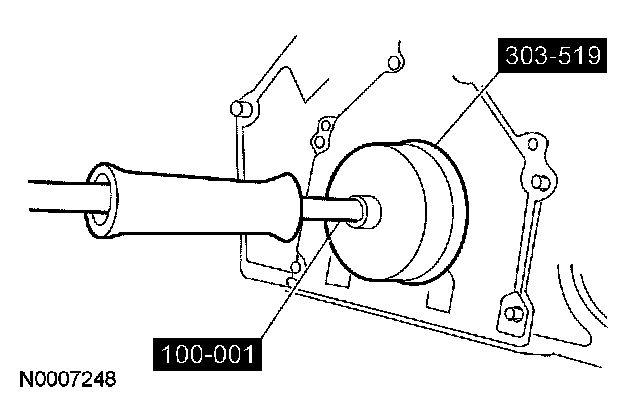

3. Using the special tools, remove the crankshaft rear seal.





Installation

1. NOTE: Lubricate the inner lip of the crankshaft rear seal with clean engine oil.

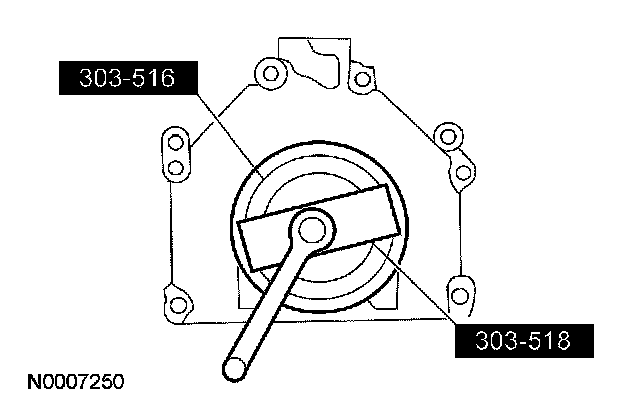

Using the special tools, install the crankshaft rear seal.

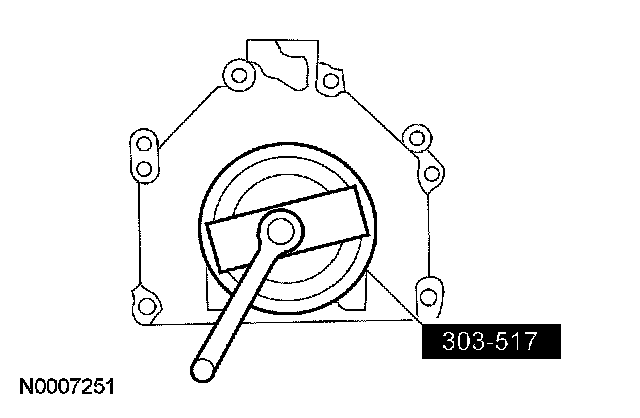

2. Using the special tools, install the crankshaft rear oil slinger.





3. Install the flywheel.
