Supercharger Belt Idler Pulley

Supercharger Belt Idler Pulley

Removal and Installation
All idler pulleys
1. Using a suitable belt tensioner release tool, rotate the supercharger belt tensioner clockwise and remove the supercharger belt from the supercharger pulley.

Smooth idler pulley
2. Remove the bolt and the supercharger belt smooth idler pulley.
- To install, tighten to 25 Nm (18 ft. lbs.).

Grooved idler pulley
3. Remove the bolt and the supercharger belt grooved idler pulley.
- To install, tighten to 25 Nm (18 ft. lbs.).

Heavy load idler pulley

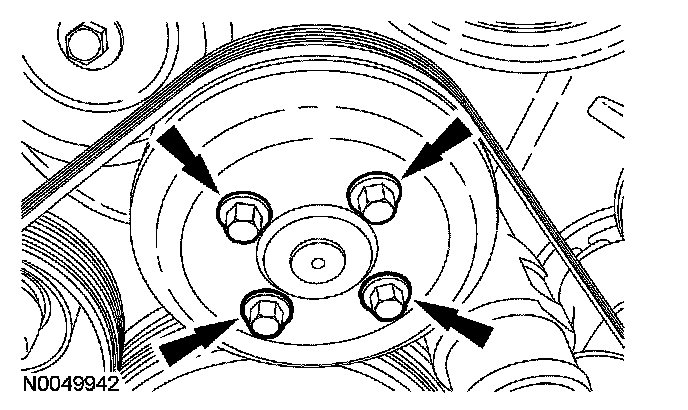

4. Loosen the coolant pump pulley bolts.
- To install, tighten to 25 Nm (18 ft. lbs.).





5. Using a suitable belt tensioner release tool, rotate the accessory drive belt tensioner clockwise and remove the accessory drive belt from the coolant pump pulley.

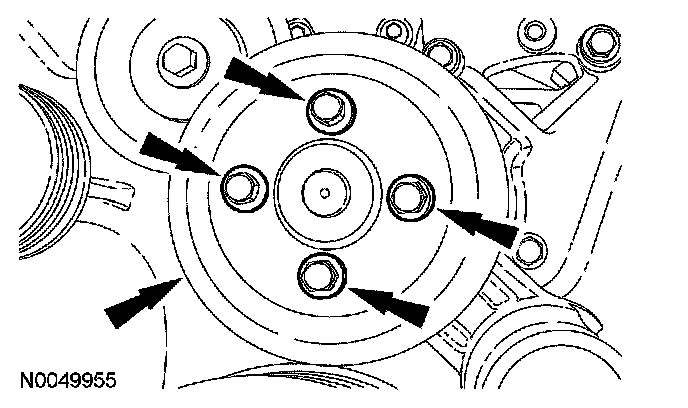

6. Remove the bolts and the coolant pump pulley.





7. Remove the bolt and the supercharger belt heavy load idler pulley.
- To install, tighten to 48 Nm (35 ft. lbs.).

All idler pulleys

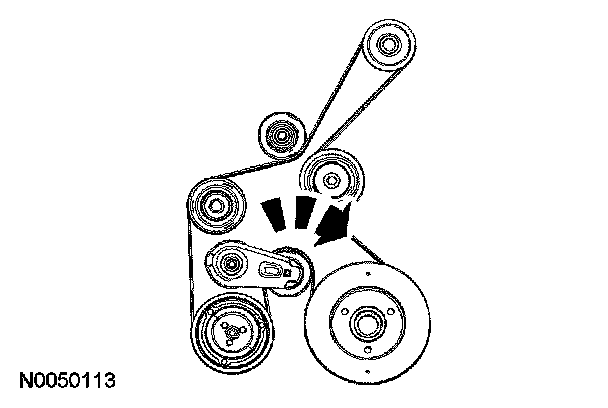

8. NOTE: Refer to the illustration for correct supercharger belt routing.

To install, reverse the removal procedure.
