Supercharger Belt Tensioner

Supercharger Belt Tensioner

Removal and Installation

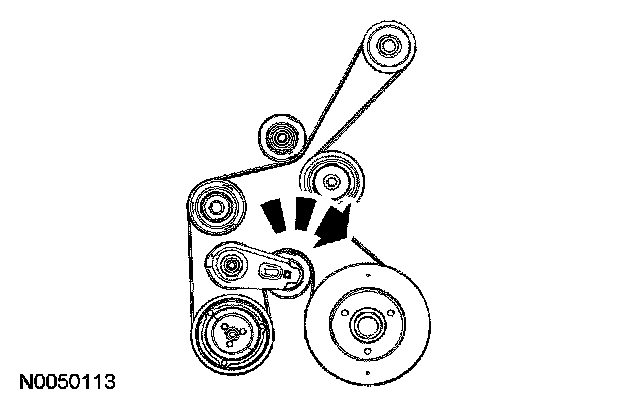

1. Using a suitable belt tensioner release tool, rotate the supercharger belt tensioner clockwise and remove the supercharger belt from the supercharger pulley.

2. NOTE: The supercharger belt is routed behind the supercharger belt tensioner.

Remove the supercharger belt tensioner bolt and tensioner.
- To install, tighten to 48 Nm (35 ft. lbs.).

3. NOTE: Refer to the illustration for correct supercharger belt routing.

To install, reverse the removal procedure.
