Valve Guide Reaming

Valve Guide Reaming

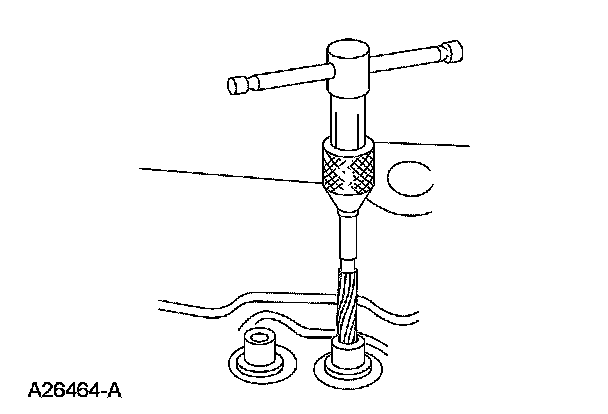

1. Use a hand-reaming kit to ream the valve guide.





2. Reface the valve seat.
3. Clean the sharp edges left by reaming.
