Part 3

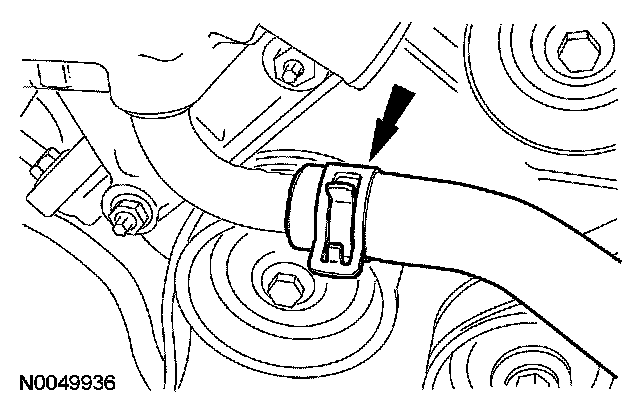

100. Connect the coolant hose from the charge air cooler (CAC).

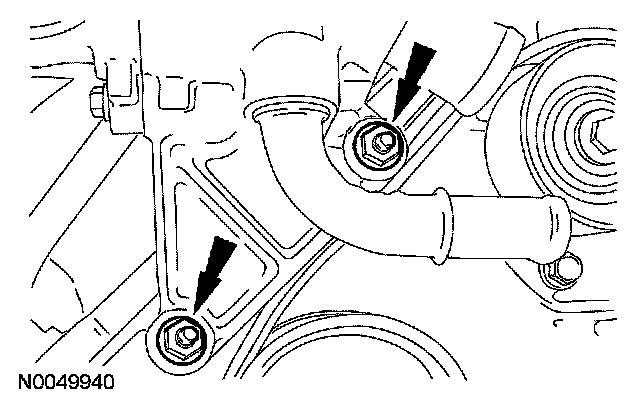

101. Install the thermostat housing assembly and the 2 nuts.
- Tighten to 25 Nm (18 ft. lbs.).

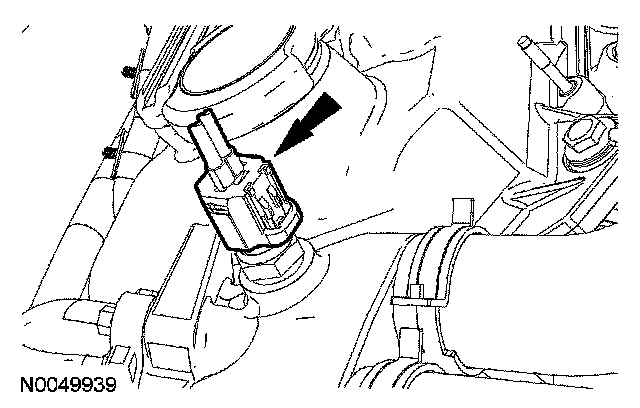

102. Connect the engine coolant temperature (ECT) sensor electrical connector.

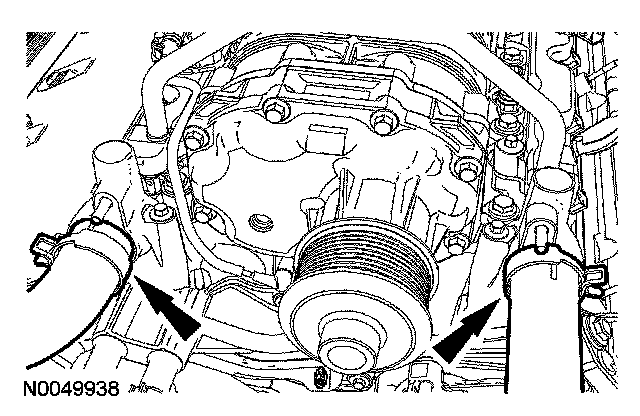

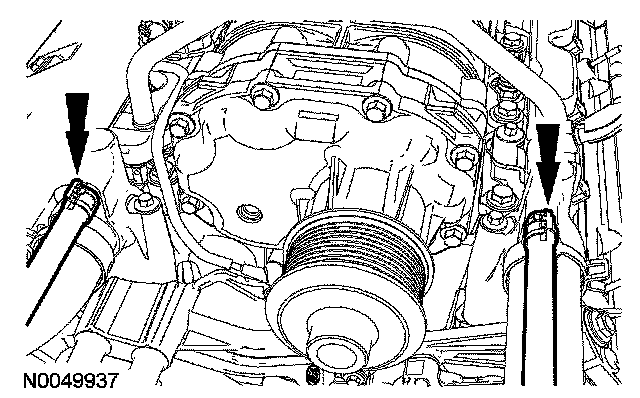

103. Connect the 2 upper radiator hoses to the intake manifold.





104.Connect the 2 coolant vent hoses to the intake manifold.





105. Install the coolant tube bracket nut.

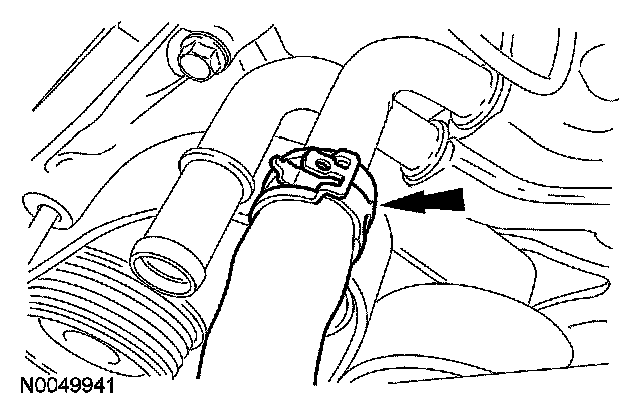

106. Connect the coolant hose to the thermostat housing.

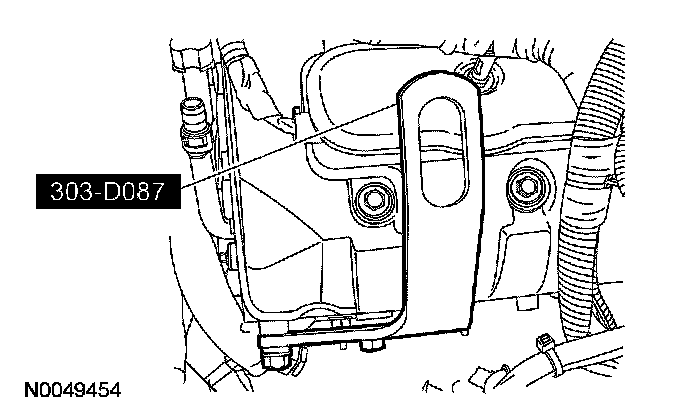

107. Install the special tool.

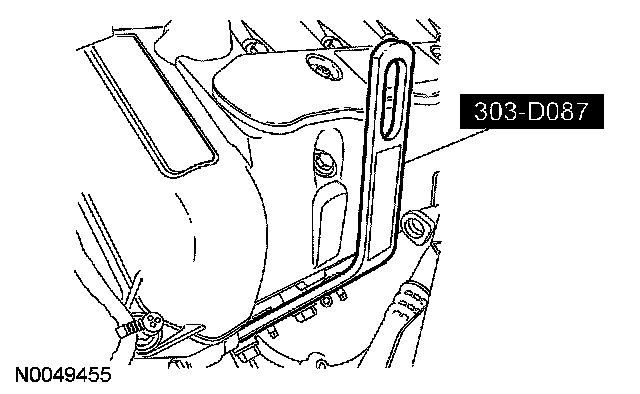

108. Install the special tool.

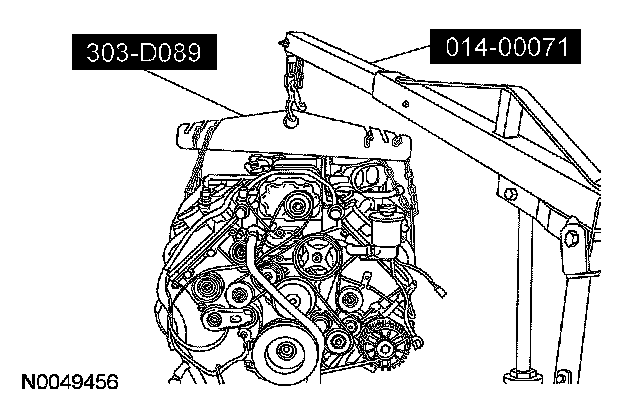

109. Using the special tools, remove the engine from the work stand.

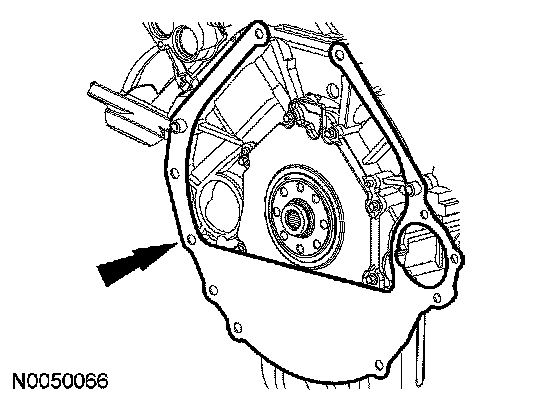

110. Install the engine/transmission spacer plate.

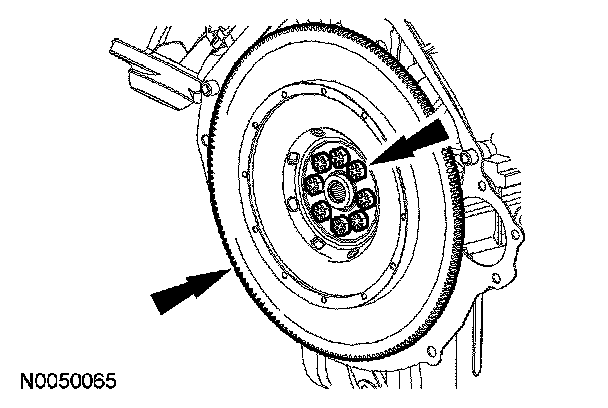

111. Install the flywheel and the 8 bolts.
- Tighten to 80 Nm (59 ft. lbs.) in the sequence shown.





112. Install the engine into the vehicle.
