Test B: the Engine Overheats

Test B: The Engine Overheats

Normal Operation
Possible Causes
- Thermostat
- Coolant pump
- Internal engine coolant leak
- Radiator
- Cooling fan
- Pressure relief cap or radiator cap

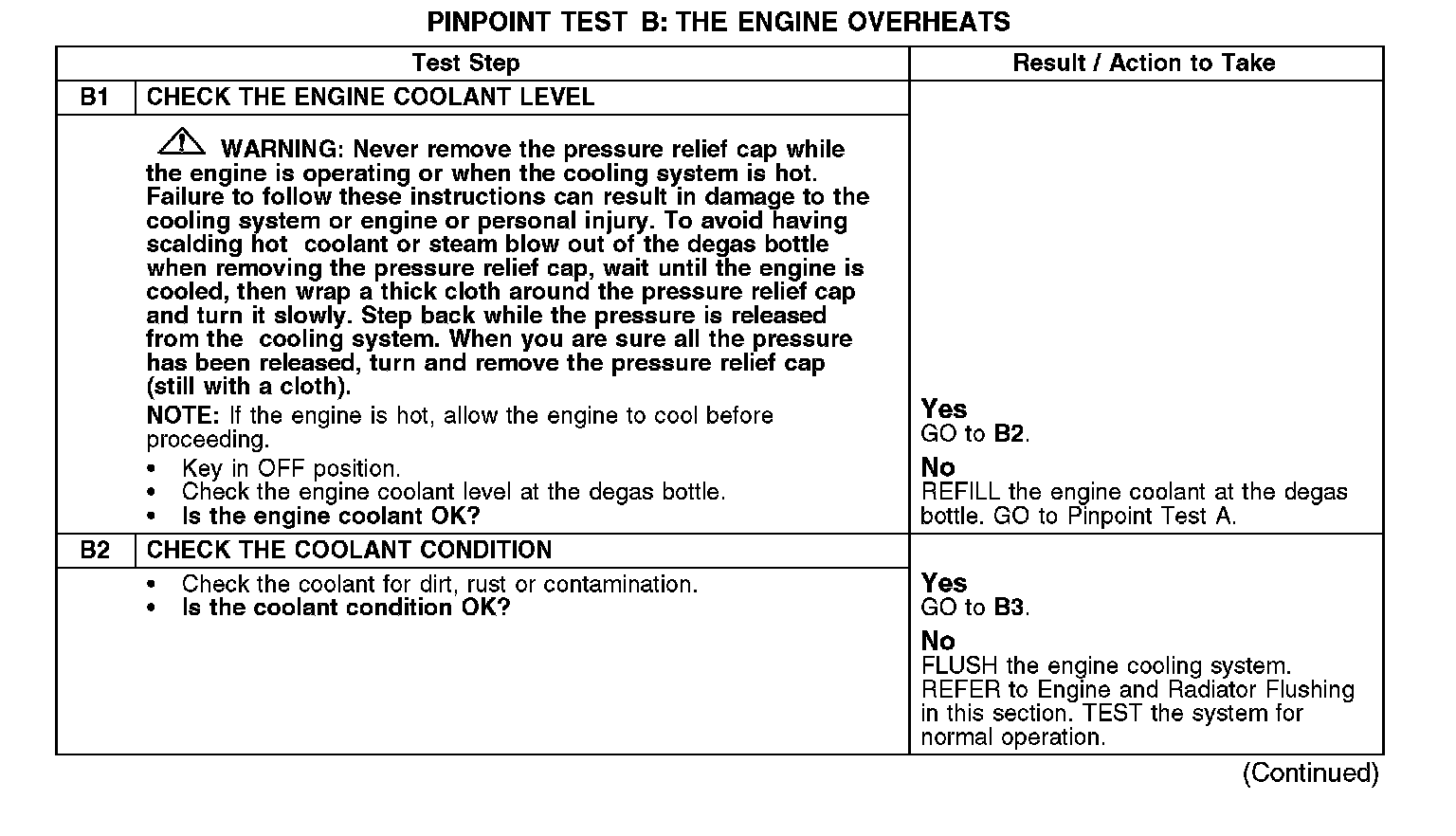

B1-B2:

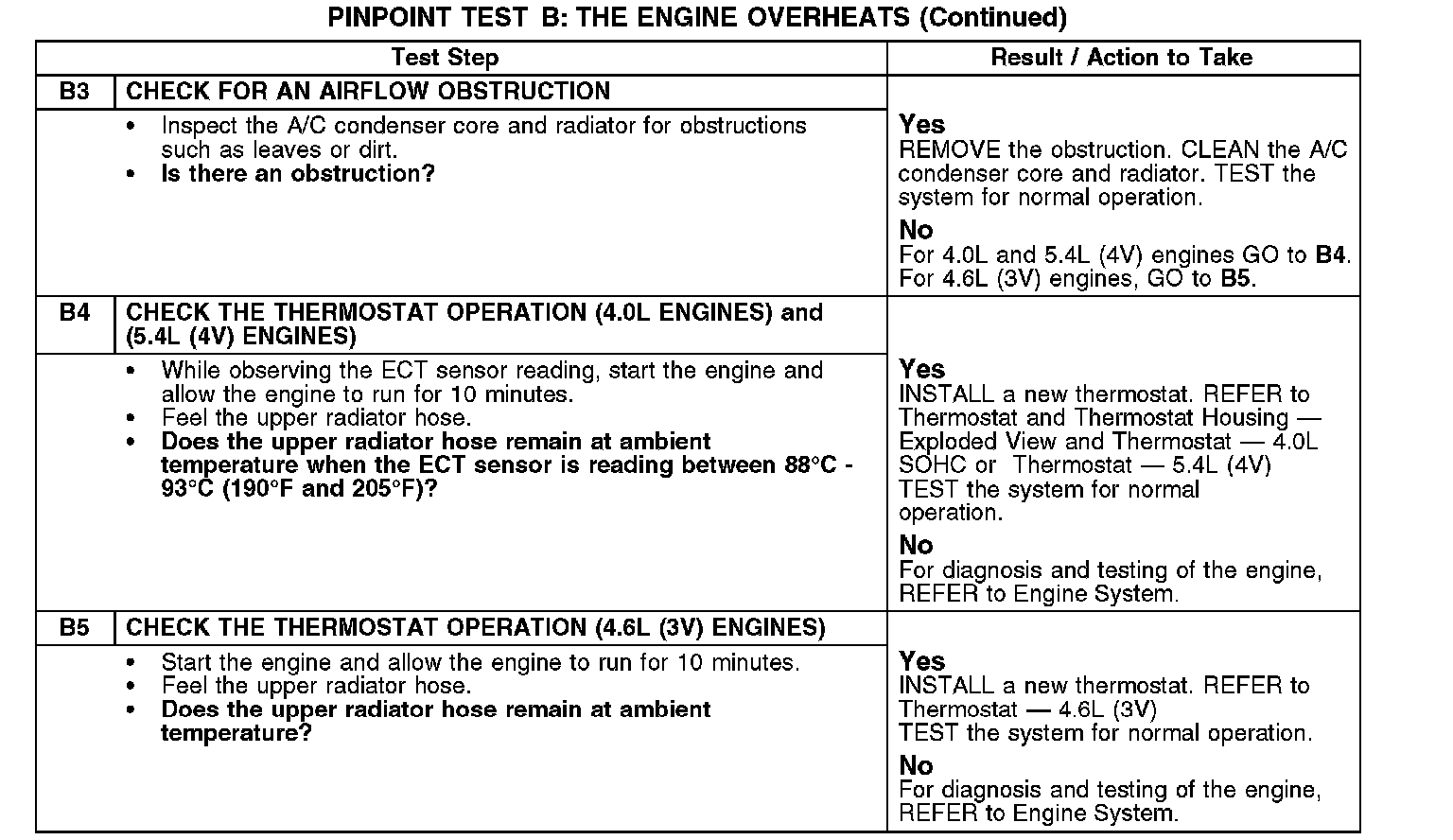

B3-B5:
