Home >> Ford >> 2007 >> Mustang V8-5.4L SC VIN S >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Engine Lubrication

Engine Lubrication

Engine Lubrication Components - Exploded View

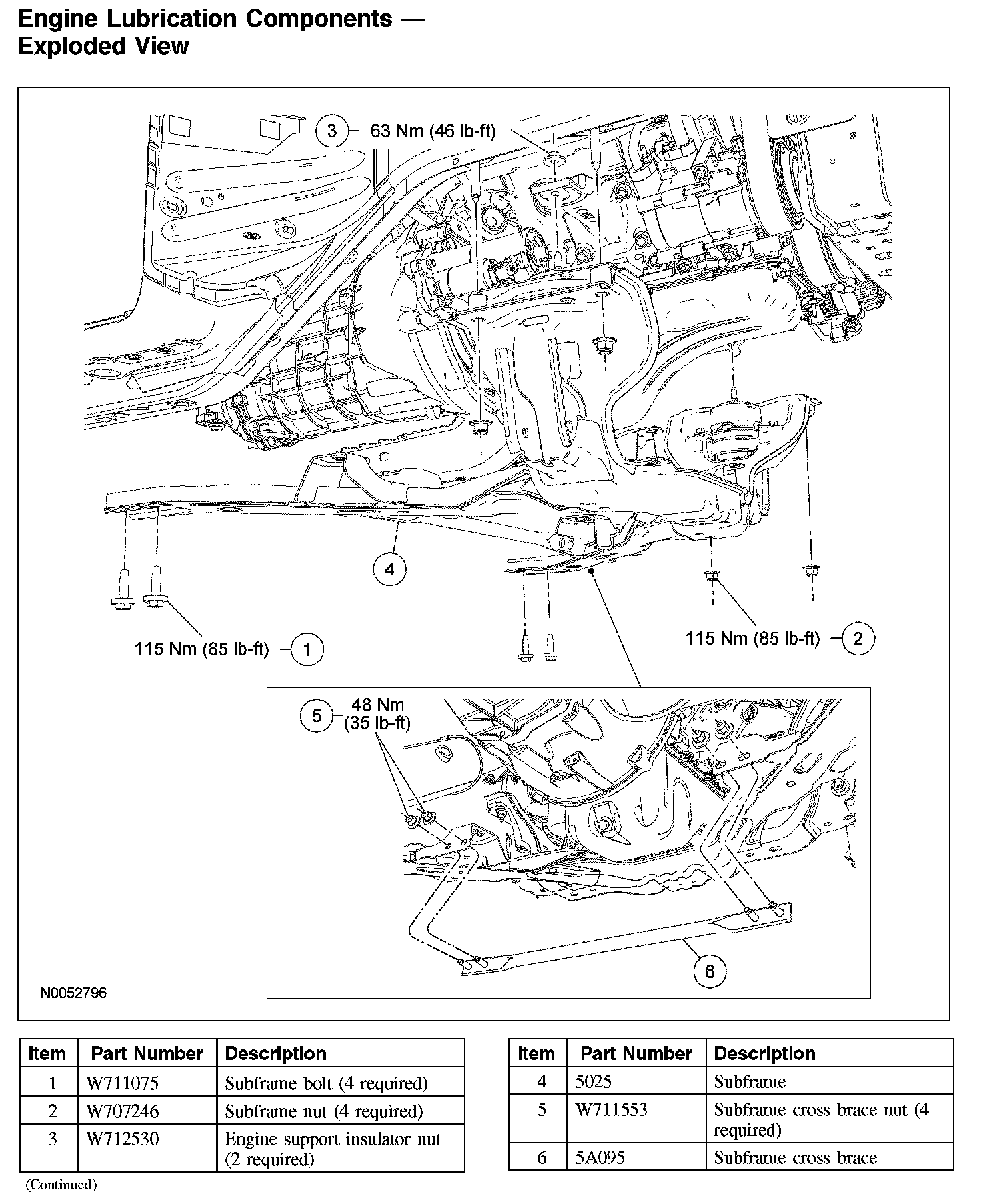

Engine Lubrication Components - Exploded View:

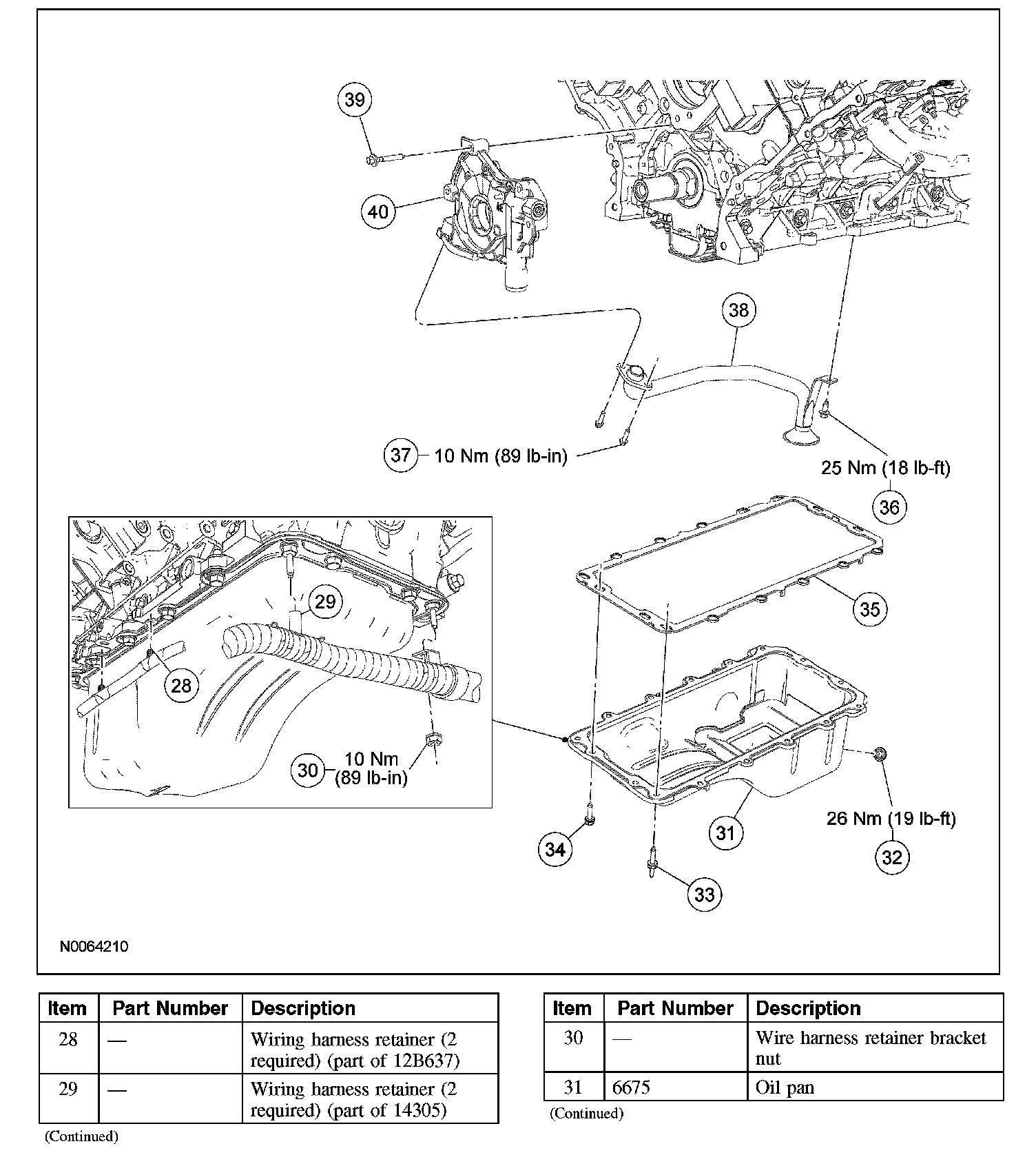

Engine Lubrication Components - Exploded View:

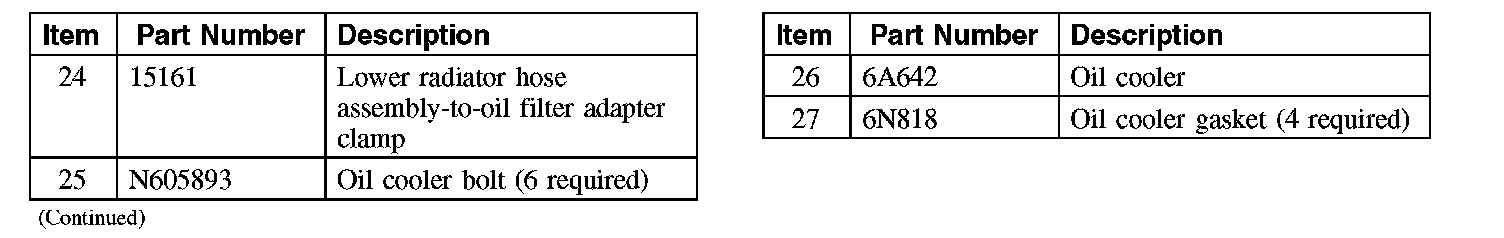

Engine Lubrication Components - Exploded View:

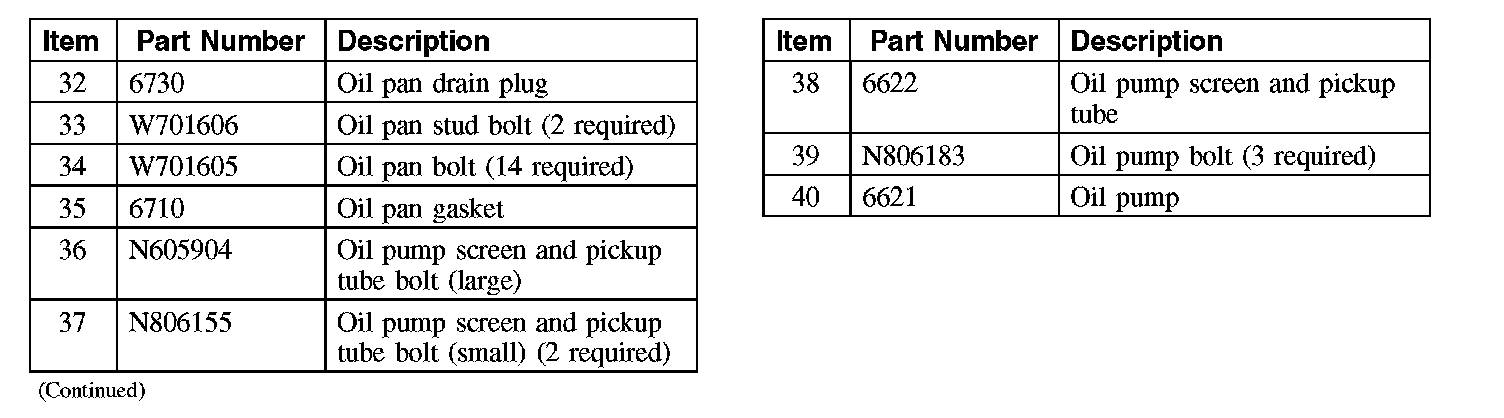

Engine Lubrication Components - Exploded View:

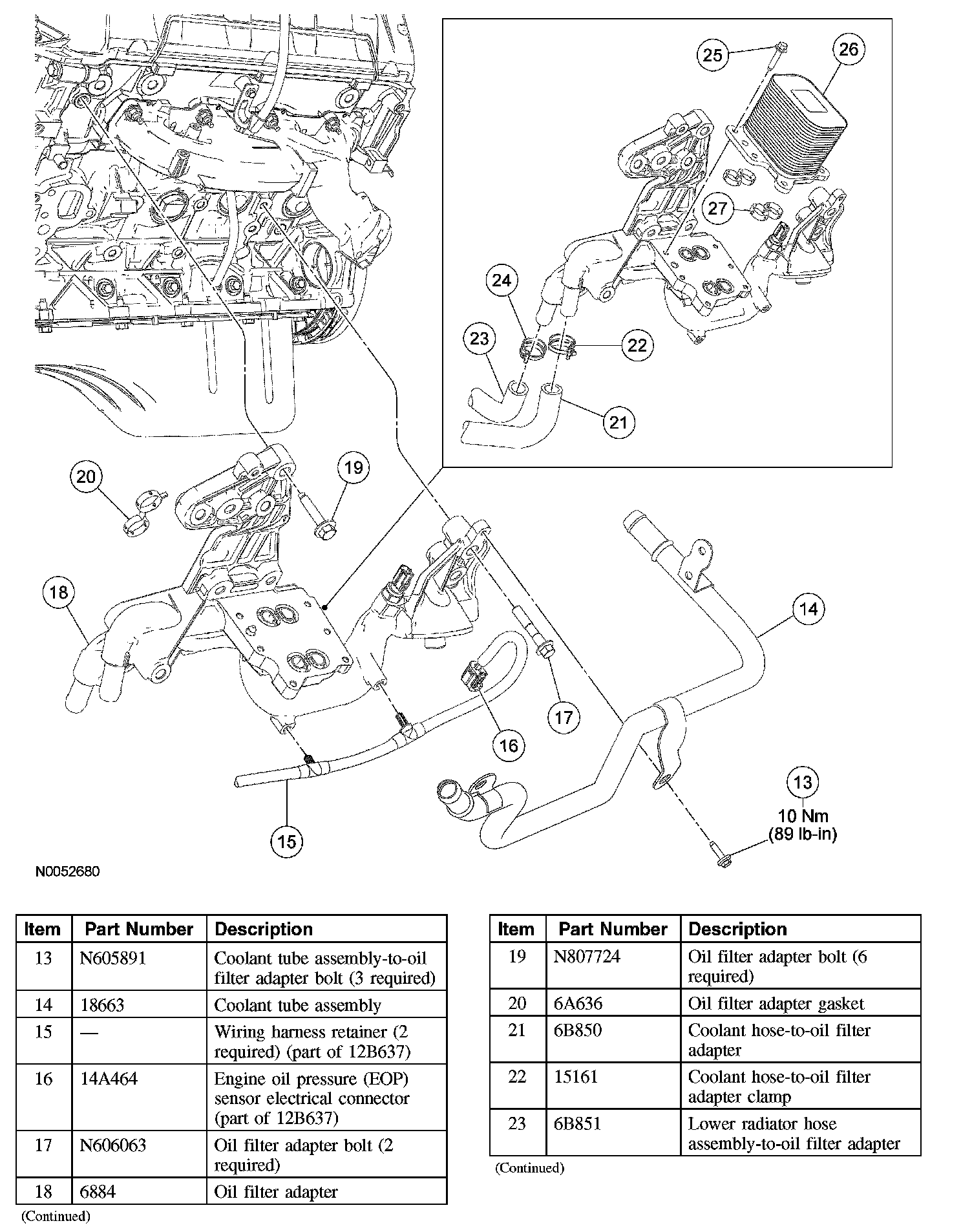

Engine Lubrication Components - Exploded View:
