Diagram Set 25 (Electronic Engine Controls)

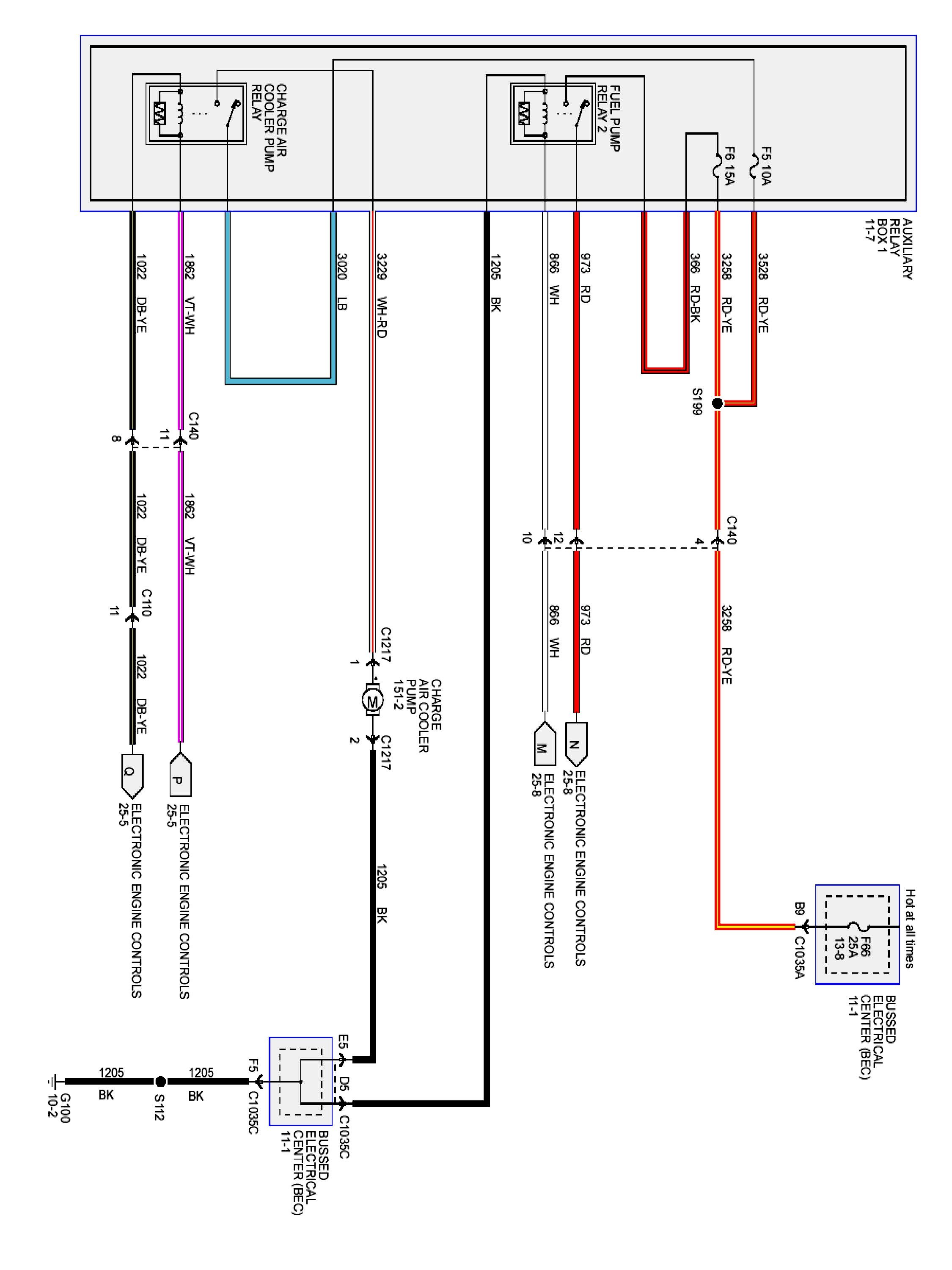

25-1:

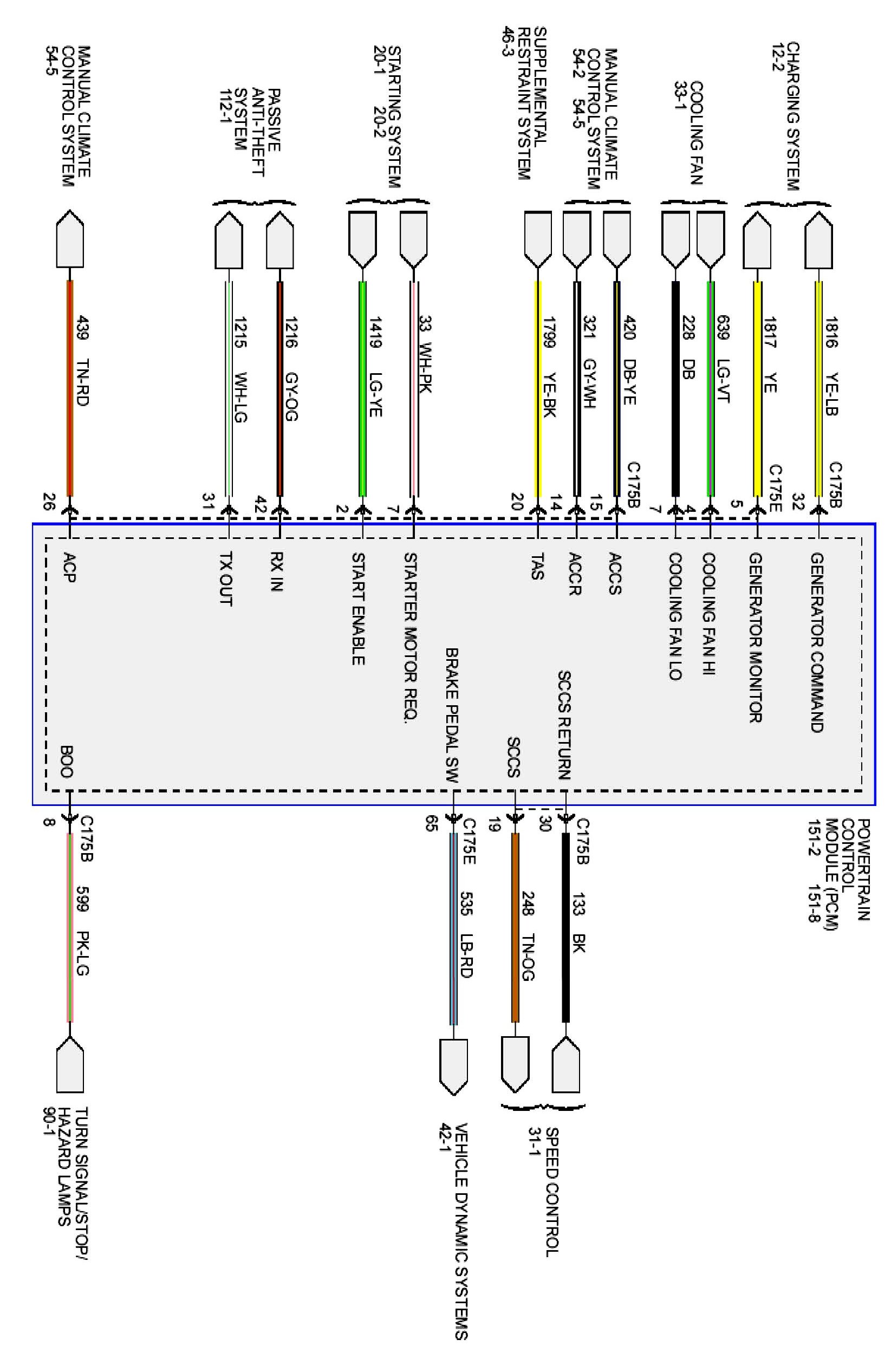

25-2:

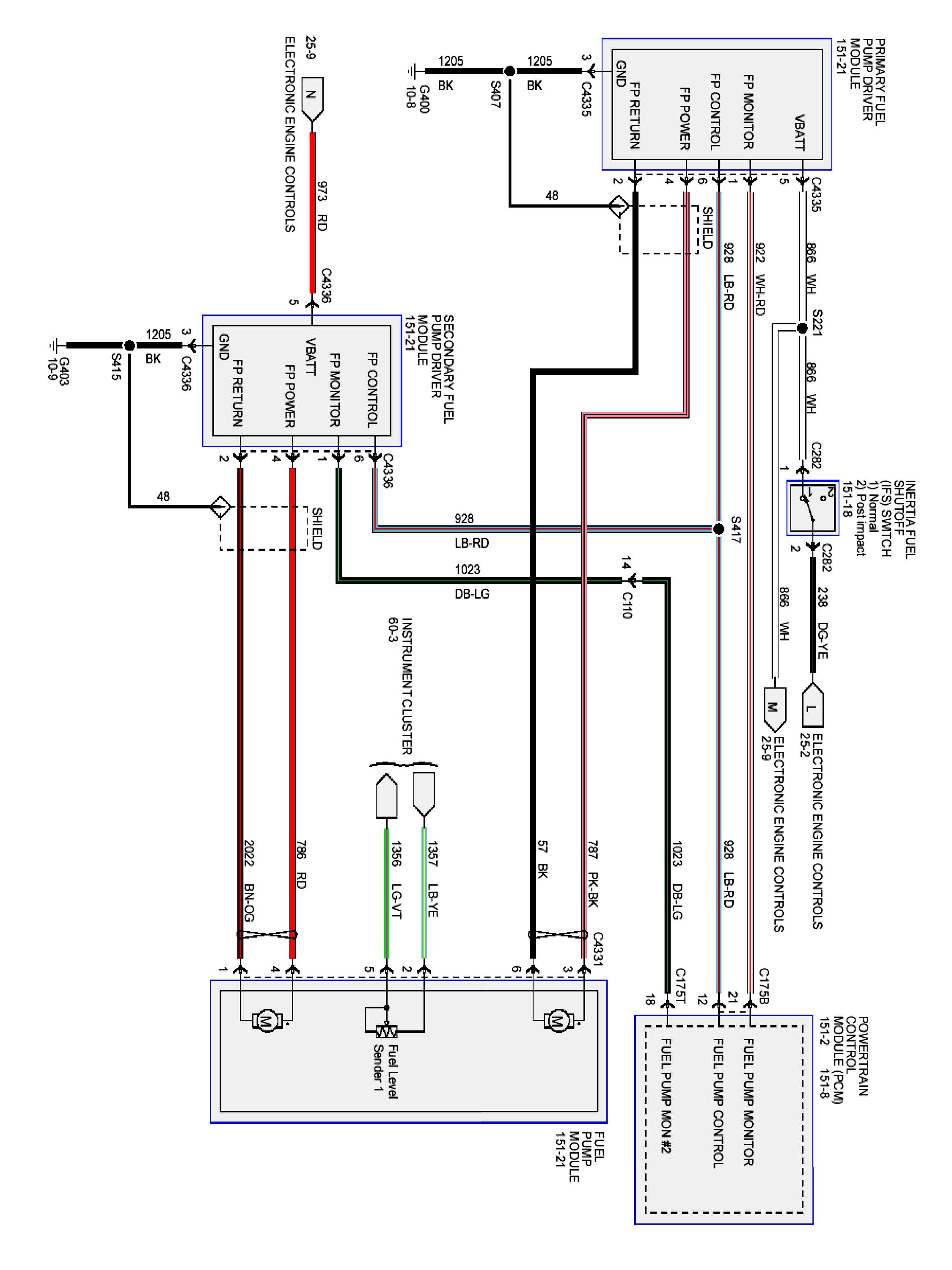

25-3:

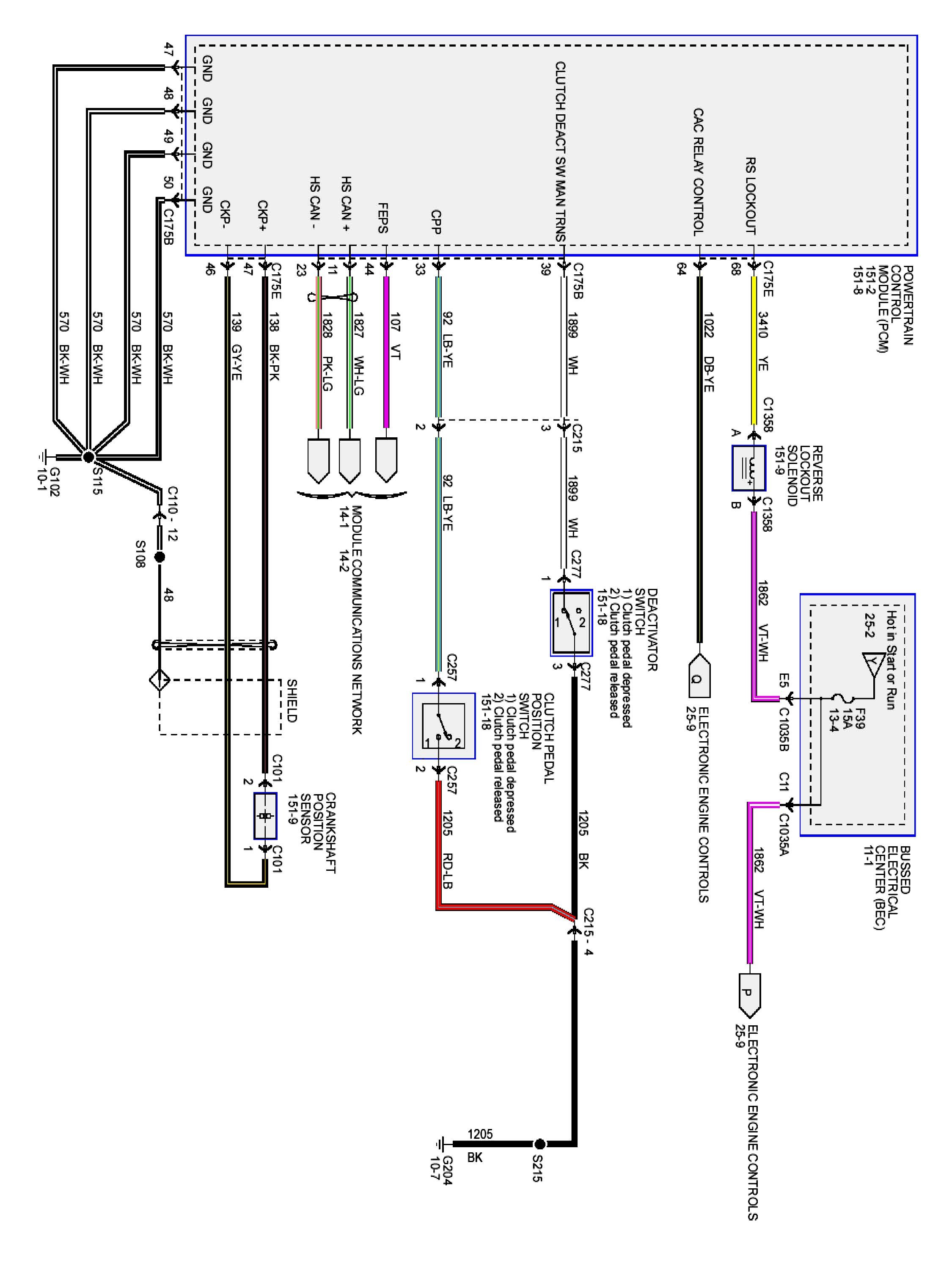

25-4:



25-5:



25-6:



25-7:



25-8:



25-9:



25-10:
