Home >> Ford >> 2007 >> Mustang V8-5.4L SC VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio, Stereo, and Compact Disc >> System Diagram

System Diagram

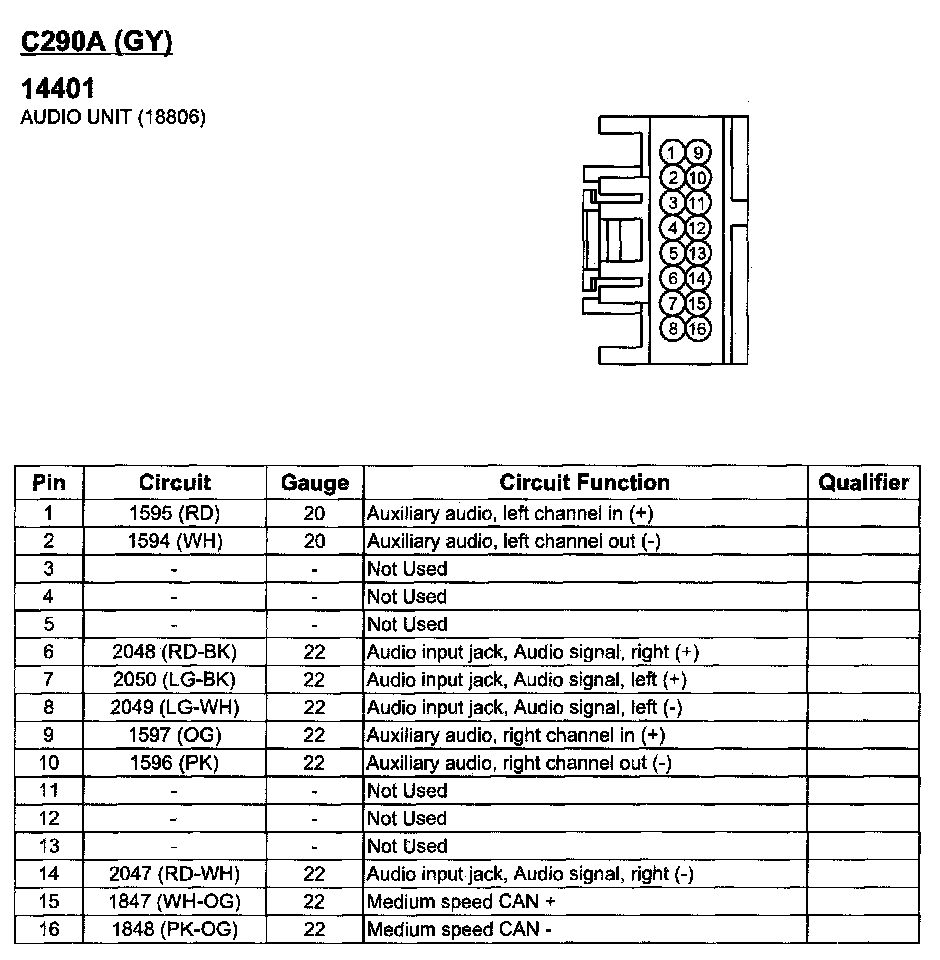

C290A:

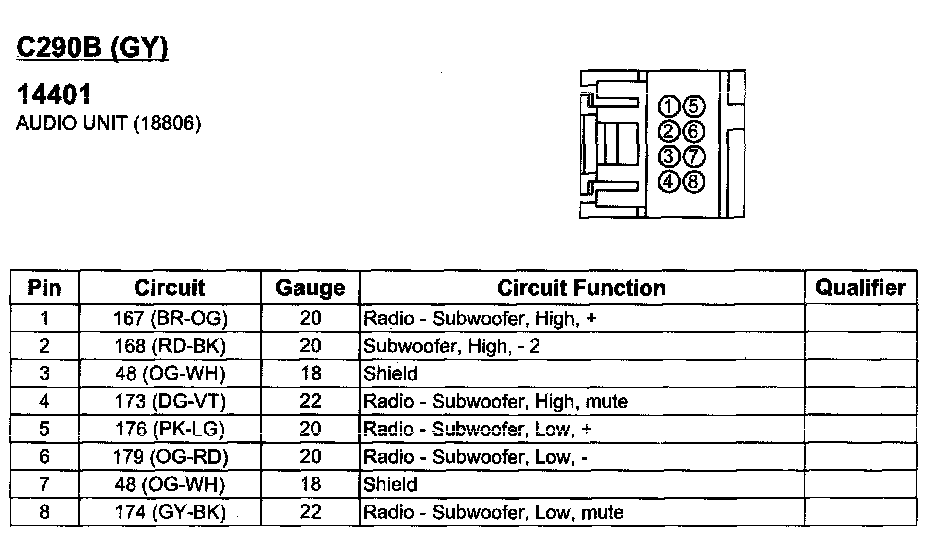

C290B:

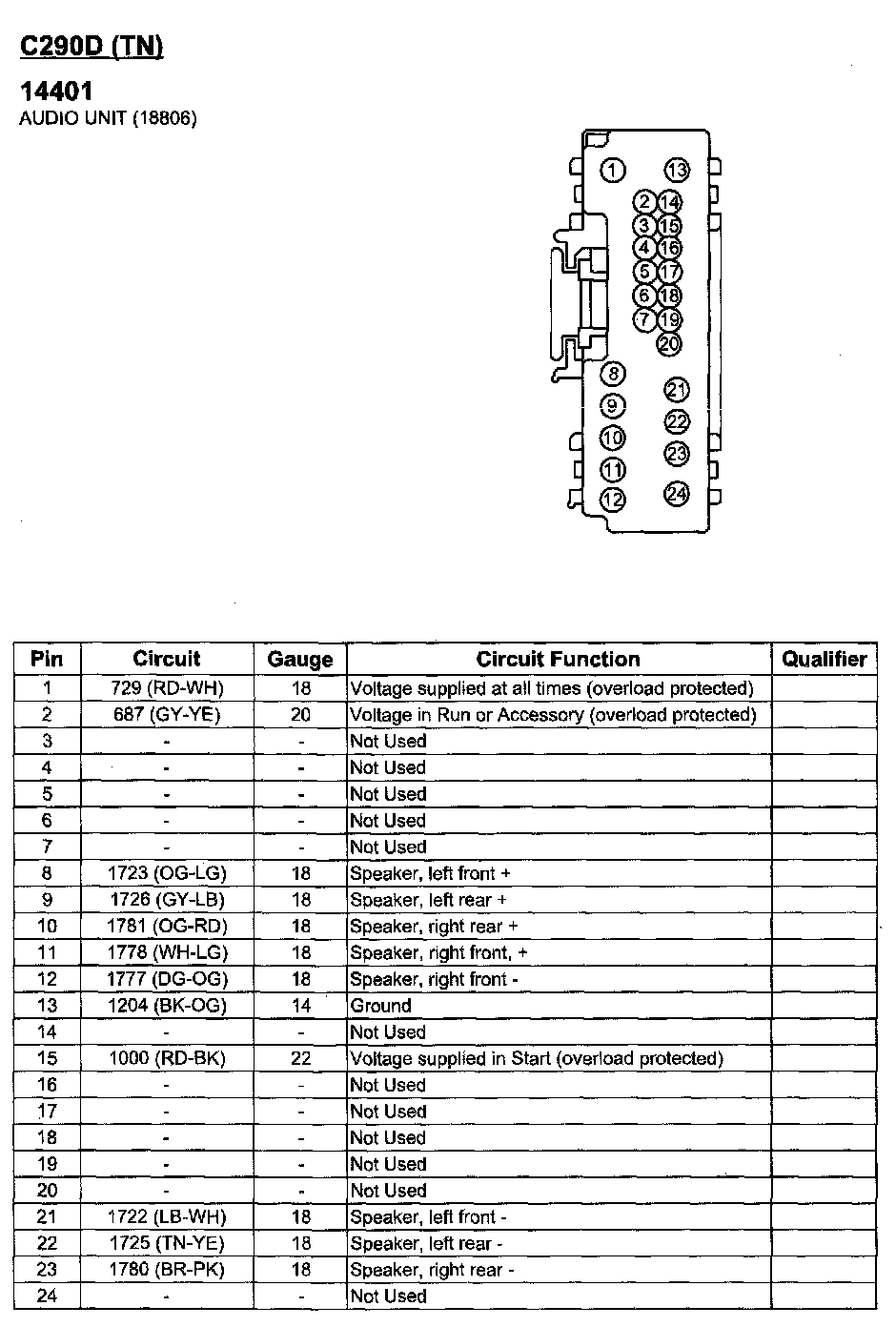

C290D:
