Rear

rwk_24436

Brake Flexible Hose

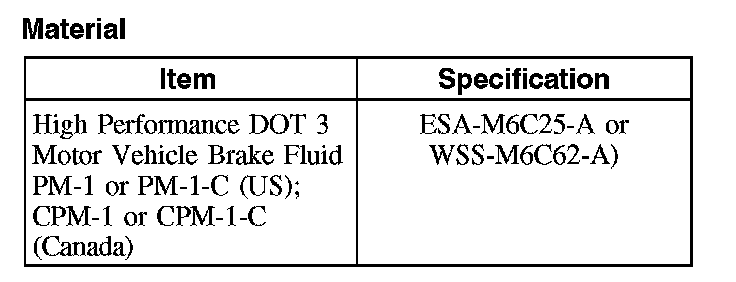

Material:

Disc Brake System - Exploded View:

Removal and Installation

WARNING: Use of any other than approved DOT 3 motor vehicle brake fluid will cause permanent damage to brake components and will render the brakes inoperative. Failure to follow these instructions may result in personal injury.

WARNING: Carefully read cautionary information on product label. For EMERGENCY MEDICAL INFORMATION seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in personal injury.

CAUTION: Brake fluid is harmful to painted and plastic surfaces. If brake fluid is spilled onto a painted or plastic surface, immediately wash it with water.

1. Remove the brake caliper flow bolt and discard the 2 copper washers.
- To install, tighten to 40 Nm (30 ft. lbs.).
2. Disconnect the brake tube fitting from the brake flexible hose.
- To install, tighten to 17 Nm (13 ft. lbs.).
3. Remove the bracket bolt and the brake hose.
- To install, tighten to 15 Nm (11 ft. lbs.).
4. To install, reverse the removal procedure.
- Bleed the brake caliper.
