Test B: The Power Seat Is Inoperative - Passenger

PINPOINT TEST B: THE POWER SEAT IS INOPERATIVE - PASSENGER

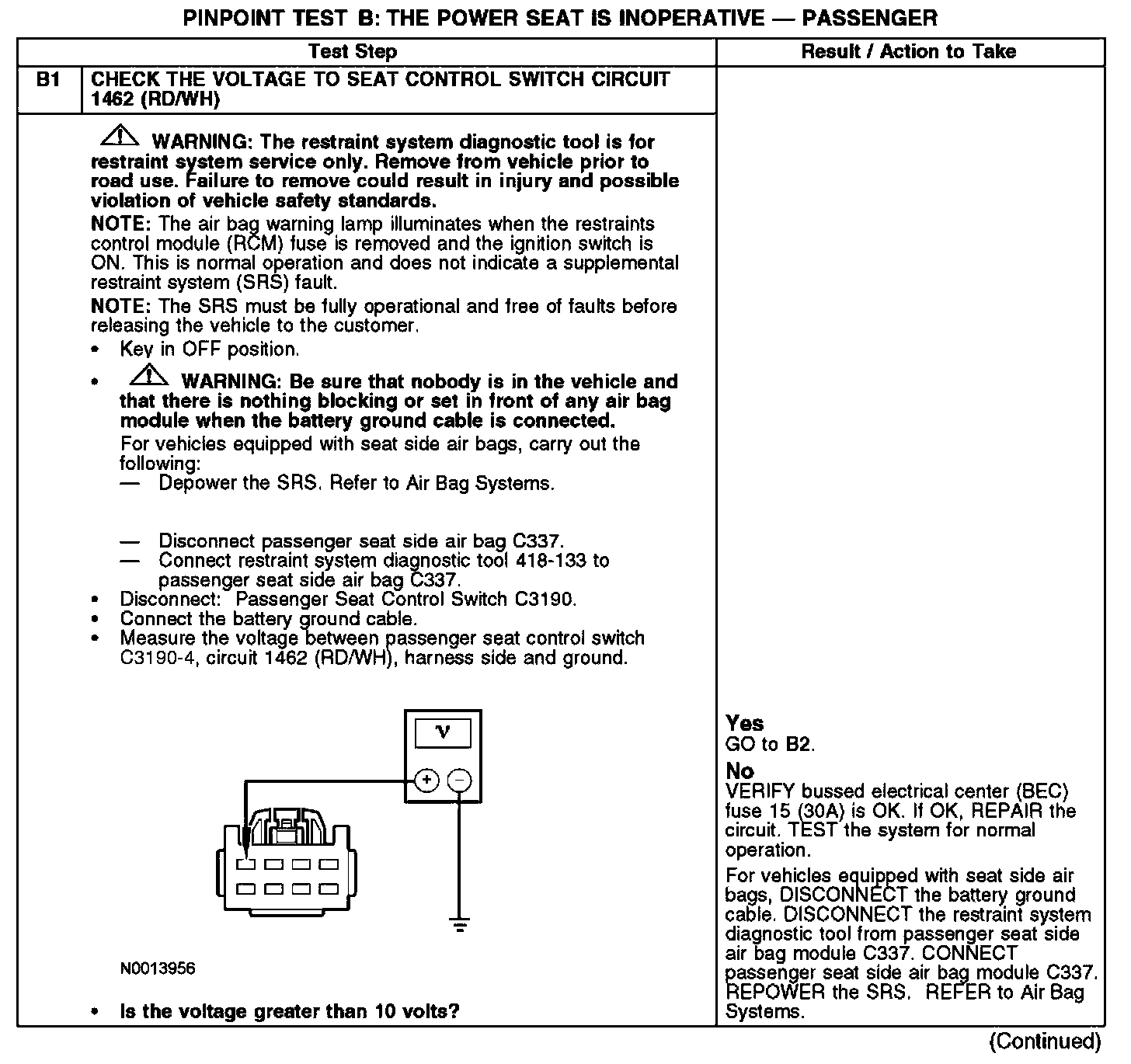

B1:

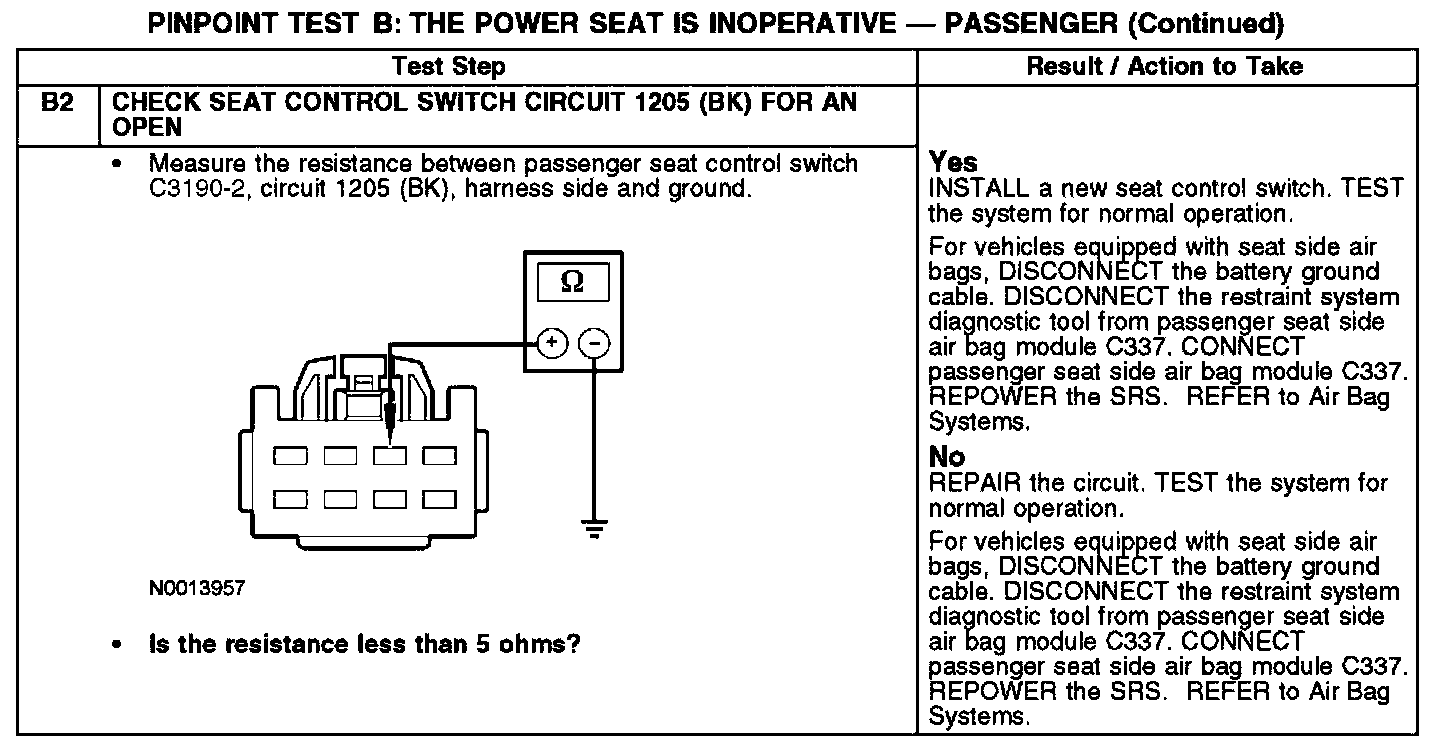

B2:

Normal Operation
The seat control switch is powered by battery voltage on circuit 1462 (RD/WH) and is supplied ground on circuit 1205 (BK).

Possible Causes
An inoperative power seat can be caused by:
- a fuse.
- wiring, terminals or connectors.
- a faulty power seat switch.
