Lumbar Assembly

LUMBAR ASSEMBLY

Front Seat Backrest (Part 1):

Front Seat Backrest (Part 2):

Driver Power Front Seat Cushion (Part 1):

Driver Power Front Seat Cushion (Part 2):

Driver Manual Front Seat Cushion (Part 1):

Driver Manual Front Seat Cushion (Part 2):

Passenger Manual Front Seat Cushion (Part 1):

Passenger Manual Front Seat Cushion (Part 2):

Passenger Power Front Seat Cushion (Part 1):

Passenger Power Front Seat Cushion (Part 2):

Exploded View

Removal and Installation

WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an airbag module. This will reduce the risk of injury in the event of an accidental deployment.
- To reduce the risk of personal injury, do not use any memory saver devices.

NOTE:
- If a seat equipped with a supplemental restraint system (SRS) component is being serviced, the supplemental restraint system (SRS) must be depowered.
- The air bag warning lamp illuminates when the restraints control module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

All seats
1. Position the seat to gain access to the seat track-to-floor nuts and bolts.
2. Depower the SRS.
3. Remove the seat.
4. Remove the front seat backrest.







5. NOTE: The plastic rivets attaching the backrest trim cover to the inboard and outboard recliners are one-time use rivets and must be installed new when the front seat backrest cover is removed or a new cover installed.

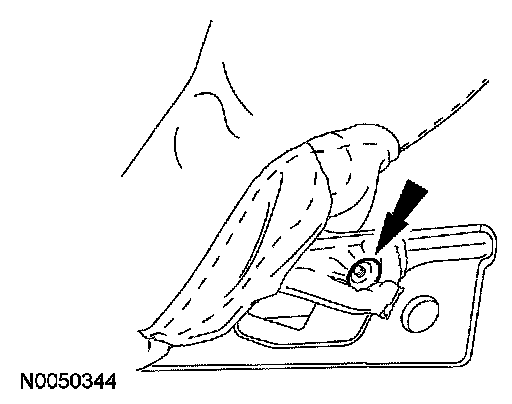

Remove the plastic rivets attaching the backrest trim cover to the inboard and outboard recliners.

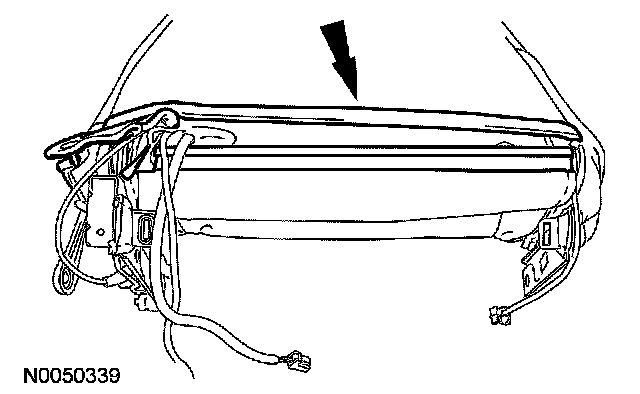

6. Release the J-strip at the back of the backrest trim cover.

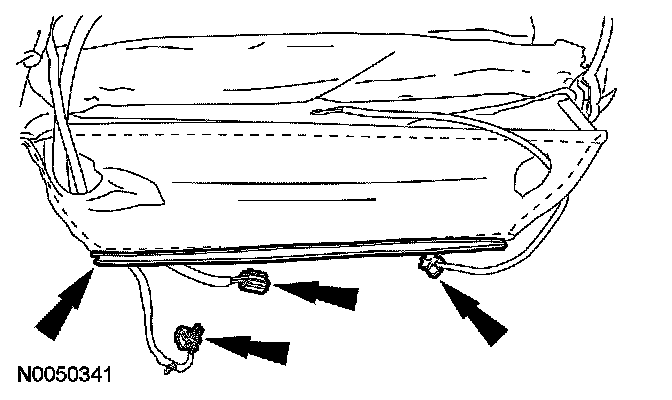

7. Release the inner J-strip at the bottom of the backrest trim cover and remove all electrical connectors.
8. Invert the backrest trim cover to expose the lumbar/backrest support assembly rods going into the backrest frame.

Seats with power lumbar







9. Disconnect the electrical connector, release the 4 retainers (2 shown) and slide the rods out of the backrest frame and remove the lumbar assembly.

Seats with manual lumbar
10. Remove the 2 side springs. Release the 2 pin-type retainers at the bottom, slide the rods out of the backrest frame at the top and remove the lumbar assembly.
11. To install, reverse the removal procedure.
12. Install the front seat backrest.
13. Install the seat.
14. Repower the SRS.
