Instrument Panel Center Finish Panel

INSTRUMENT PANEL CENTER FINISH PANEL







Removal and Installation
1. Remove the floor console.

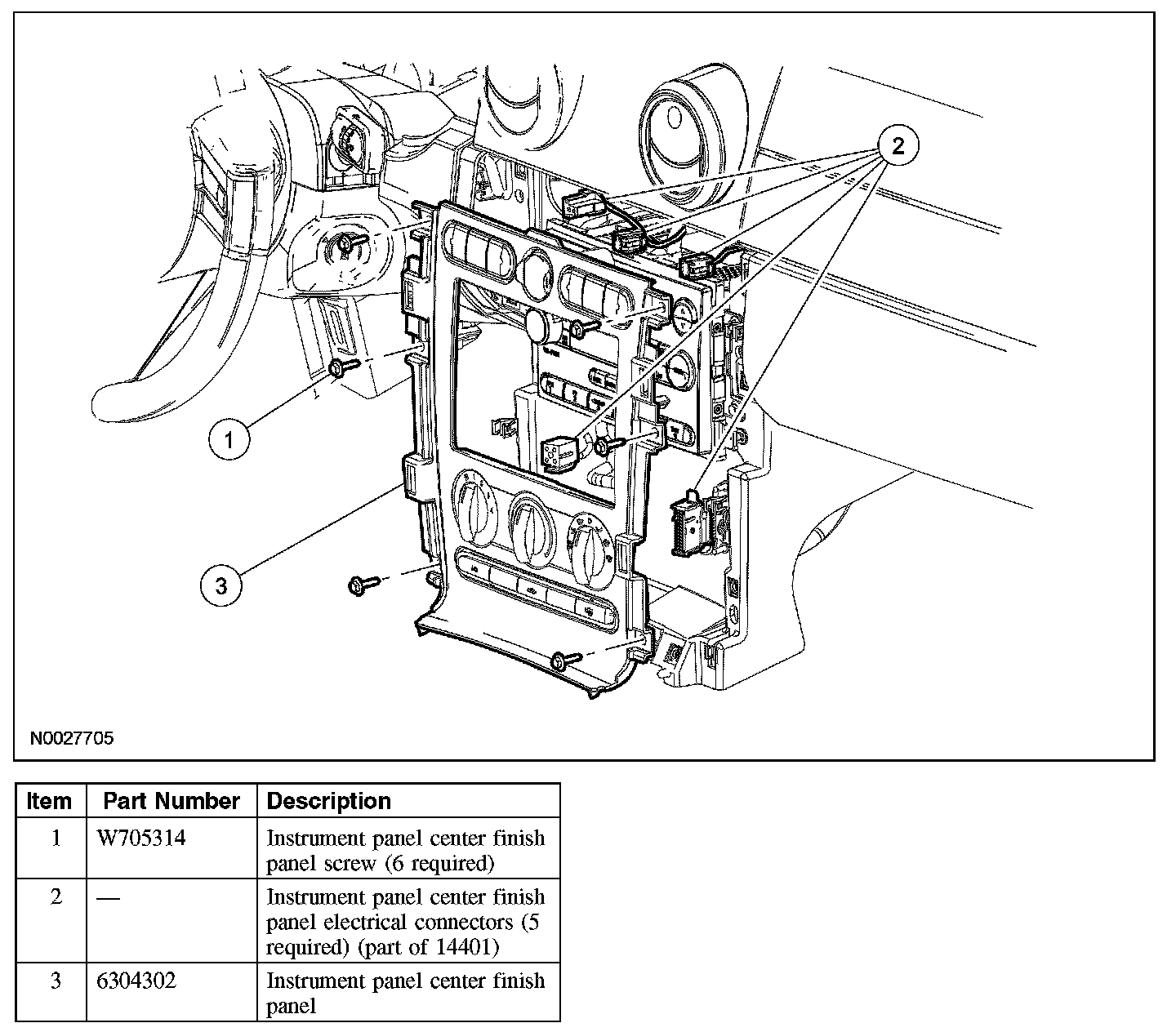

2. Remove the 6 screws and remove the instrument panel center finish panel.
- Disconnect the electrical connectors.

3. NOTE: Be sure that all climate control assembly electrical connectors are securely fastened before installing the center instrument panel finish panel.

To install, reverse the removal procedure.
