Front Fender: Service and Repair

FENDER

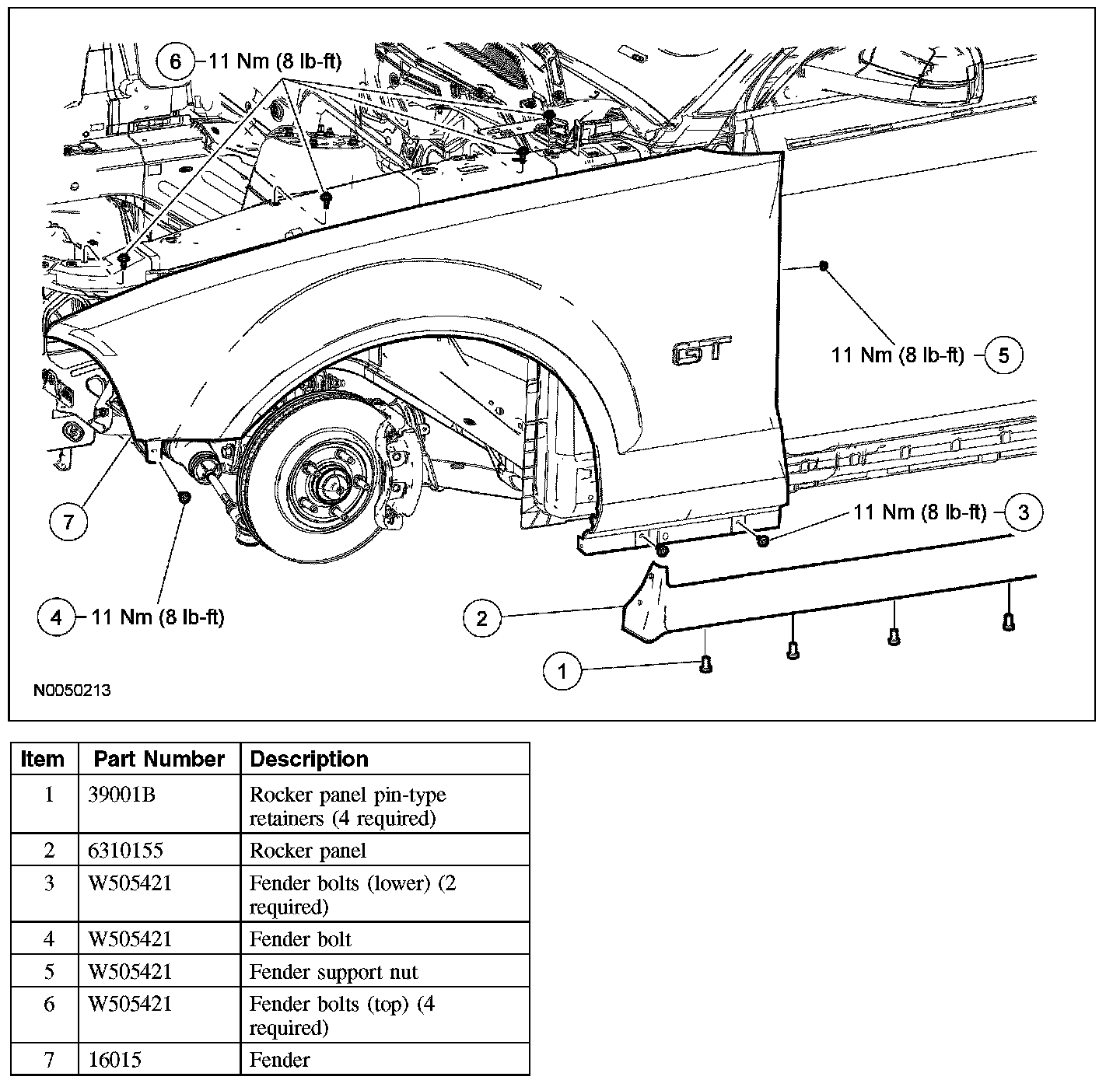

Removal and Installation

Both fenders
1. Remove the front bumper cover.
2. Remove the fender splash shield.
3. Remove the 4 front rocker panel pin-type retainers and position the rocker panel aside.
4. Remove the 2 lower fender bolts.
- To install, tighten to 11 Nm (8 lb-ft).

5. Remove the fender bolt.

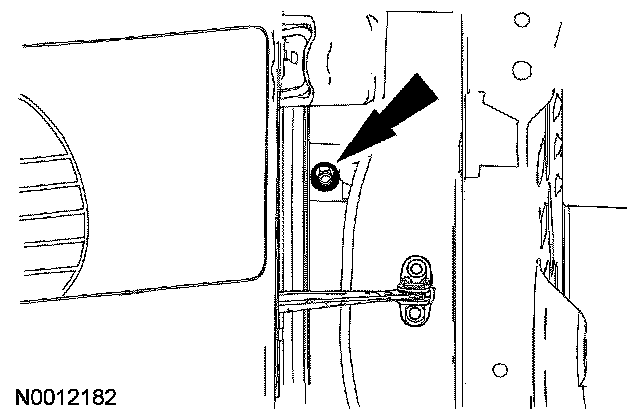

6. Remove the fender support nut through the door opening.
- To install, tighten to 11 Nm (8 lb-ft).

Right fender
7. Disconnect the antenna lead-in cable.
8. Disconnect the hood ajar switch.

Both fenders
9. Remove the 4 top fender bolts and the fender.
- To install, tighten to 11 Nm (8 lb-ft).

10. To install, reverse the removal procedure.
