Cowl Moulding / Trim: Service and Repair

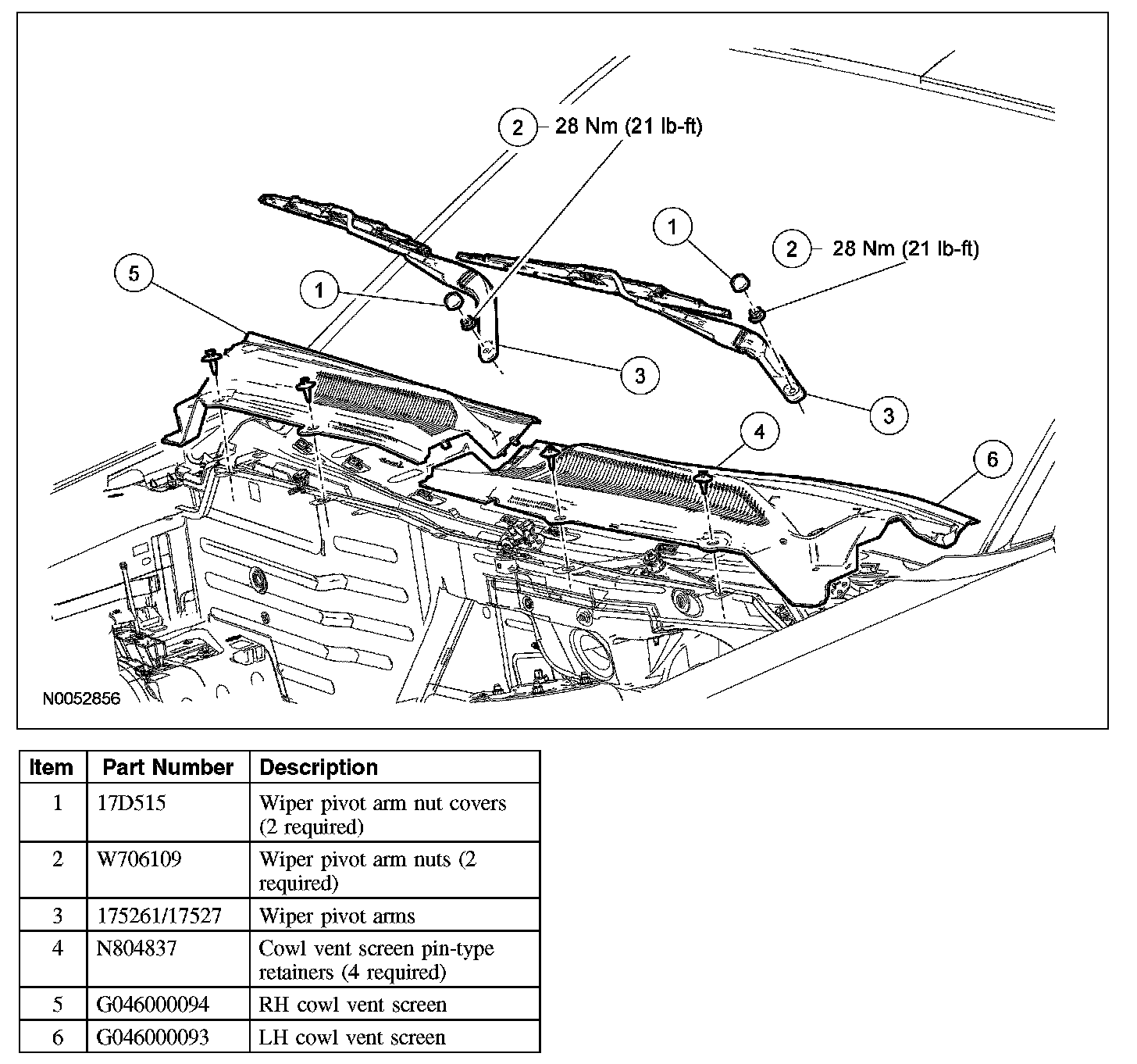

COWL VENT SCREEN







Removal and Installation
1. Remove the 2 wiper pivot arms.
2. Remove the 4 cowl vent screen pin-type retainers.

3. NOTE: The RH cowl vent screen overlaps the LH cowl vent screen and must be removed first.

Remove the RH and LH cowl vent screens.

4. To install, reverse the removal procedure.
