Trunk / Liftgate Latch: Service and Repair

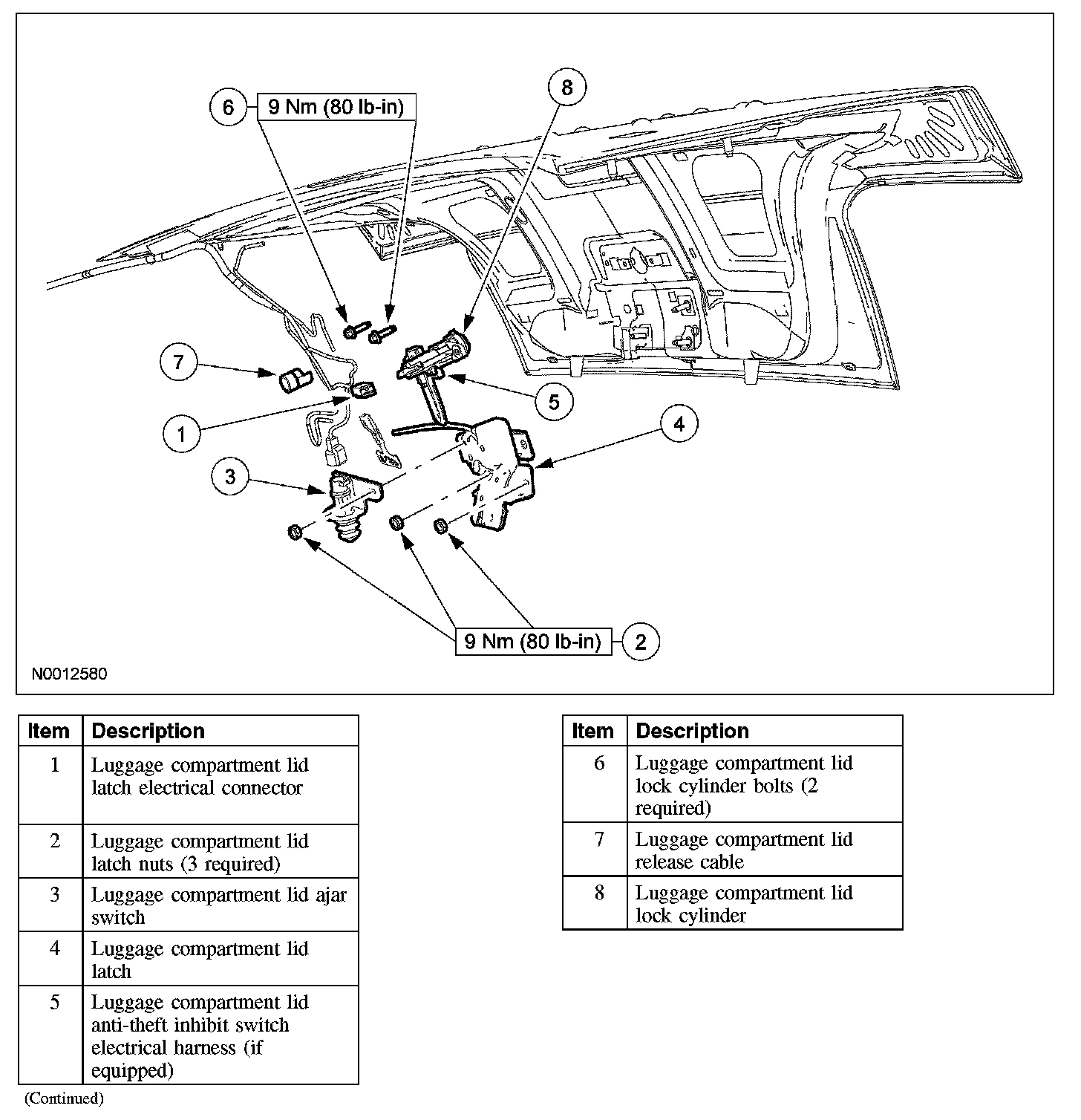

LUGGAGE COMPARTMENT LID LATCH







Removal and Installation
1. Remove the luggage compartment lid trim panel.
2. Disconnect the luggage compartment lid latch actuator cable from the luggage compartment lid lock cylinder.
3. Disconnect the luggage compartment lid latch electrical connector.







4. NOTE: Mark the location of the luggage compartment lid latch to aid installation.

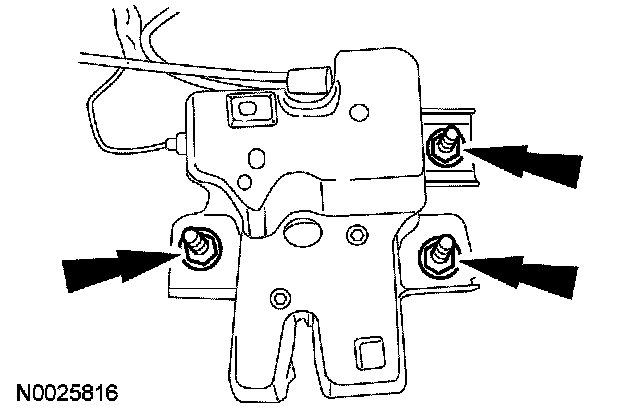

Remove the 3 luggage compartment lid latch nuts.
- To install, tighten to 9 Nm (80 lb-in).

5. Position the luggage compartment lid ajar switch aside.
6. Remove the luggage compartment lid latch.
7. To install, reverse the removal procedure.
- Lubricate the luggage compartment lid latch after installation.
