Front Bumper Reinforcement: Service and Repair

BUMPER - FRONT

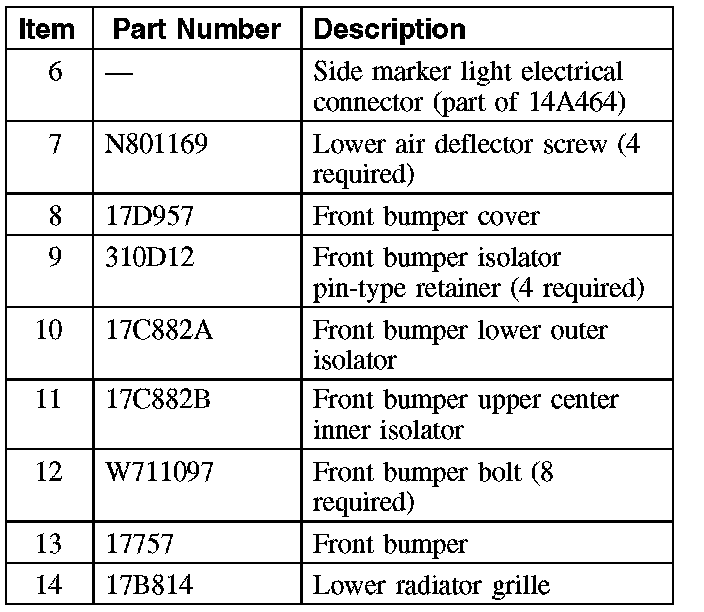

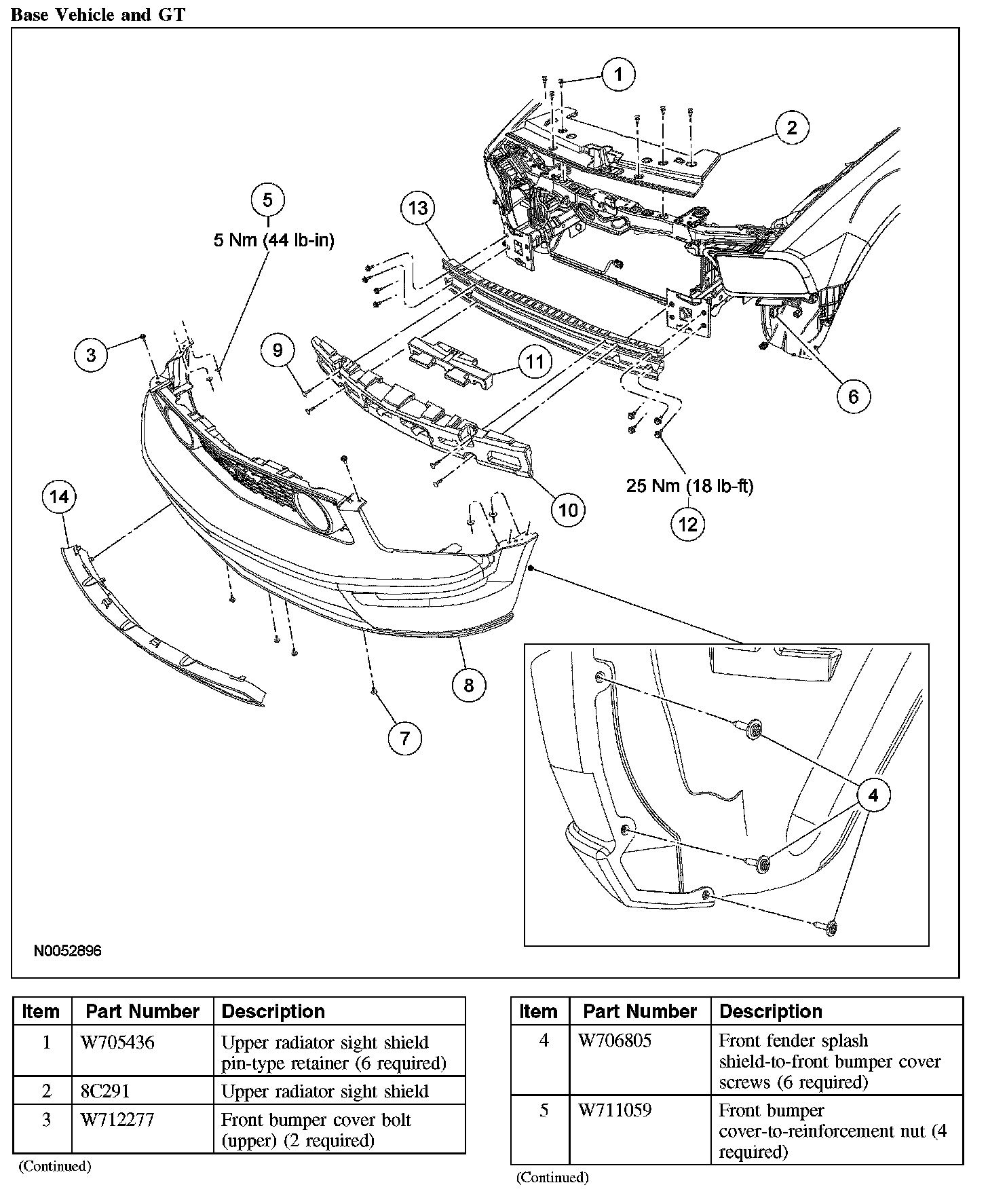

Base Vehicle And GT (Part 1):

Base Vehicle And GT (Part 2):

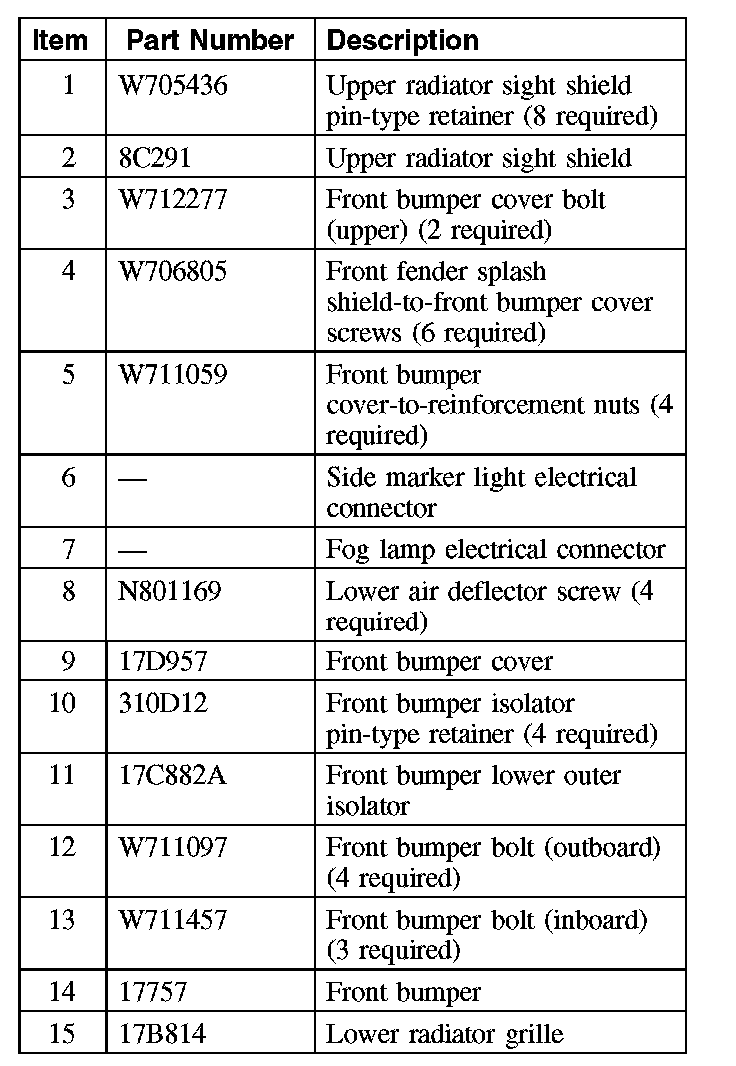

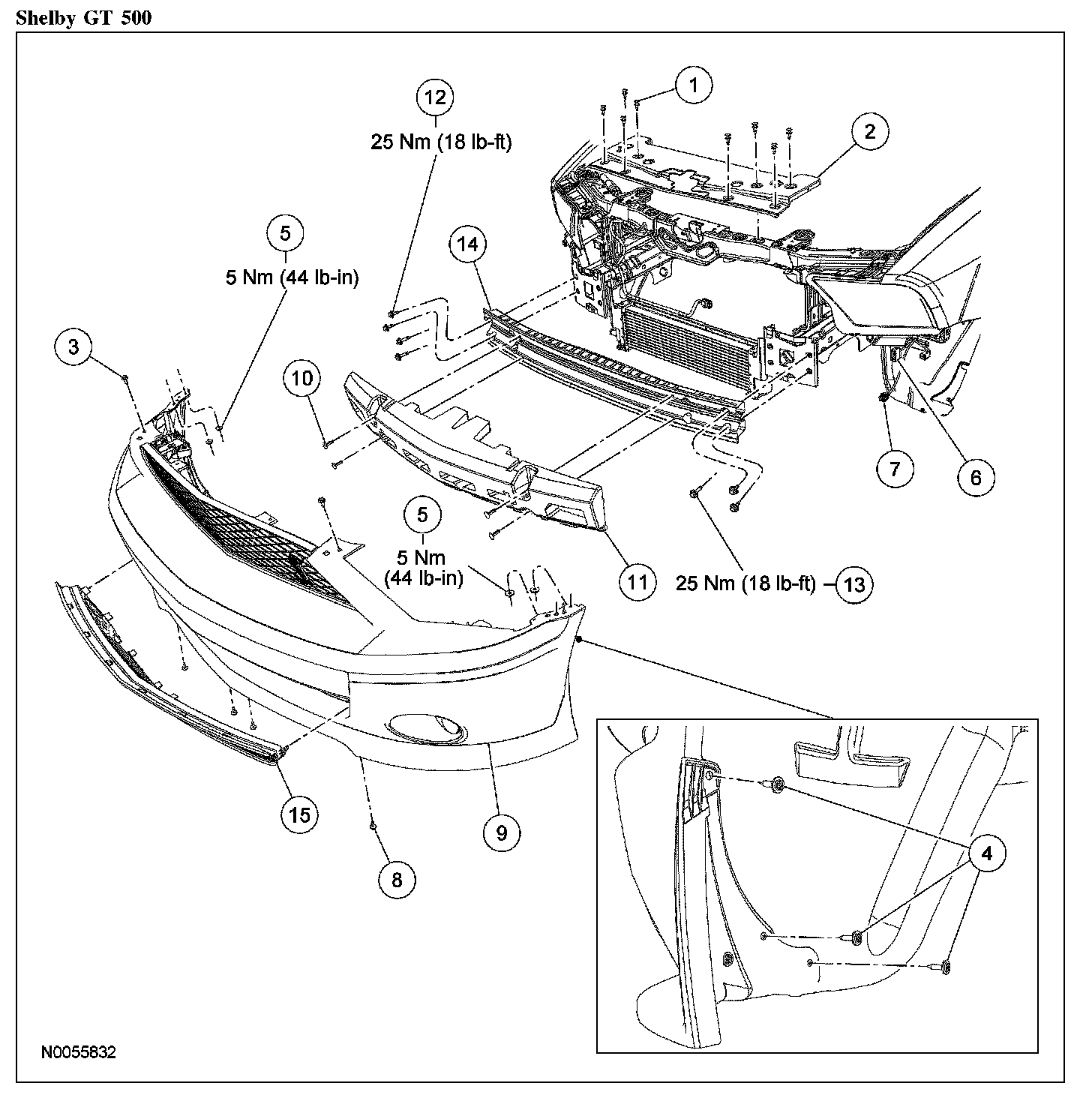

SheIby GT 500 (Part 1):

SheIby GT 500 (Part 2):

Exploded View

Removal and Installation
1. Remove the front bumper cover.
2. Remove the 4 front bumper isolator pin-type retainers and the front bumper lower outer and upper center inner isolators.
3. Drill out the 6 front bumper spot welds.
4. Remove the front bumper bolts and the front bumper.
- Eight required (Base vehicle and GT).
- Seven required (Shelby GT 500).
- To install, tighten to 25 Nm (18 lb-ft).

5. NOTE: Spot welding the bumper is not required for installation.

To install, reverse the removal procedure.
