Test D: The Subwoofer Is Inoperative/Does Not Operate Correctly - Rear Subwoofer

PINPOINT TEST D: THE SUBWOOFER IS INOPERATIVE/DOES NOT OPERATE CORRECTLY - REAR SUBWOOFER

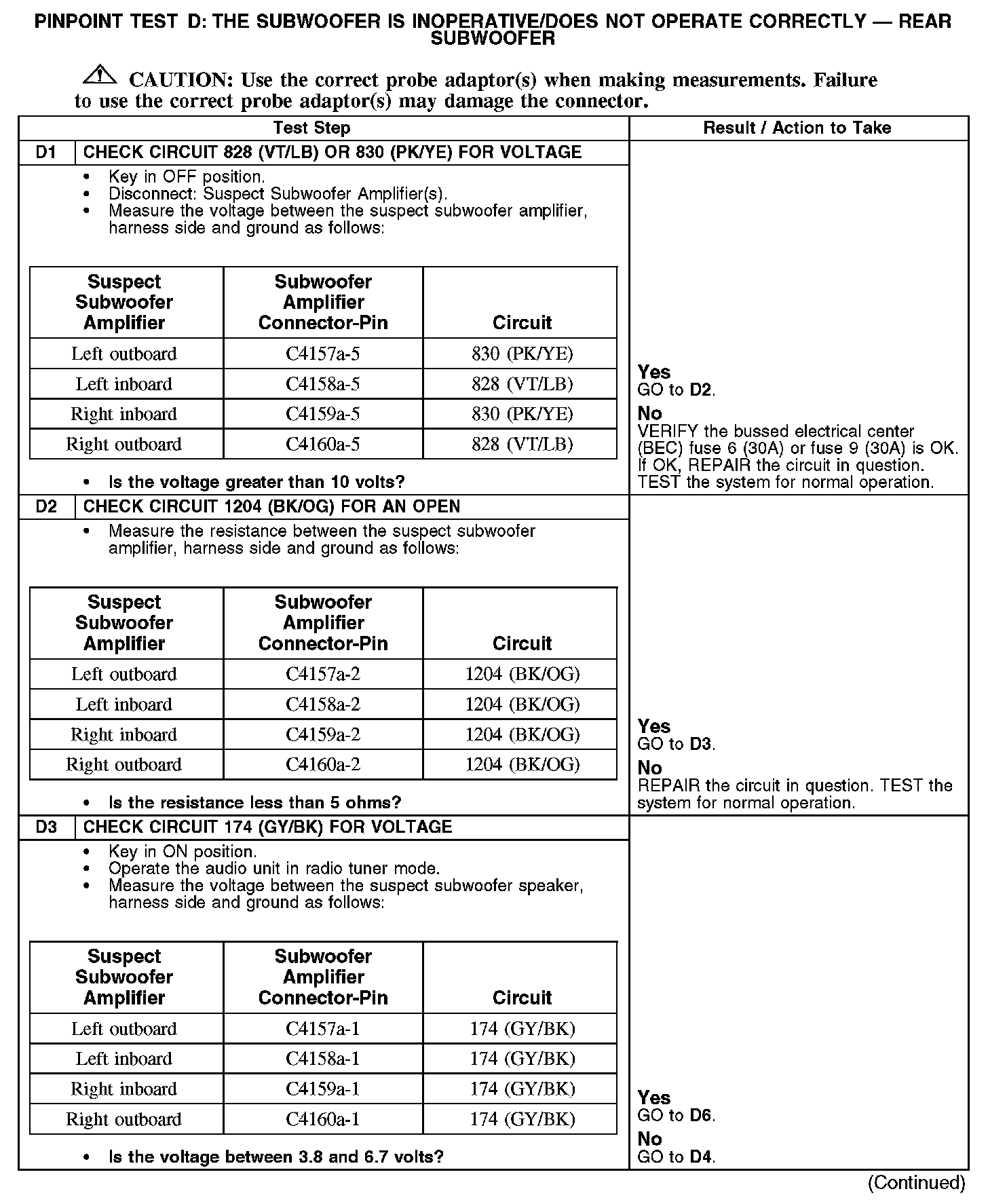

D1-D3:

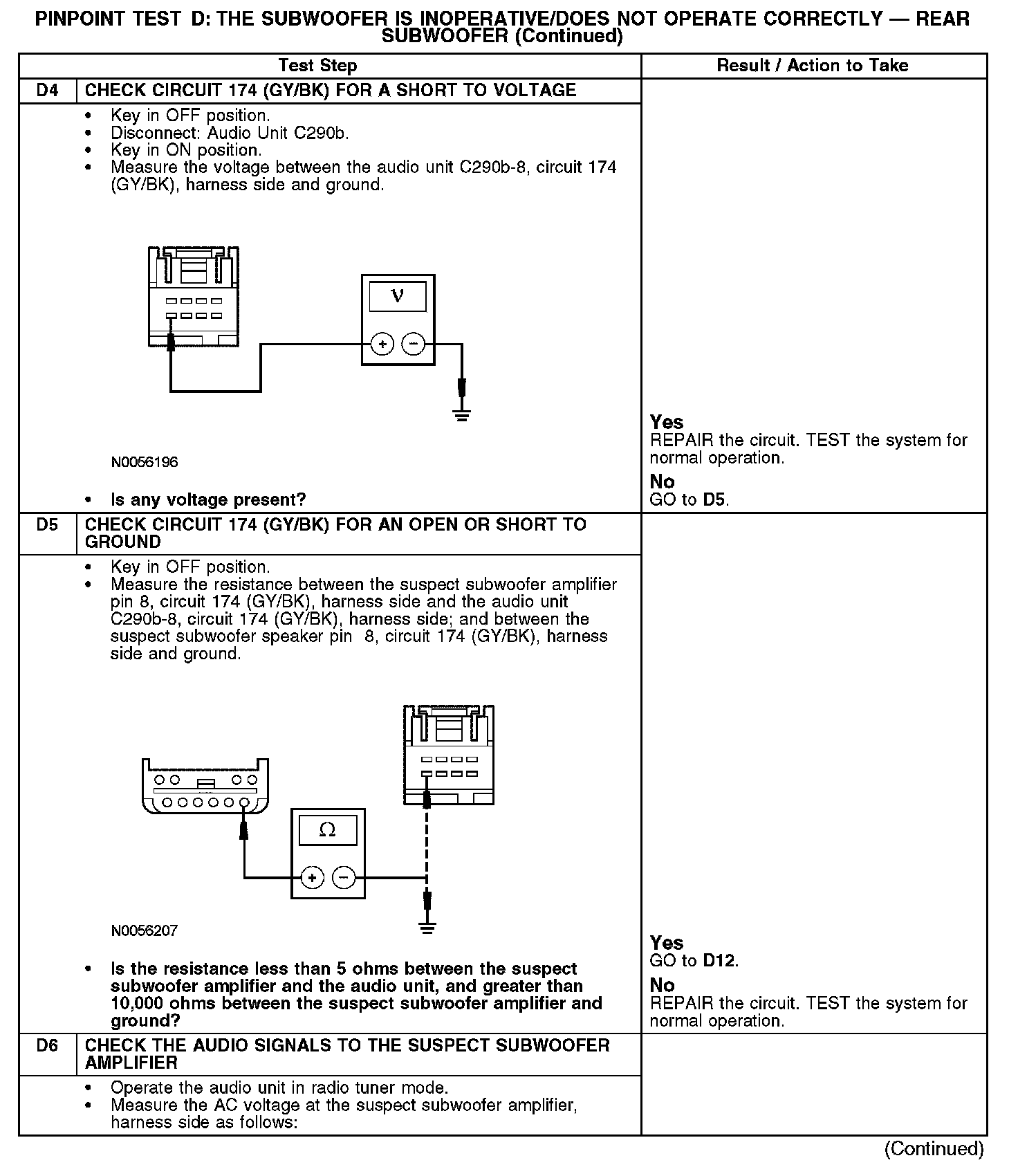

D4-D6:

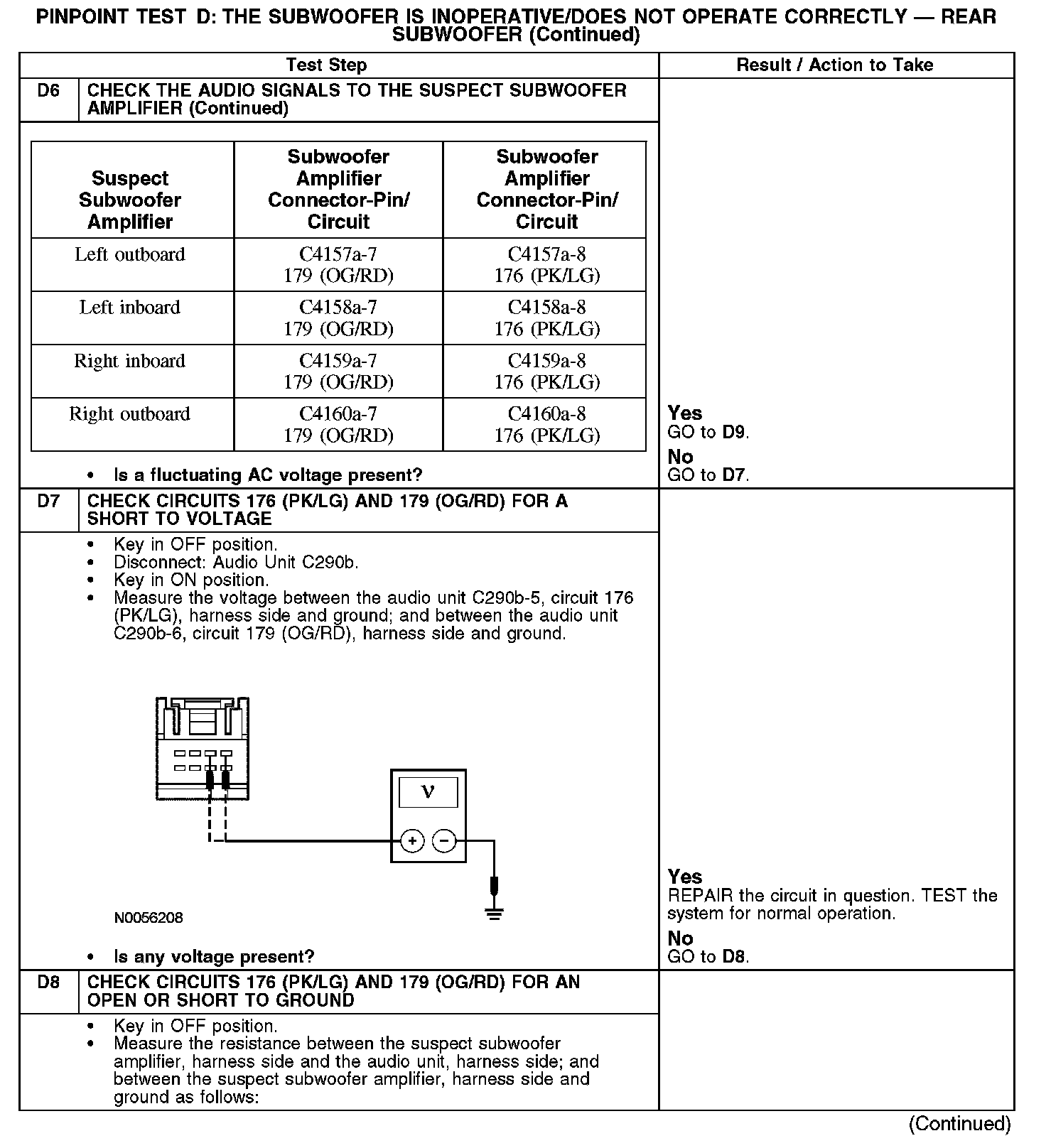

D6-D8:

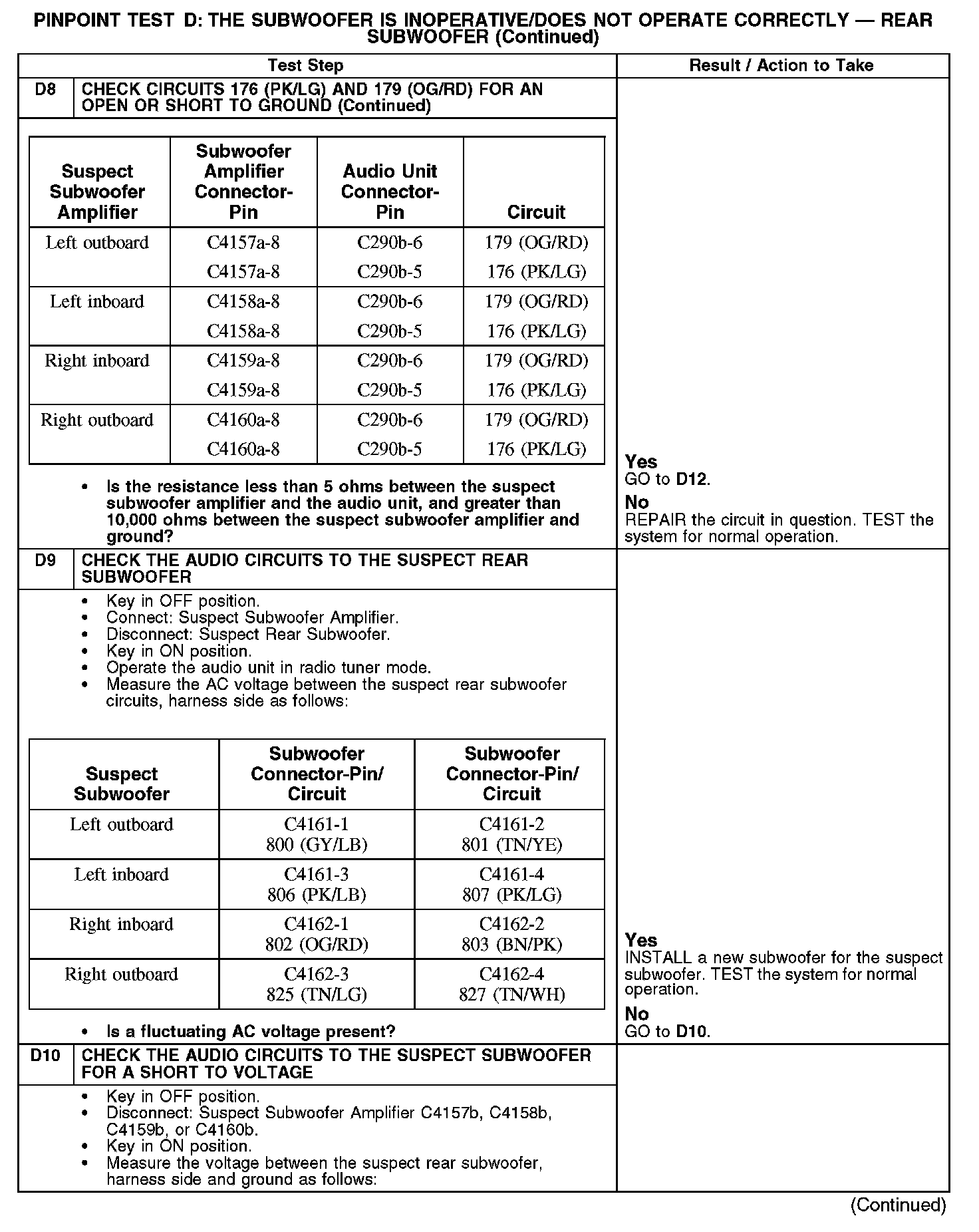

D8-D10:

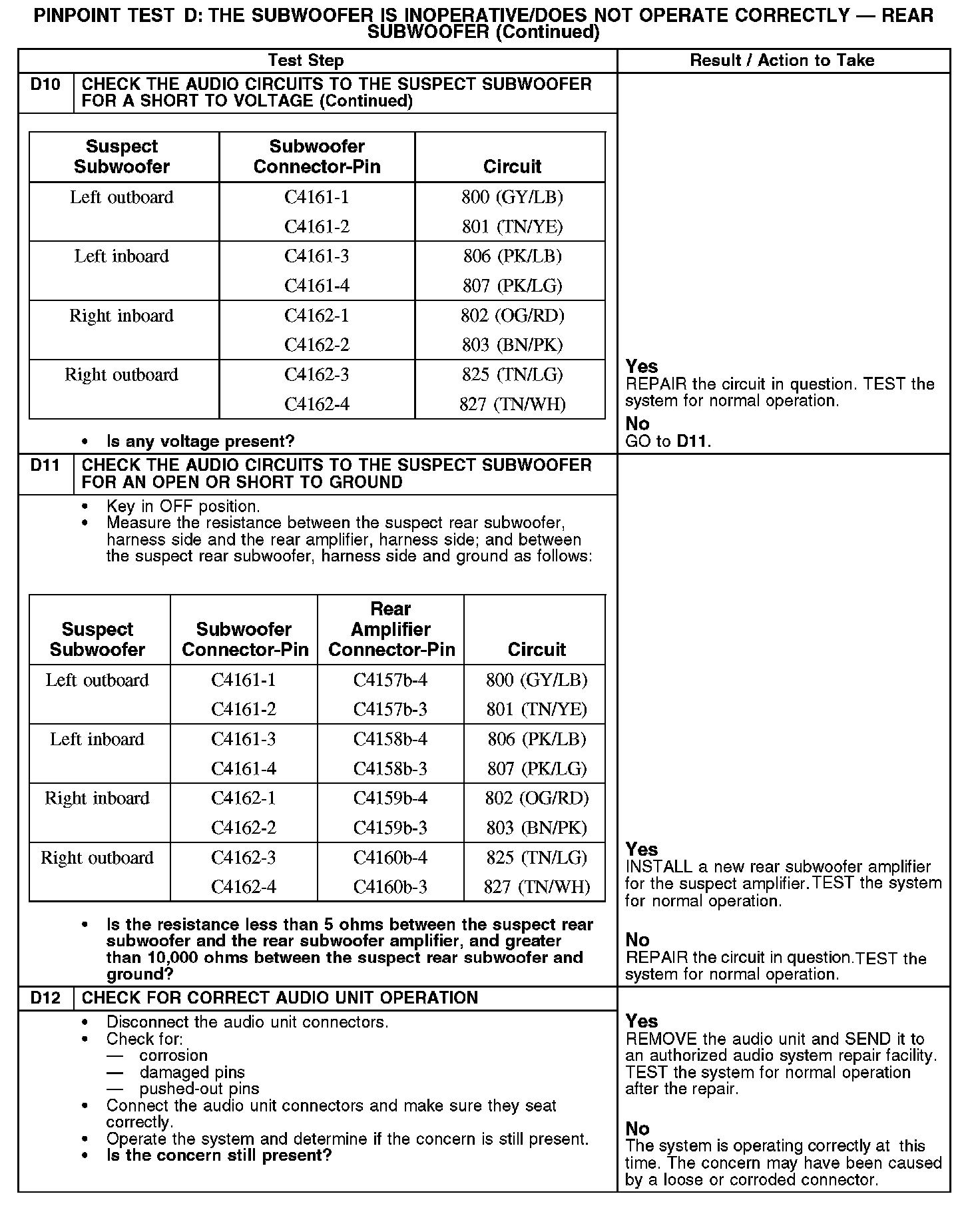

D10-D12:

Normal Operation
The rear subwoofers are powered by a separate subwoofer amplifier for each subwoofer speaker. The enable/clip circuit 174 (GY/BK) carries out 2 functions: to turn on the subwoofer amplifiers, and monitor an overload condition to the subwoofer amplifiers. In the event of an overload, the audio unit clips the audio output signal to the subwoofer amplifiers (heard as distortion). The rear subwoofer amplifiers receive voltage through circuit 828 (VT/LB) (right subwoofers) or circuit 830 (PK/YE) (left subwoofers), and ground through circuit 1204 (BK/OG).

Possible Causes
- Fuse
- Circuit 174 (GY/BK) open or short to ground
- Circuit 176 (PK/LG) open or short to ground
- Circuit 179 (OG/RD) open or short to ground
- Circuit 800 (GY/LB) open or short to ground
- Circuit 801 (TN/YE) open or short to ground
- Circuit 802 (OG/RD) open or short to ground
- Circuit 803 (BN/PK) open or short to ground
- Circuit 806 (PK/LB) open or short to ground
- Circuit 807 (PK/LG) open or short to ground
- Circuit 825 (TN/LG) open or short to ground
- Circuit 827 (TN/WH) open or short to ground
- Circuit 828 (VT/LB) open
- Circuit 830 (PK/YE) open
- Circuit 1204 (BK/OG) open
- Subwoofer amplifier
- Subwoofer
- Audio unit
