Test A: Poor Reception - AM/FM

PINPOINT TEST A: POOR RECEPTION - AM/FM

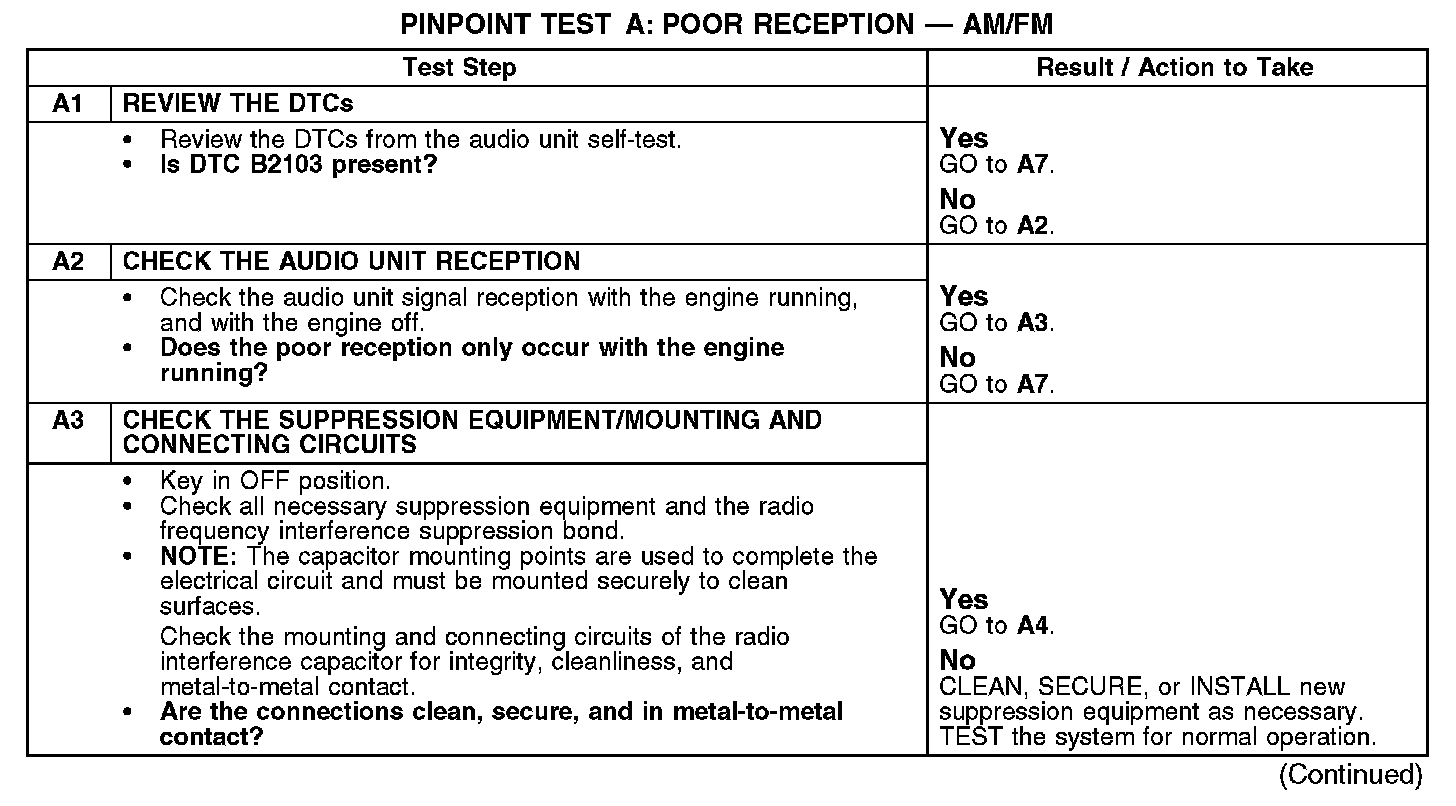

A1-A3:

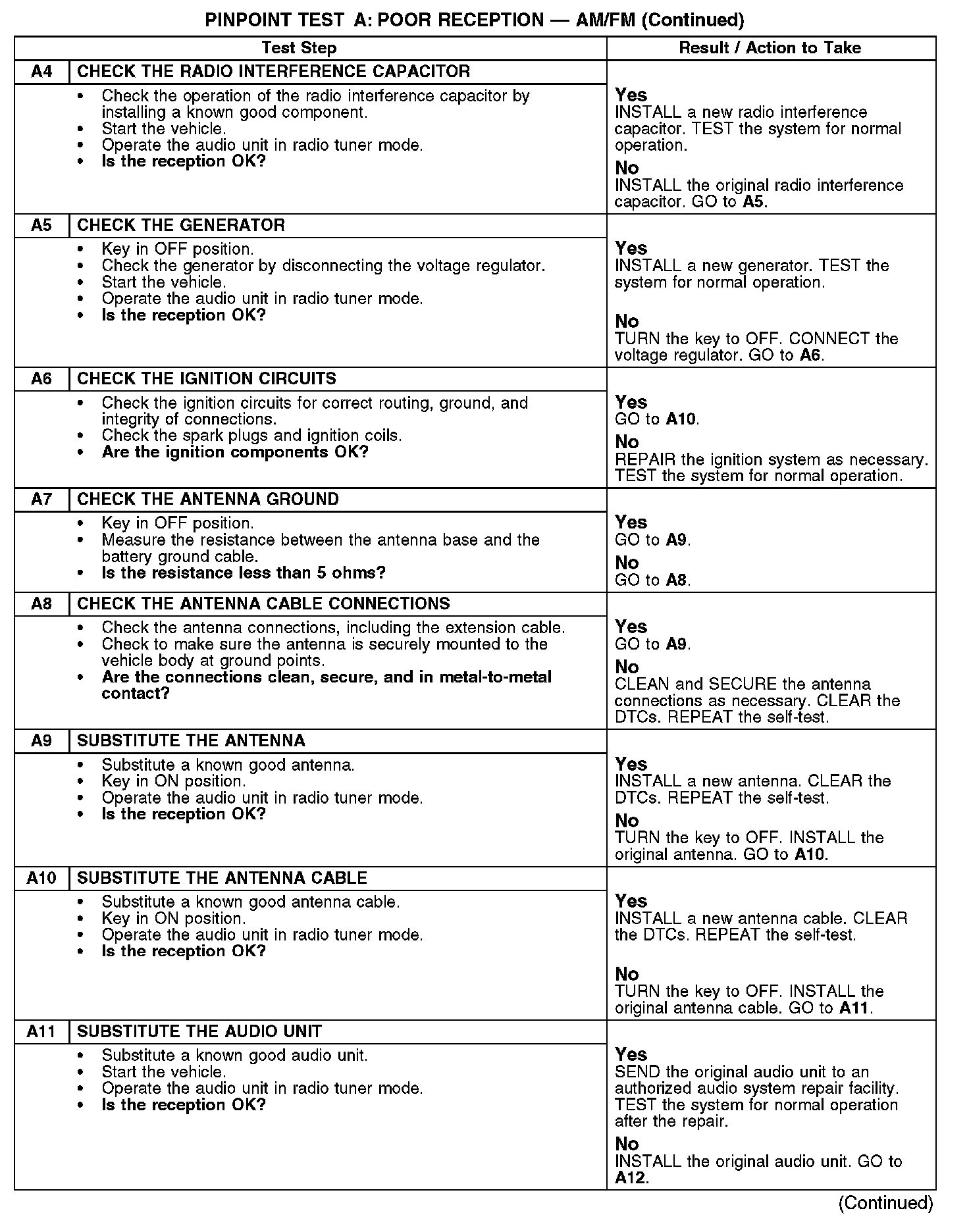

A4-A11:

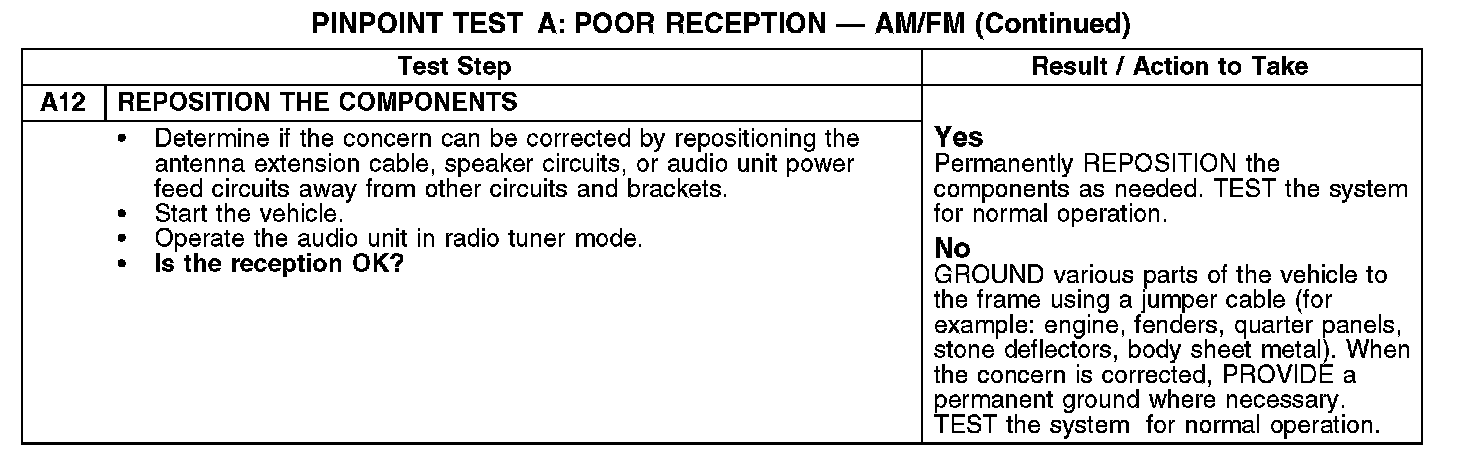

A12:

Normal Operation
The noise suppression equipment reduces interference transmitted through the speakers by the engine ignition and electrical systems.

DTC B2103 - sets when an open is detected in the antenna circuit.

Possible Causes
- Antenna
- Antenna cable(s)
- Charging system
- Ignition system
- Noise suppression equipment
- Audio unit
