Subwoofer Speaker

SUBWOOFER SPEAKER

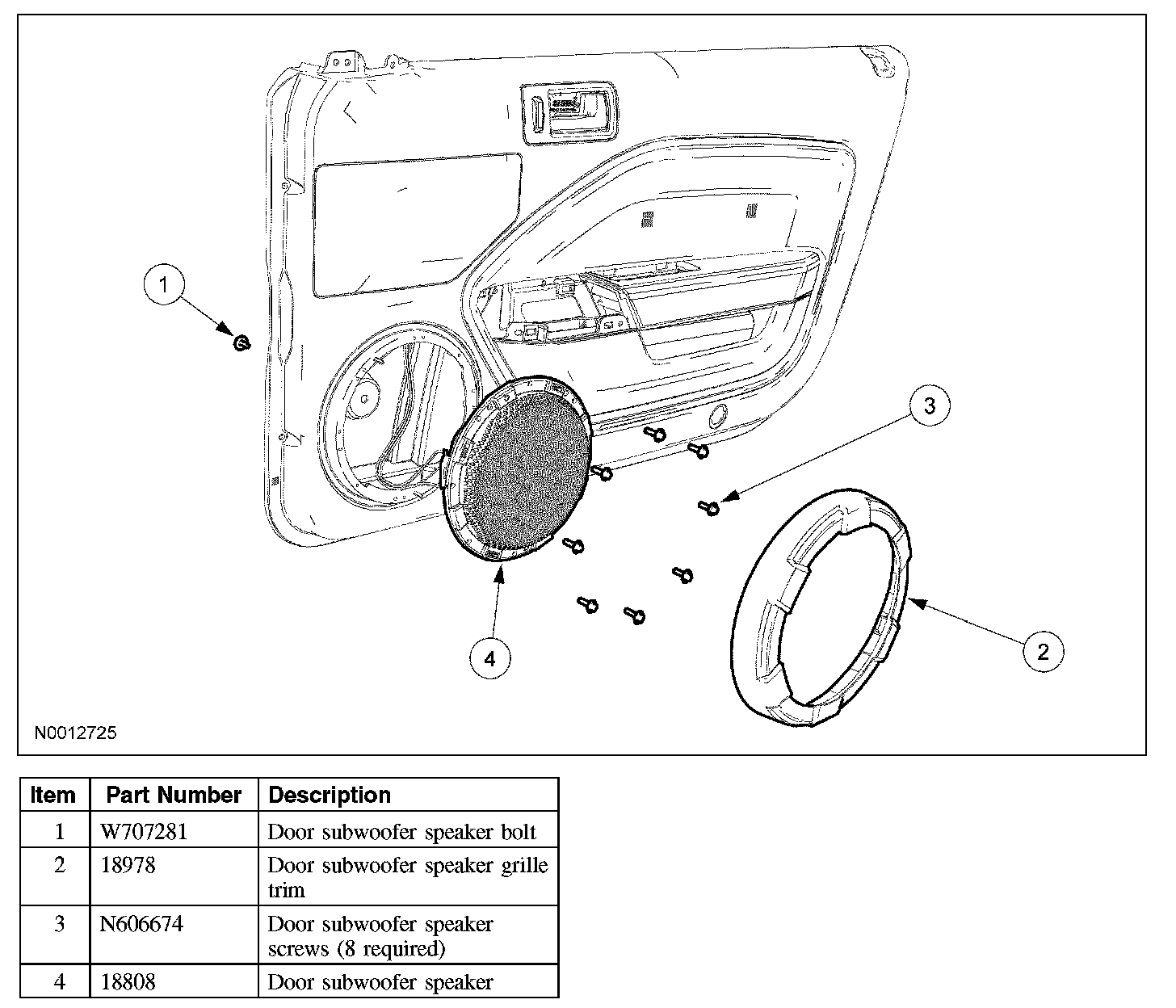

Removal and Installation
1. Remove the door trim panel.
2. Remove the door subwoofer speaker grille trim.
3. Remove the door subwoofer speaker bolt.
4. Remove the 8 screws and the door subwoofer speaker.
- Push the wiring harness grommet through the door trim panel.
- Disconnect the electrical connector.

5. To install, reverse the removal procedure.
