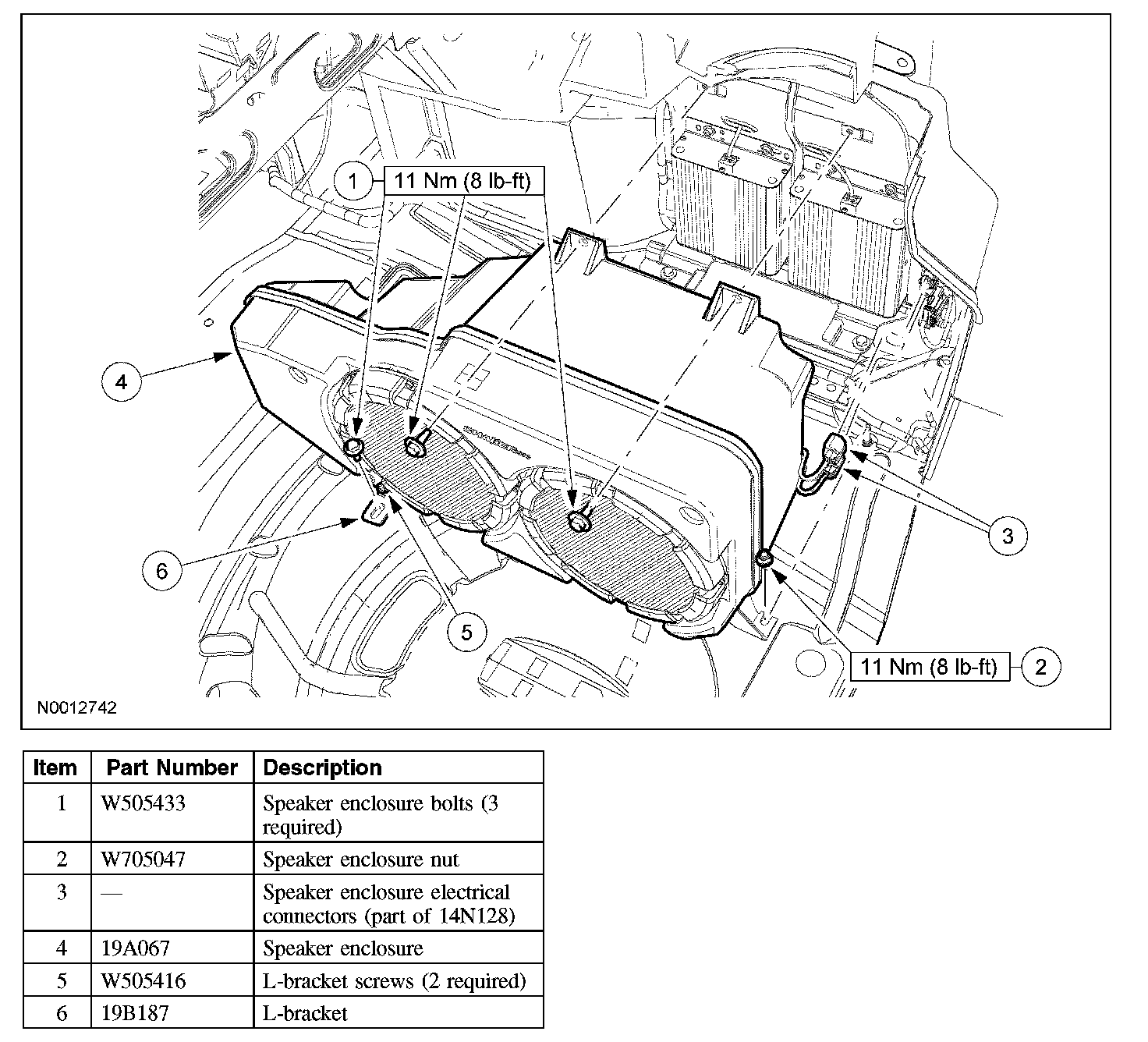

Speaker Enclosure

SPEAKER ENCLOSURE







Removal and Installation
1. Remove the 3 speaker enclosure bolts.
- To install, tighten to 11 Nm (8 lb-ft).

2. Remove the nut and the speaker enclosure.
- To install, tighten to 11 Nm (8 lb-ft).
- Disconnect the electrical connectors.

3. To install, reverse the removal procedure.
