Home >> Ford >> 2007 >> Mustang V8-5.4L SC VIN S >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Anti-Theft - Perimeter

Anti-Theft - Perimeter

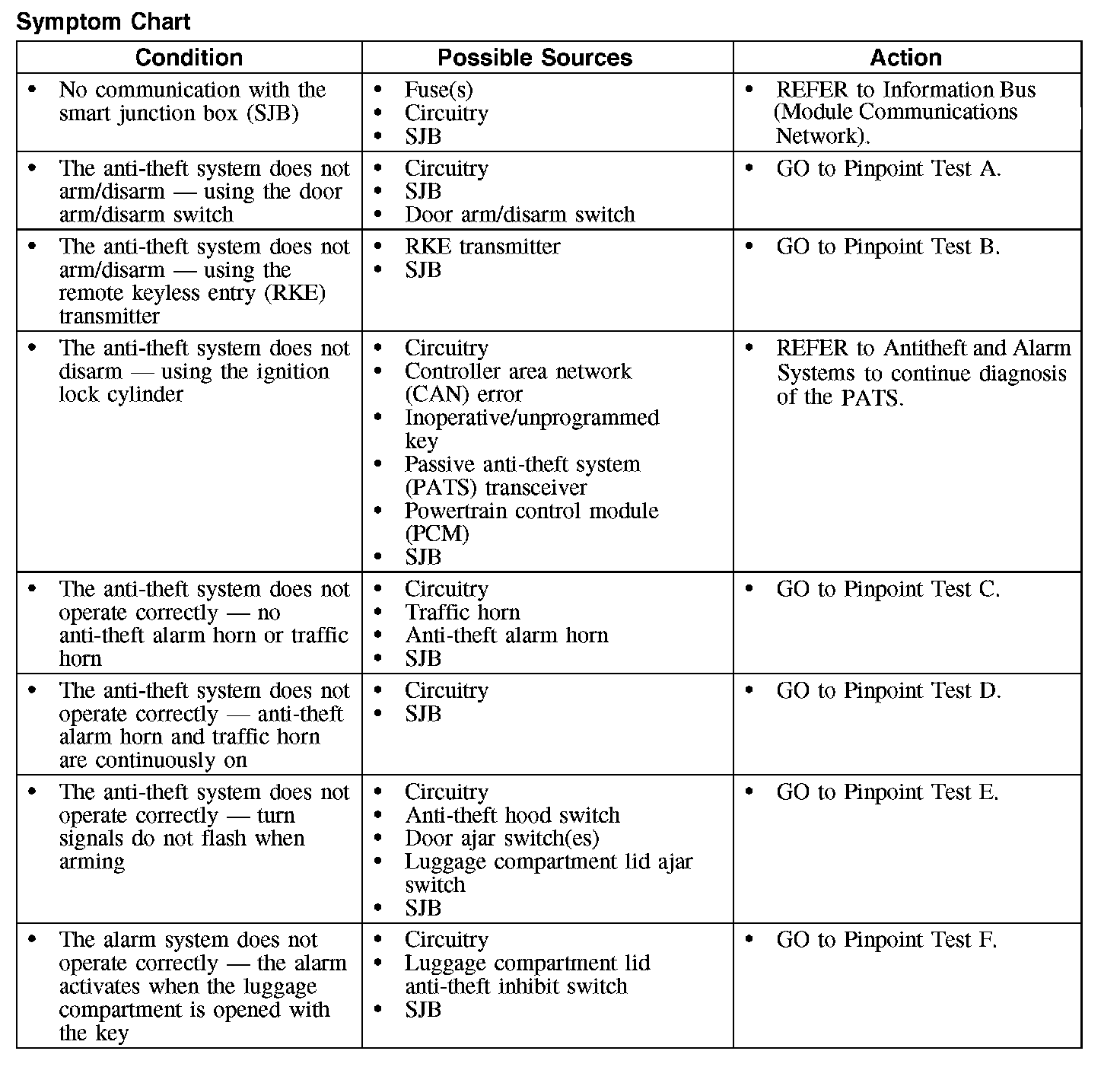

Symptom Chart (Part 1):

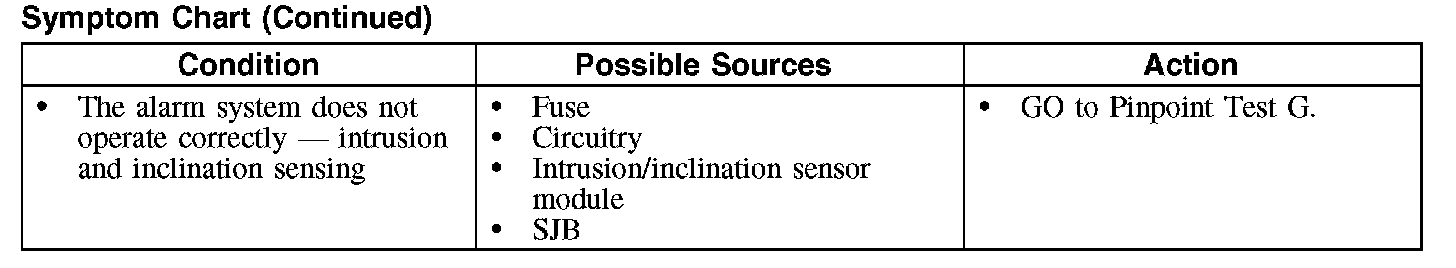

Symptom Chart (Part 2):
