Antenna Cable: Service and Repair

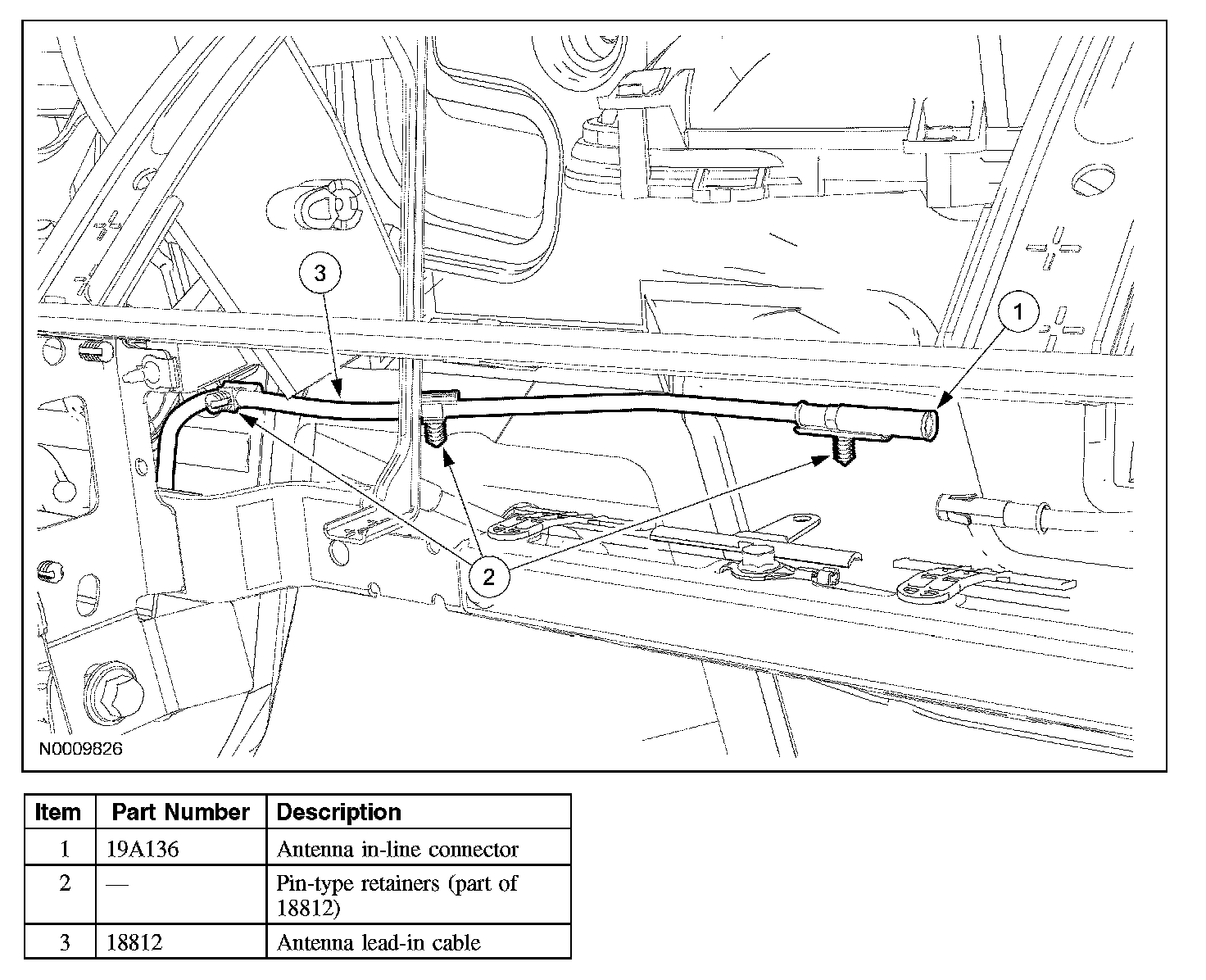

ANTENNA LEAD-IN CABLE







Removal and Installation
1. Remove the audio unit.
2. Lower the glove compartment door.
3. Disconnect the antenna in-line connector.
4. Disconnect the pin-type retainers and remove the antenna lead-in cable.
5. To install, reverse the removal procedure.
