A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
C Code Charts
>>
C1145
C1145

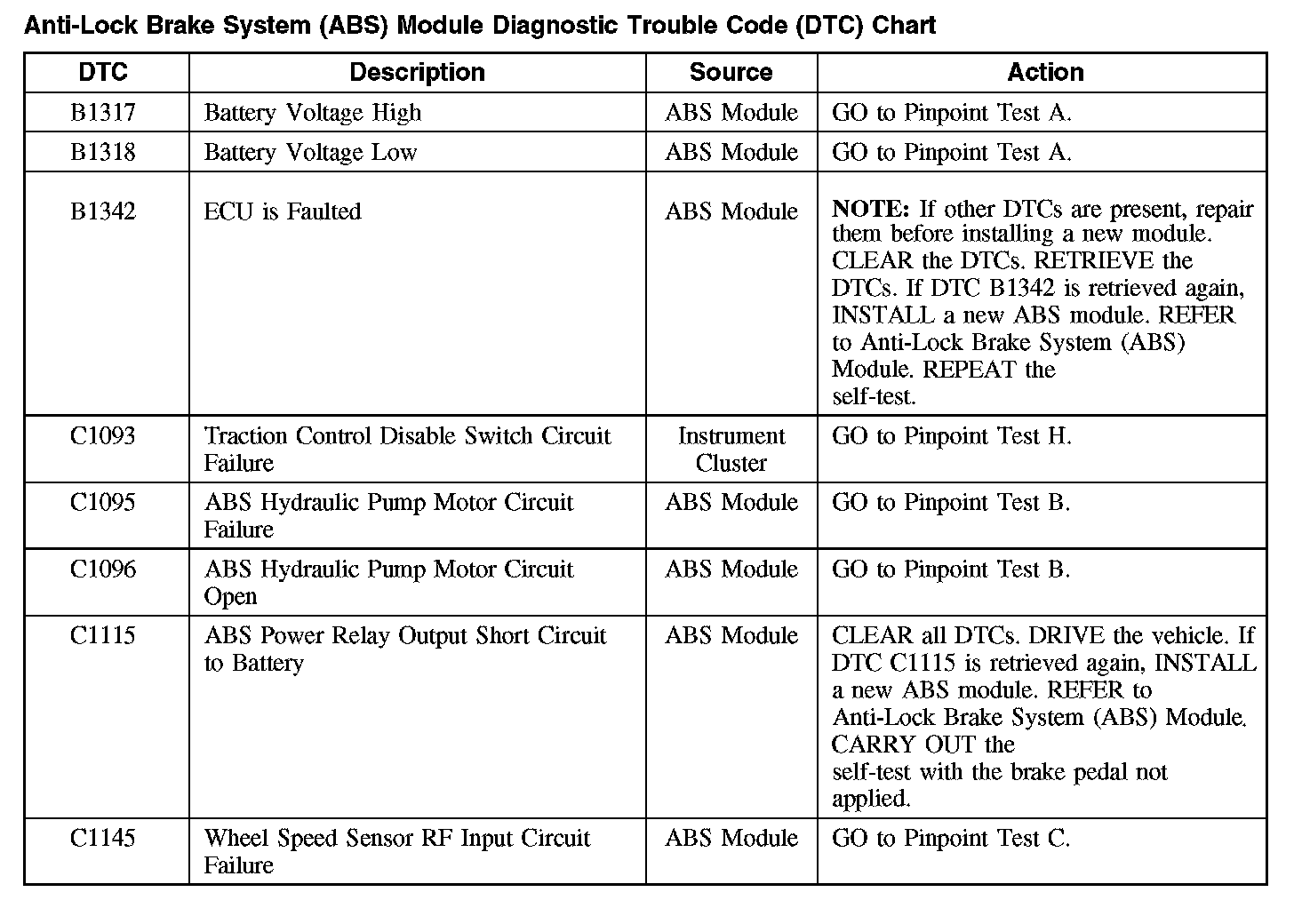

B1317-B1342/C1093-C1145:
