Transmission Speed Sensor: Service and Repair

Output Shaft Speed (OSS) Sensor

Removal and Installation
1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Maintenance/Service and Repair.

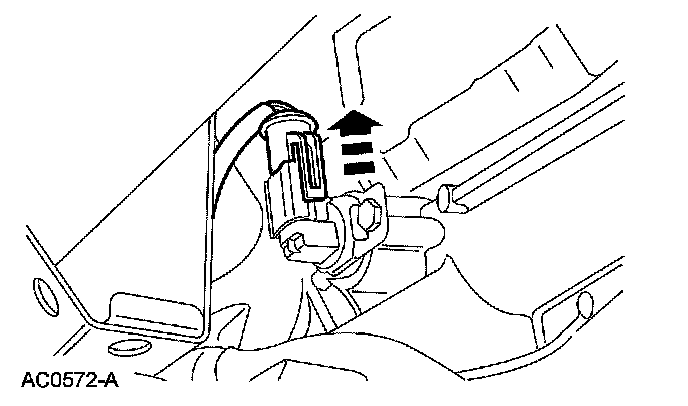

2. Disconnect the electrical connector.

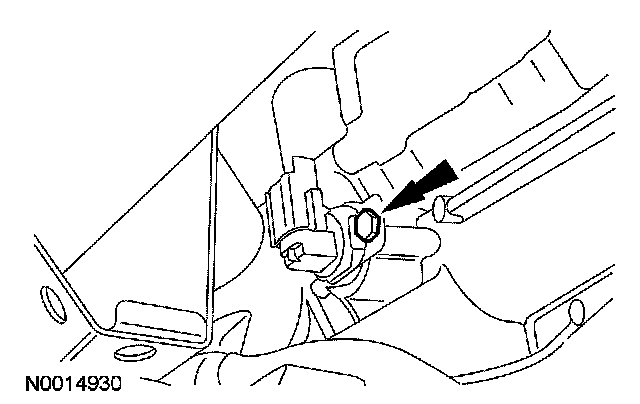

3. Remove the output shaft speed (OSS) sensor.
^ To install, tighten to 10 Nm (89 inch lbs).





4. To install, reverse the removal procedure.
