Installation

Transmission

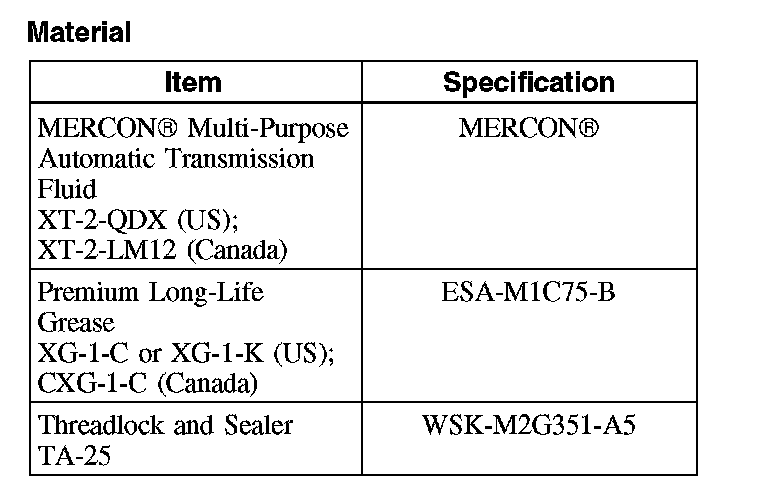

Material:

Installation

1. CAUTION: Align the index marks on the driveshaft flange and pinion flange, and the driveshaft flange and transmission output shaft flange.

NOTE: Insert the clutch hydraulic line into the clutch slave cylinder and install the clip before tightening the transmission-to-engine bolts.

NOTE: Before installing the transmission, the input shaft must be cleaned and lightly lubricated with grease.

NOTE: When installing the transmission with the gearshift lever attached, position the gear shifter into neutral position, so that the shifter will not damage the shift boot.

To install, reverse the removal procedure.
^ Check, and as necessary, fill the transmission with transmission fluid. The total fill capacity is 3.46L (3.65 qt). Apply Threadlock and sealer to the fill plug threads and install the fill plug.
- Tighten to 25 Nm (18 ft. lbs).
^ Fill the brake and clutch reservoir. Bleed the clutch hydraulic system.
