Installation

Transmission

Installation

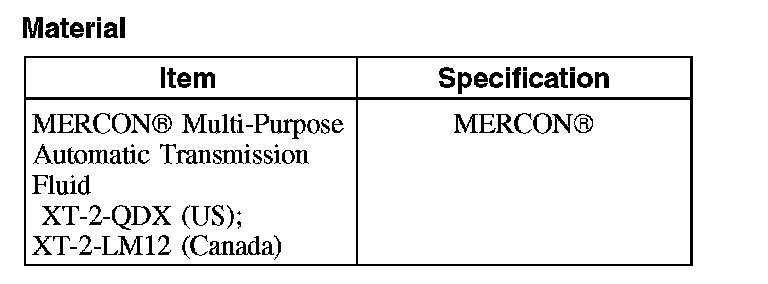

Material:





1. NOTE: Before securing the transmission to the engine, connect the hydraulic line to the clutch slave cylinder.

To install, reverse the removal procedure.
^ Check and as necessary, fill the transmission with the specified fluid. The total fill capacity is 2.6L (2.8 qt).
