Countershaft

Countershaft

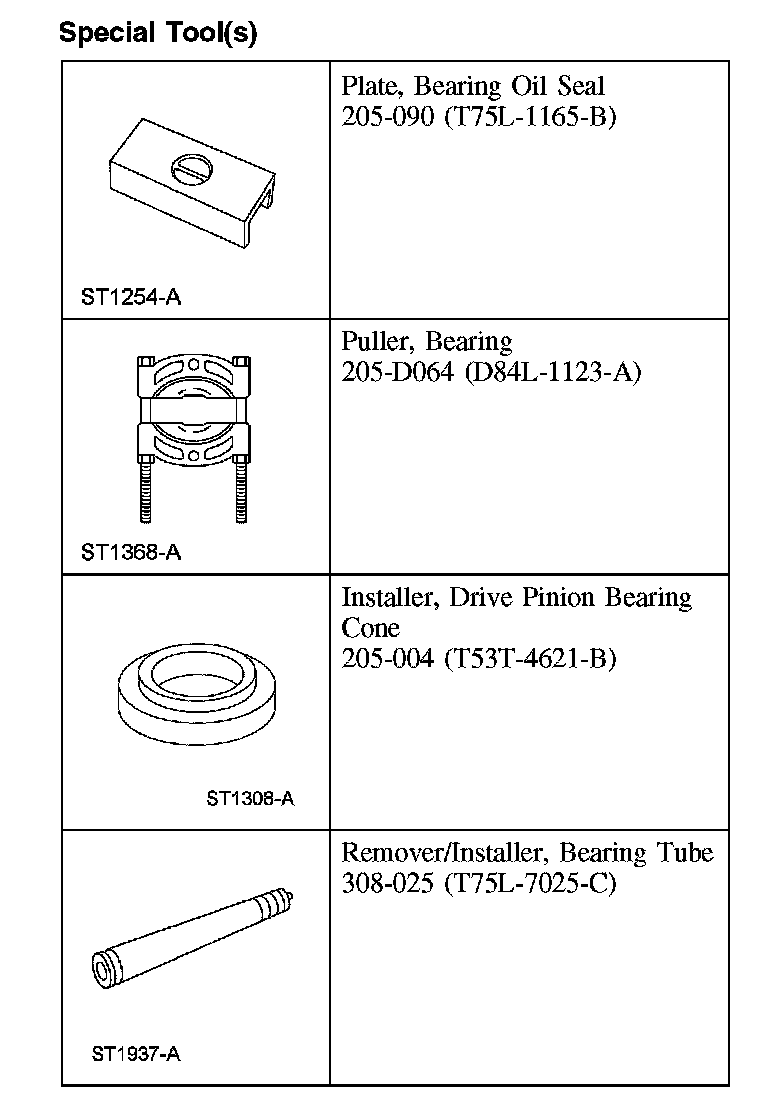

Special Tool(s):

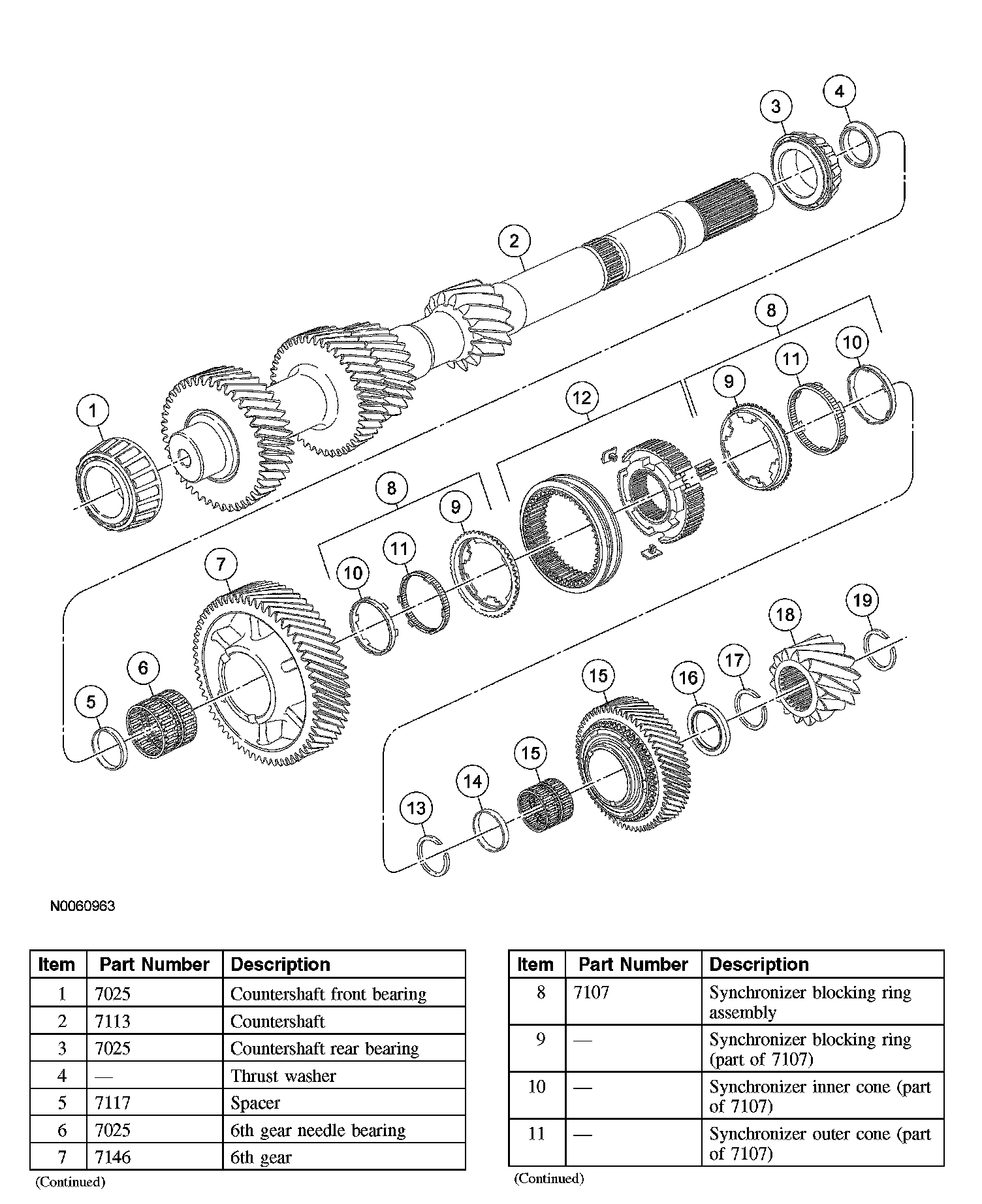

Disassembly and Assembly

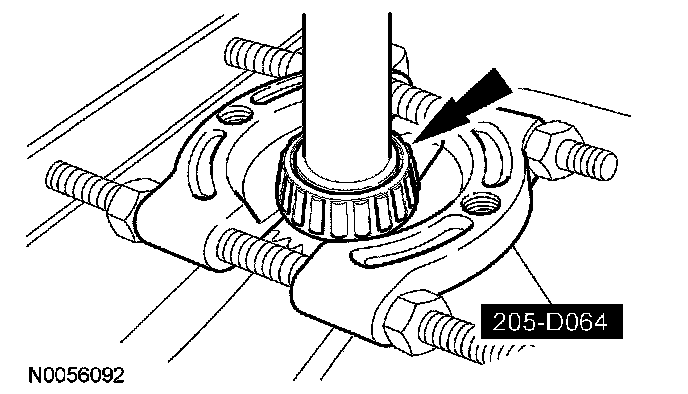

1. Using the special tool and a press, remove the countershaft rear bearing.

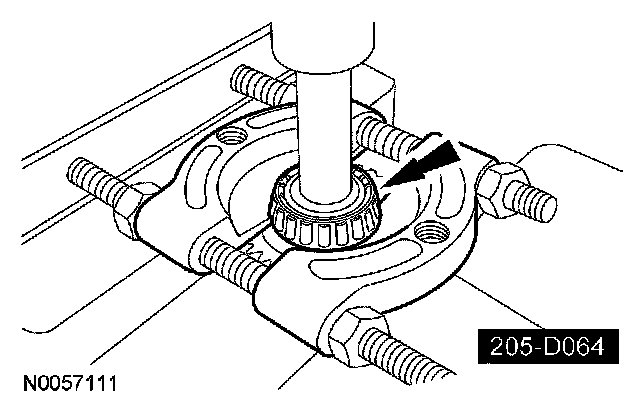

2. Using the special tool and a press, remove the countershaft front bearing.





3. Inspect the countershaft.
^ Check the shaft surface for wear or damage. Install a new shaft as necessary.
^ Check the gear teeth for wear, pitting, scoring, spalling or fractures. Install new components as necessary.

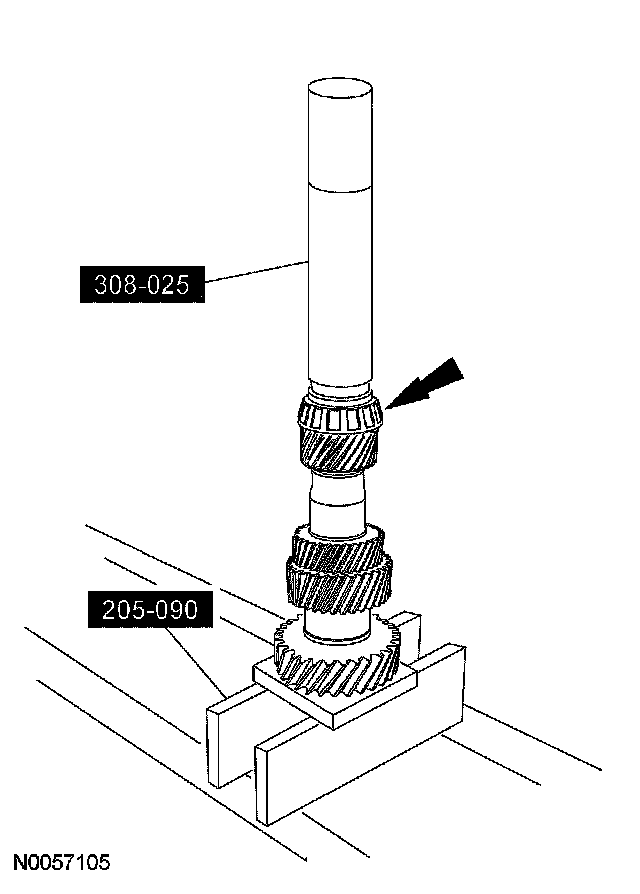

4. Using the special tools, install the countershaft rear bearing.

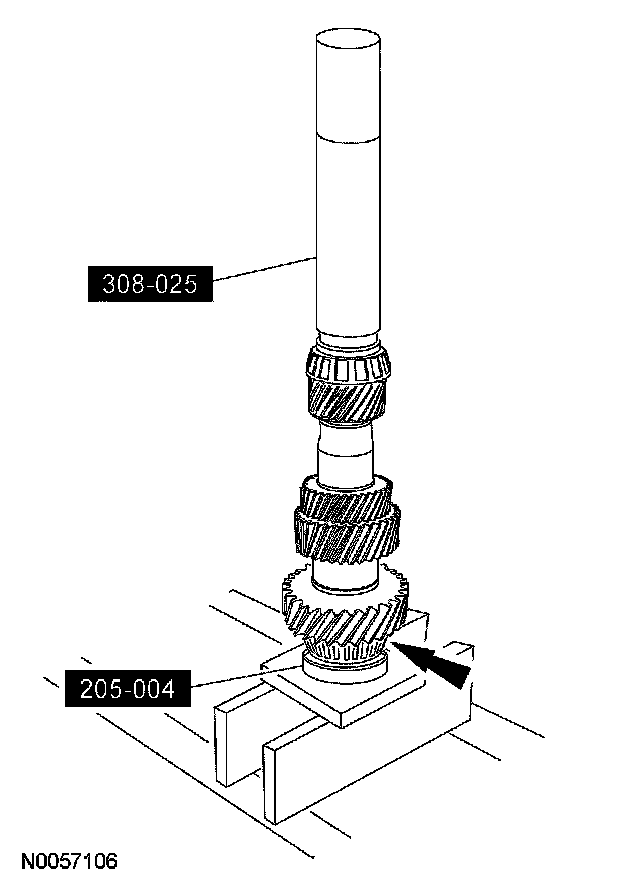

5. Using the special tools, install the countershaft front bearing.
