Input Shaft and Bearing

Input Shaft and Bearing

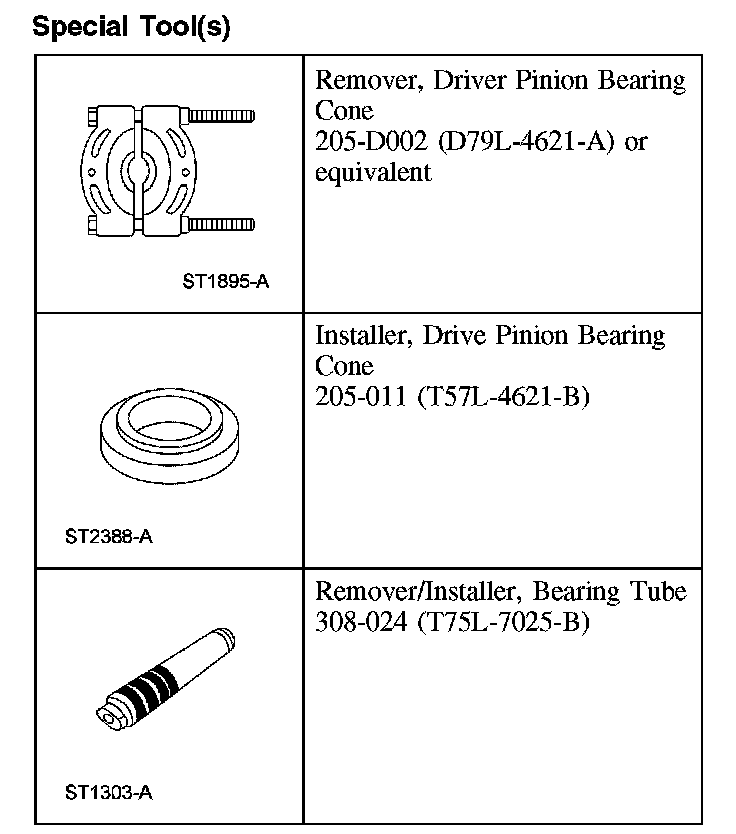

Special Tool(s):

Disassembly and Assembly

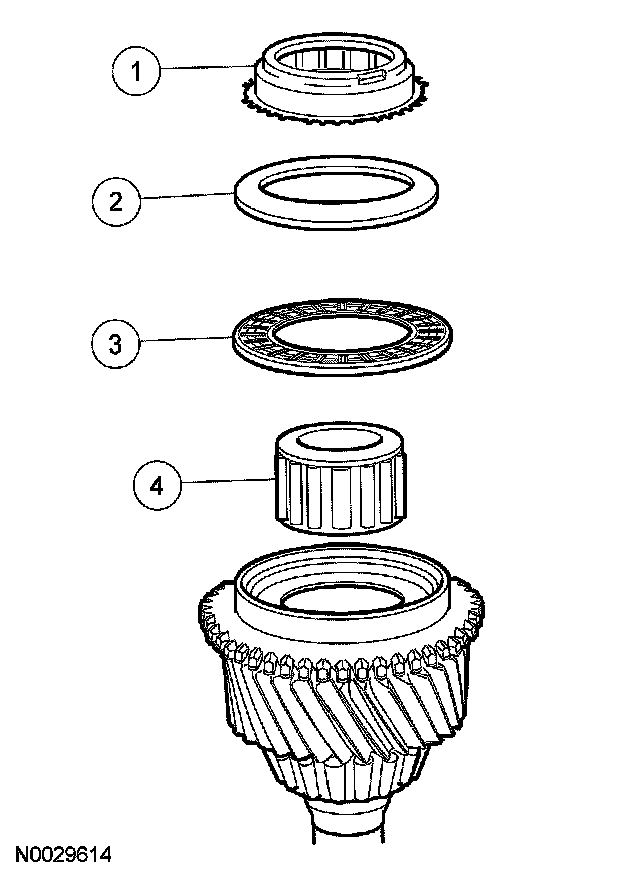

1. Disassemble the input shaft.
1. Remove the 3rd/4th synchronizer blocking ring.
2. Remove the input shaft thrust washer.
3. Remove the input shaft thrust bearing.
4. Remove the input shaft pocket bearing.
^ Inspect all components for wear or damage. Install new components as necessary.

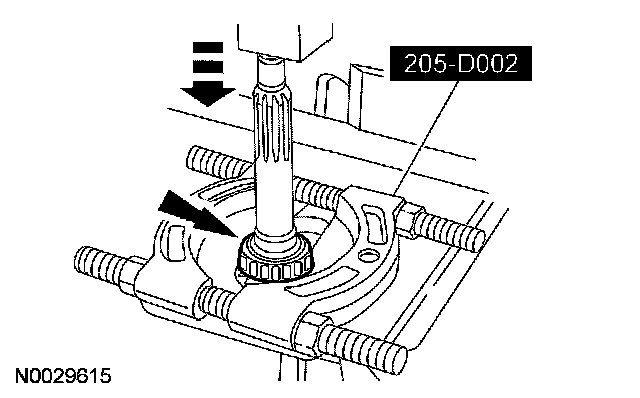

2. Using the special tool and a press, remove the input shaft front bearing assembly. Discard the bearing.





3. Inspect the input shaft and bearings for wear or damage. Install new components as necessary.

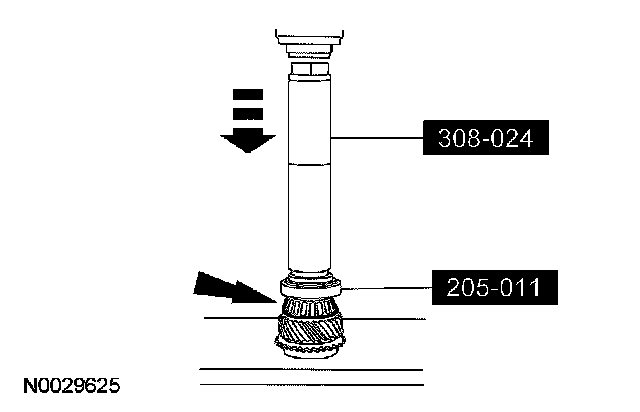

4. Using the special tools and a press, install the new input shaft front bearing.





5. Install the input shaft pocket bearing, the washer, input shaft bearing and the 3rd/4th synchronizer blocking ring.
^ Lubricate the bearing and bearing race with petroleum jelly.
