Countershaft Bearing

Countershaft Bearing

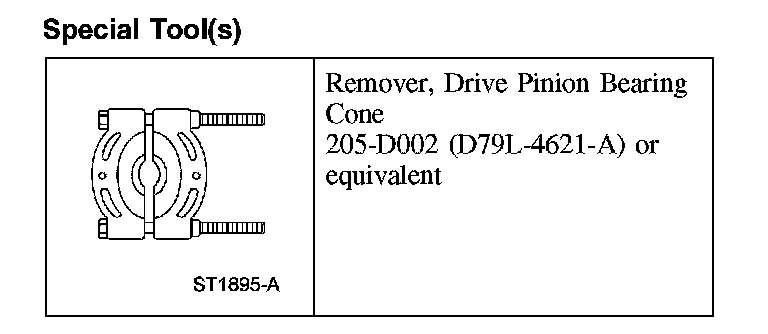

Special Tool(s):

Disassembly and Assembly

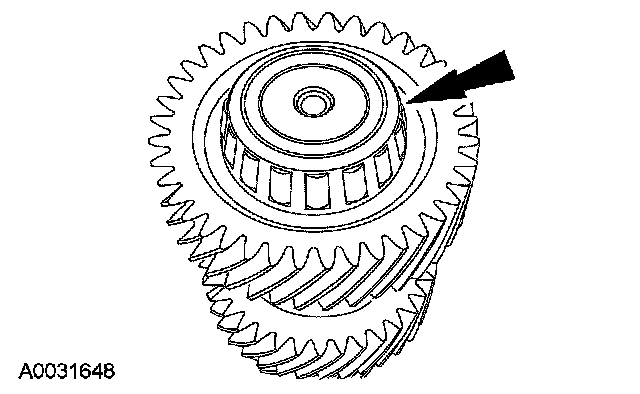

1. Cut the outer cage, then remove the outer cage and rollers.

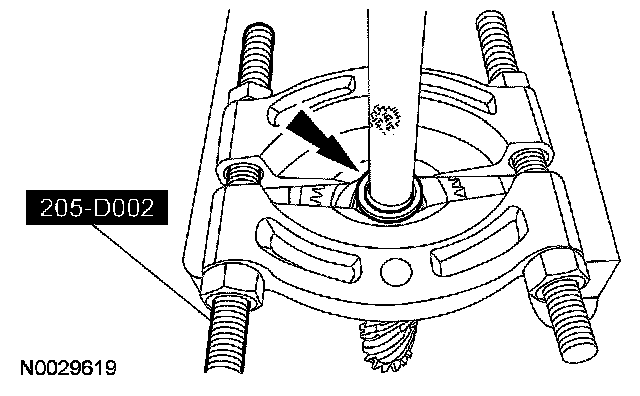

2. Using the special tool and a press, remove the inner bearing.

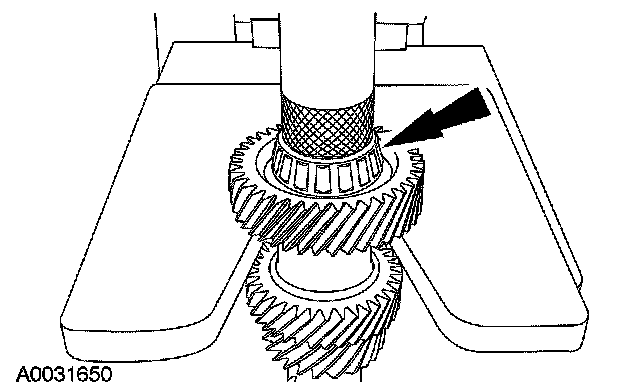

3. Using the special tools, install the new countershaft bearing.
