Input Shaft and Bearing

Input Shaft and Bearing

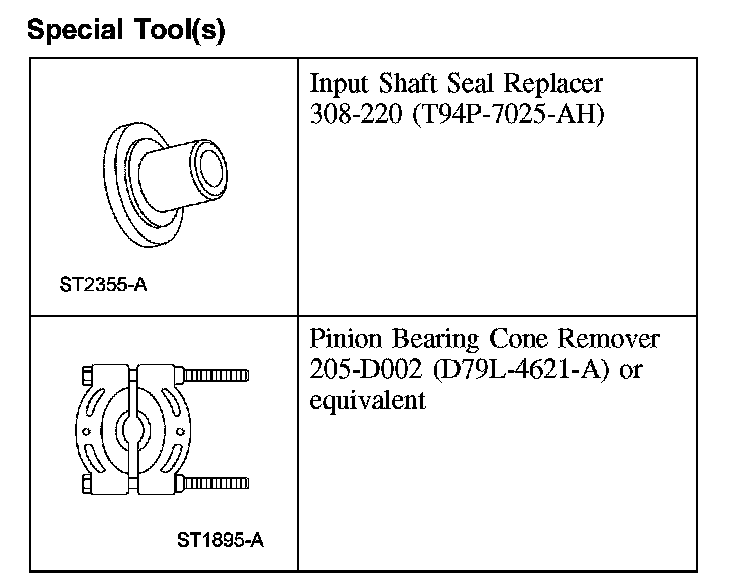

Special Tool(s):

Disassembly

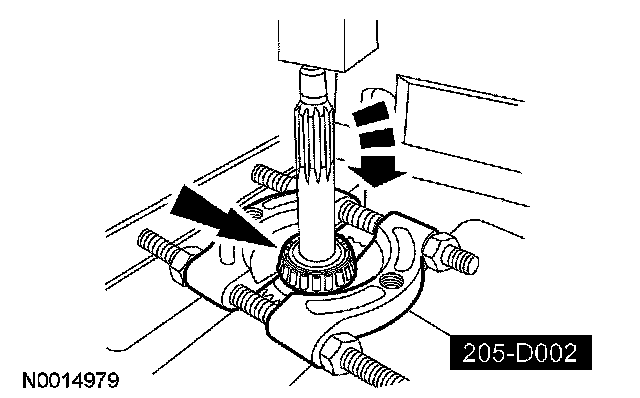

1. Using the special tool and a press, remove the input shaft bearing.

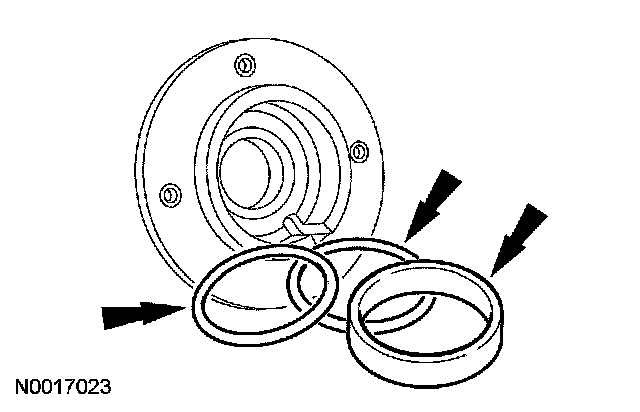

2. Remove the input shaft bearing cup and the end play selective shims.





3. Remove and discard the input shaft seal.

Assembly

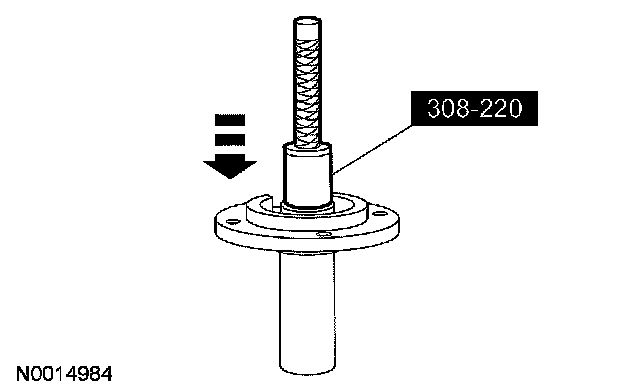

1. Using the special tool, install a new input shaft seal.

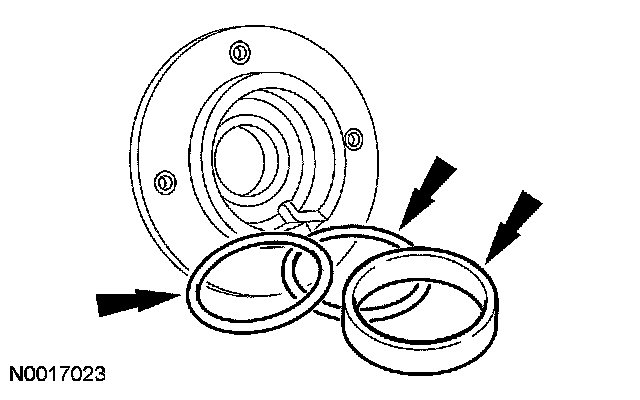

2. NOTE: Do not install the end play selective shims at this time.

Install the input shaft bearing cup.

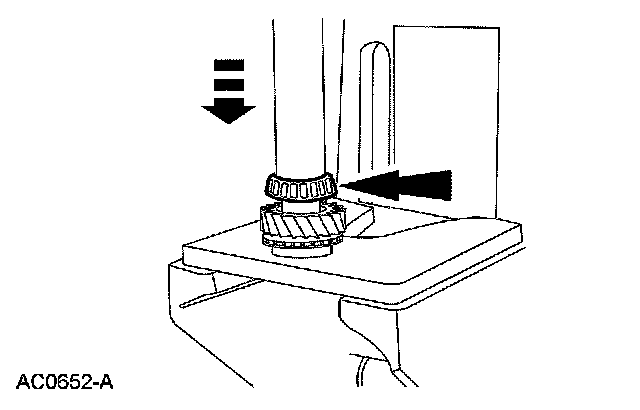

3. Using a press and a capped length of pipe, install the input shaft bearing.
