Countershaft Bearing

Countershaft Bearing

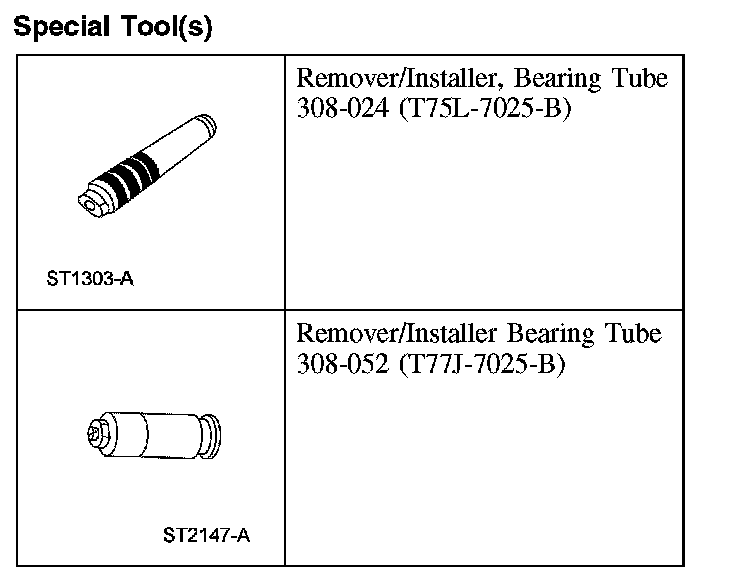

Special Tool(s) (Part 1):

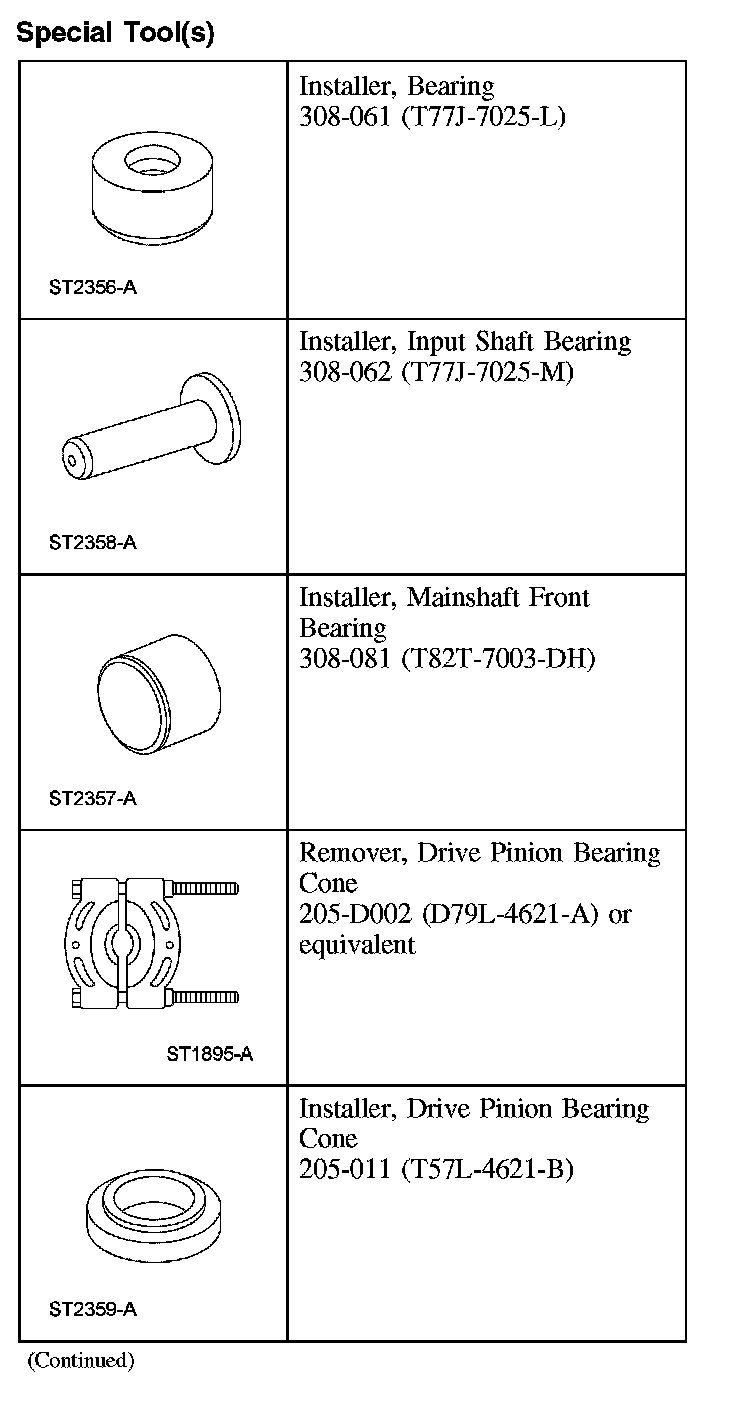

Special Tool(s) (Part 2):

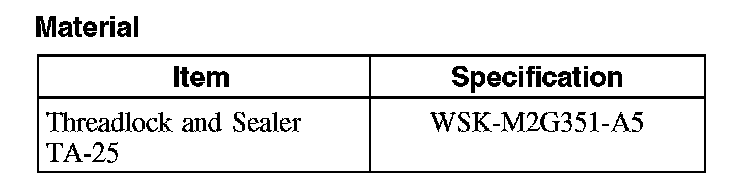

Material:

Disassembly

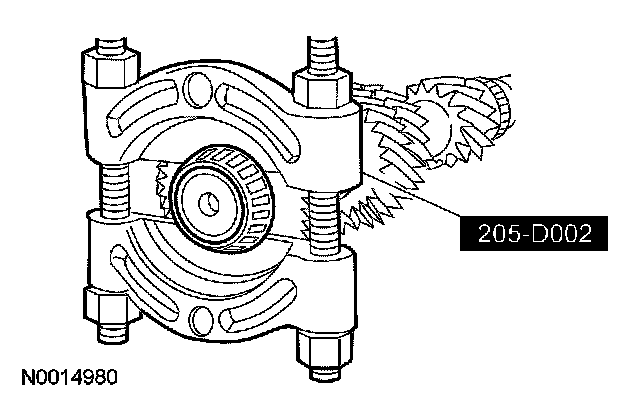

1. Using the special tool, press and remove the countershaft bearing from the countershaft.





2. CAUTION: Failure to correctly support the case during bearing race removal will result in permanent distortion of the case.

NOTE: Remove the front countershaft bearing cup if damaged, worn or a new countershaft bearing is being installed.

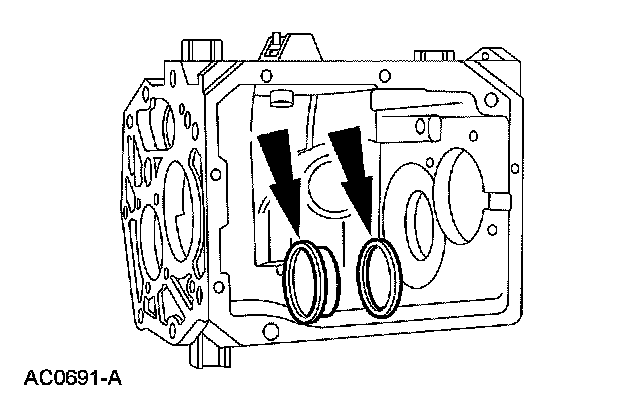

Using the special tools, press and remove the bearing cup and the countershaft front bearing seal from the case.





Assembly

NOTE: Position the countershaft in the transmission case before installing the rear countershaft bearing.

1. Install the countershaft front bearing seal on the bearing cup.





2. Coat the outside diameter of the bearing cup with Threadlock.

3. CAUTION: Failure to correctly support the case during bearing race installation will result in permanent distortion of the case.

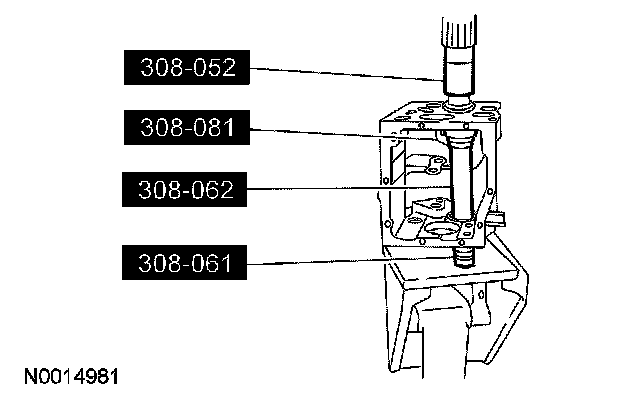

Using the special tools and a press, install the bearing cup.





4. Using the special tool and a press, install the front countershaft bearing.
